Pneumatic Drilling Rig For Agriculture Irrigation 180m Water Borehole Drilling

Large Image : Pneumatic Drilling Rig For Agriculture Irrigation 180m Water Borehole Drilling

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 180 Pneumatic Drilling Rig	Drilling Depth:	180 Meters
Length Of Drill Pipe(mm):	3m	Color:	Red Yellow Blue
Feature:	High Drilling Efficiency	Usage:	Water Well,exploration,soil Testing
Power Type:	Diesel	Warranty:	1 Year
Voltage:	220V/380V	Drilling Depths:	180 Meters
Highlight:	rubber crawler mounted pneumatic drilling rig , agriculture irrigation pneumatic drilling rig , 180m equipment for borehole drilling

ST 180 Pneumatic Drilling Rig for Agriculture Irrigation (180m Water Borehole Drilling)

Product Specifications

Product Name	ST 180 Pneumatic Drilling Rig
Drilling Depth	180 meters
Drill Pipe Length	3m
Color Options	Red, Yellow, Blue
Key Feature	High Drilling Efficiency
Applications	Water Well, Exploration, Soil Testing
Power Type	Diesel
Warranty	1 Year
Voltage	220V/380V

Product Overview

The ST 180 Rubber Crawler Mounted Pneumatic Drilling Rig offers exceptional drilling performance with speeds of 20-40m per hour. Powered by a 63kw engine, this rig delivers powerful performance suitable for various applications including industrial and civil construction, railway projects, hydropower installations, transportation infrastructure, bridge construction, and dam foundation work.

Technical Specifications

Item NO.	ST-180	Air Consumption (m³/min)	17-31
Weight (T)	4.5	Equipped Capacitor (Kw)	55
Dimensions (mm)	3800×1550×2350	Swing Speed (rpm)	45-65
Hole Diameter (mm)	140-254	Swing Torque (N.m)	3200-4600
Drilling Depth (m)	180	Drill Pipe Diameter (mm)	76, 89
Once-time Advance Length (m)	3.3	Drill Pipe Length (m)	1.5, 2.0, 3.0
Walking Speed (Km/h)	2.5	Rig Lifting Force (T)	10
Climbing Angles (Max.)	30	Supporting Power	29m³/min 23BAR AIR COMPRESSOR
Using Air Pressure (Mpa)	1.7-2.5

Key Advantages

Oil pressure automatic feeding mechanism improves drilling efficiency and reduces worker labor intensity
Ball clamp clamping mechanism with positioning for rod reversing without stopping the machine
Pressure gauge at the bottom of the hole to monitor conditions
Centralized handle for easy operation
Compact structure with drill rig and power machine on same base for small footprint
Lightweight with strong decomposability for easy movement in plains or mountains
Safety shield included for enhanced operator protection
Fixed nuts at feed cylinder connection improve drill reliability

Courtyard Drilling Considerations

Well Depth: Investigate underground facilities before drilling and ensure depth is reasonable.

Water Quality: Use charcoal to absorb toxins and test water with fish after drilling.

Safety: Keep well above ground level with proper cover to prevent contamination and accidents.

Frequently Asked Questions

Q: What kind of drilling rigs do you offer?

A: We manufacture small hydraulic drilling rigs, water well drilling rigs, core drilling rigs, engineering drilling rigs, and geological exploration drilling rigs. We recommend the most suitable model based on your specific requirements.

Q: Where is your company located?

A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China.

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with 20 years of experience, ISO certification, and a large modern drilling rig plant in Hebei, China.

Q: What is your delivery time?

A: Small hydraulic drilling rigs typically take 5-7 days, while large pneumatic water well drilling rigs take 7-15 days. Contact us for urgent orders.

Q: What is your warranty policy?

A: The whole machine (excluding consumable spare parts) has a 1-year warranty.

Q: How long does your air compressor last?

A: Typically more than 10 years with proper maintenance.

Q: What payment methods do you accept?

A: We accept TT (Telegraphic Transfer) and Western Union.

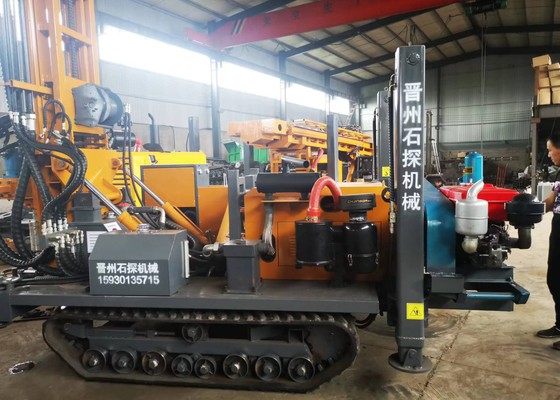

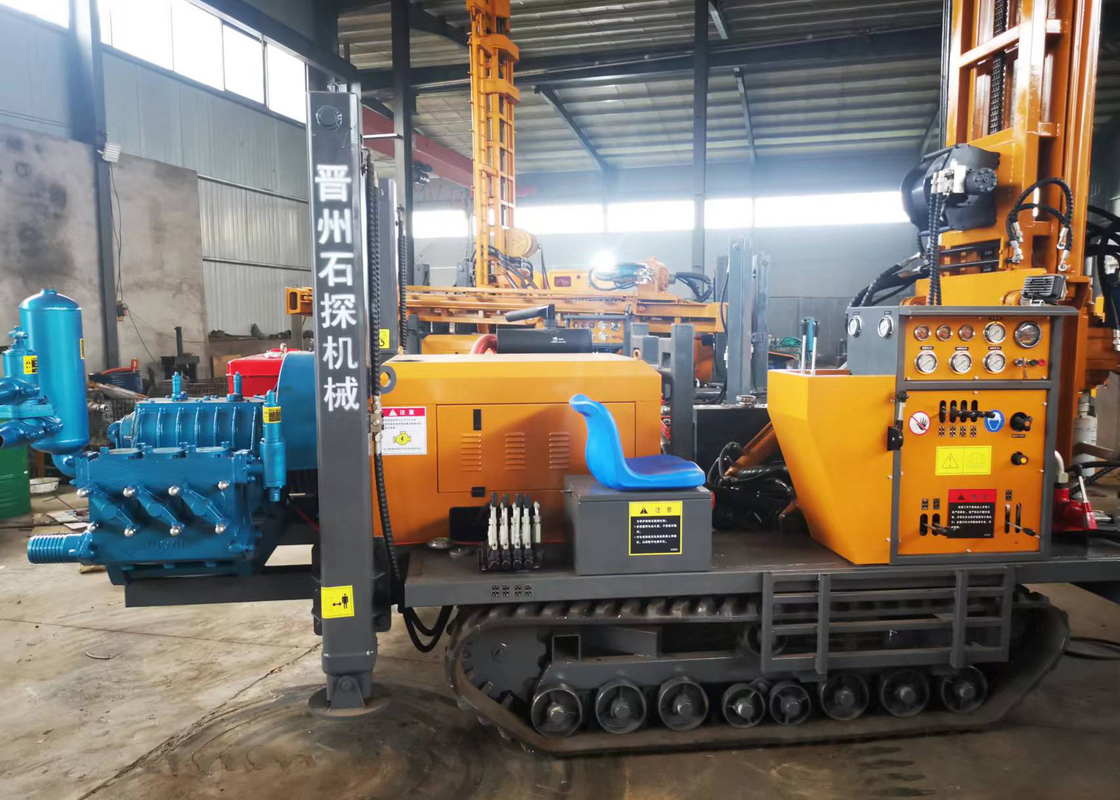

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
