High Outriggers Pneumatic Drilling Rig Dth Rocky 350 Meters Borehole

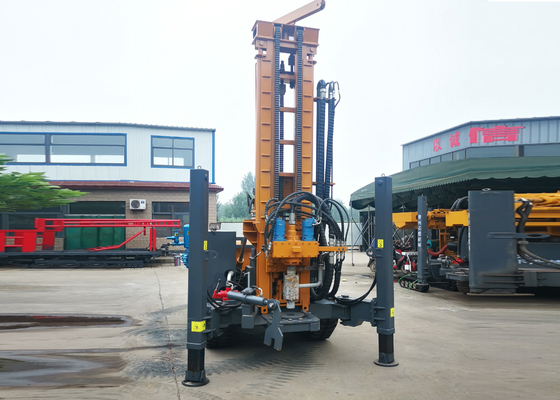

Large Image : High Outriggers Pneumatic Drilling Rig Dth Rocky 350 Meters Borehole

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-350

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	20000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 350 Pneumatic Drilling Rig	Model:	Steel Crawler Mounted Drilling Rig
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	350meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	After Sale Service:	Video Support
Highlight:	high outriggers pneumatic drilling rig , 350 meters pneumatic drilling rig , 350 meters borehole drilling equipment

ST 350 Pneumatic Drilling Rig - High Outriggers DTH Rocky 350 Meters Borehole

Product Overview

The ST 350 large pneumatic water well drilling rig is a high-efficiency drilling machine designed for water conservancy and industrial applications. With a theoretical drilling depth of 350 meters, this integrated system combines a standard air compressor with the drilling rig for powerful performance and convenient mobility.

Key Specifications

Attribute	Value
Model	Steel crawler mounted drilling rig
Certification	ISO9000
Drilling Depth	350 meters
Hole Diameter	152mm-305mm (Customizable)
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption	16-30 M3/min, 20-100m3/min

Technical Features

Automatic oil pressure feeding mechanism enhances drilling efficiency and reduces labor
Ball clamp clamping mechanism allows rod reversal without stopping operations
Equipped with hole bottom pressure gauge for real-time monitoring
Centralized handle design for easy operation
Compact structure with integrated drilling rig, water pump and diesel engine
Lightweight with strong decomposability for easy movement across various terrains
Crawler-mounted design with high base gear for navigating uneven terrain
Automatic hydraulic system ensures safe and reliable operation

Packaging Details

Drilling rig secured with steel wire ropes for safe transportation
Screw air compressor firmly fixed with steel wire ropes
Drilling tools packed in reinforced wooden cases
Drill rods secured on pallets for protection

Operation Notes

During drilling operations, consider the specific water output requirements as they affect well hole structure design, depth, and diameter. Proper equipment layout and placement adjustments are crucial for optimal performance and satisfactory results.

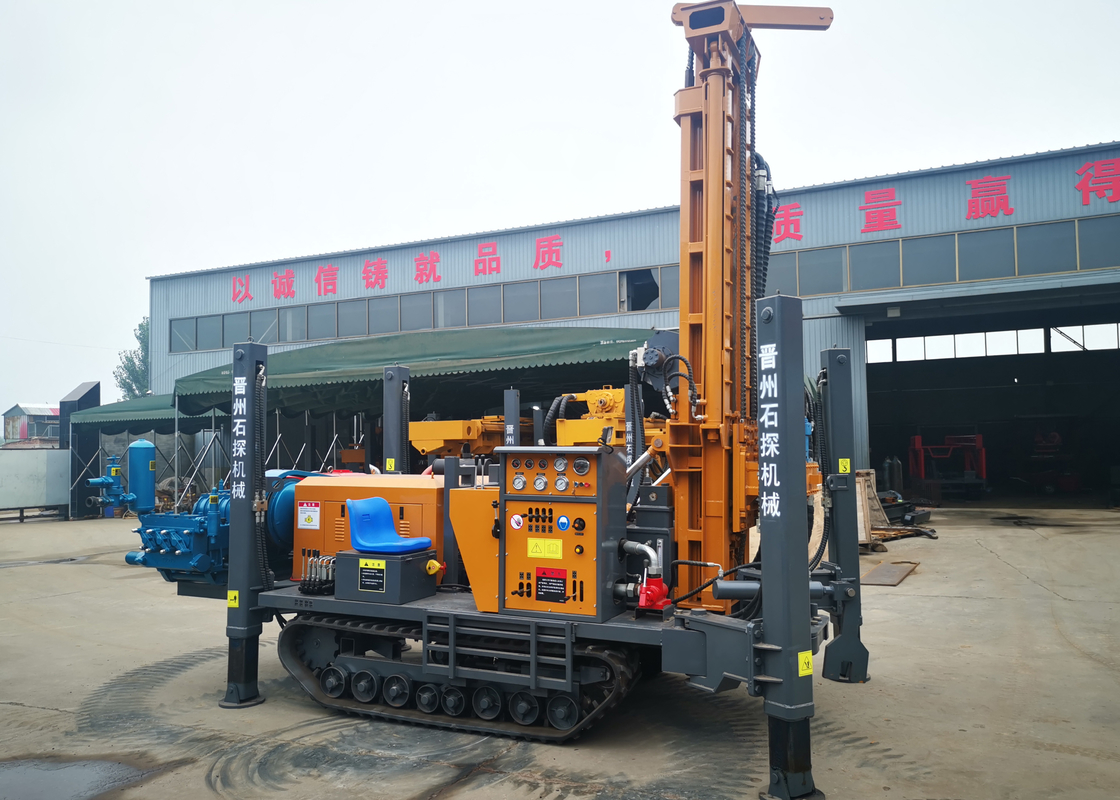

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
