Diamond Core Tractor Mounted Borewell Machine 150 Meters

Large Image : Diamond Core Tractor Mounted Borewell Machine 150 Meters

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7 days
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets /month

Contact Now

Detailed Product Description

Product Name:	Diamond Core Investigation 150 Meters Engineering Drilling Rig Equipment	Power Type:	Diesel / 13.3kw
Model Number:	XY-1A	Drill Depth:	150m
Usage:	Water Well	Color:	Yellow,Yellow Or As Your Rquest
Application:	Geological Exploration	Drilling Angle:	90 ~75°
Drilling Diameter:	Customized	Dimensions:	1100600500mm, 6006502330mm,
Warranty:	12 Months	After-sales Service Provided:	Video Technical Support
Highlight:	diamond core investigation engineering drilling rig , 150 meters engineering drilling rig , 150 meters engineering drill rig

Diamond Core Tractor Mounted Borewell Machine 150 Meters

Product Specifications

Attribute	Value
Product Name	Diamond Core Investigation 150 Meters Engineering Drilling Rig Equipment
Power Type	Diesel / 13.3kw
Model Number	XY-1A
Drill depth	150m
Usage	Water Well
Color	Yellow or as per request
Application	Geological Exploration
Drilling angle	90° ~75°
Drilling Diameter	Customized
Dimensions	1100600500mm, 6006502330mm
Warranty	12 months
After-sales service	Video technical support

XY-1A Engineering Drilling Rig Introduction

The XY-1A Core Drilling Rig is a lightweight, high-speed machine with hydraulic feeding. Designed based on the XY-1A model, it features hydraulic feeding, high-speed torque belt, and portability with pump.

Technical Specifications

Parameter	Unit	Value
Engine Drilling depth	m	150
Drilling hole diameter soil/rock	mm	150
Power	kw	13.2
Single lifting speed	m/s	0.41-1.64
Single lifting force	kg	2000
Rope capacity	m	27
Mud pump flow	L/min	95
Max. Pressure	Mpa	1.2
Reciprocate times	times/min	93

Key Advantages

Oil pressure feeding mechanism improves drilling efficiency and reduces worker fatigue
Equipped with ball clamping mechanism and hexagonal active drill pipe
Pressure gauge at bottom of hole indicates pressure for better control
Centralized handle for easy operation
Compact, lightweight design suitable for plains and mountainous areas

Core Tube - Coring Tool

The single pipe drilling tool features a simple structure and convenient processing. It's a common coring tool for hard alloy and steel particle drilling. The flushing liquid is sent into the core pipe by the drill pipe, directly impacting the top of the core. This design is best suited for relatively complete and stable formations.

Why Choose Our Drilling Rigs?

Double wheel support structure with keeping bracket can withstand strong blows
Vertical box with four bearings ensures rigidity for complex geological conditions
National patent technology taper clutch provides strong transmission torque
46x51 active drill rods offer high rigidity and strong delivery torque

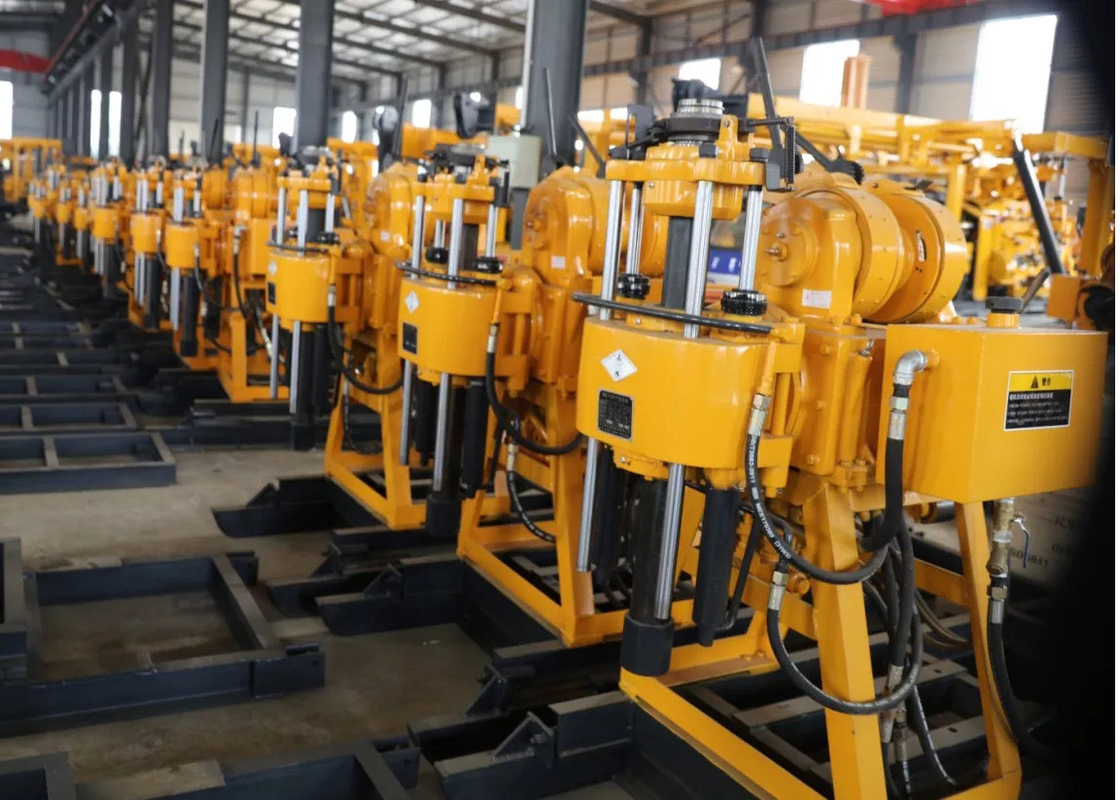

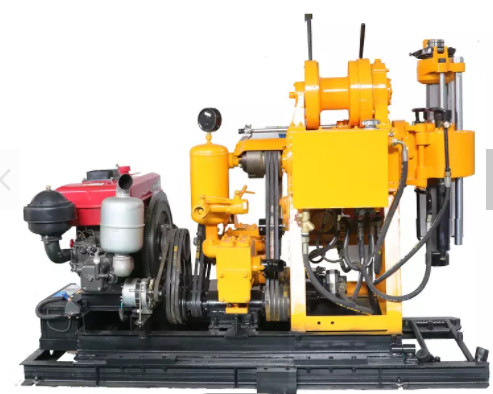

Product Images
