450m Crawler Hydraulic Rotary Drilling Rig Diesel Engine Driven Dth

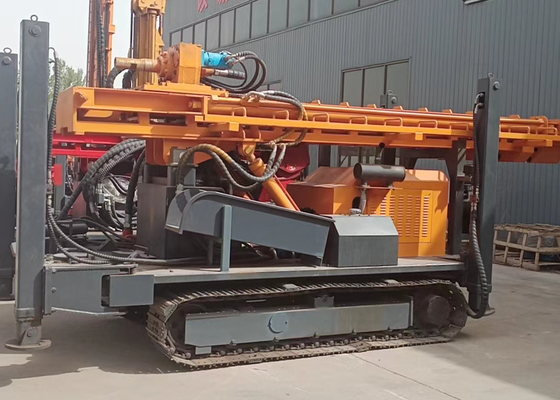

Large Image : 450m Crawler Hydraulic Rotary Drilling Rig Diesel Engine Driven Dth

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST400

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	L/C,D/A,T/T,Western Union

Contact Now

Detailed Product Description

Type:	Hydraulic Crawler Drilling Machine	Max. Drilling Depth:	400
Dimension(LWH):	6m×2m×2.5m	Power Type:	89
Usage:	Water Well	Feature:	High Drilling Efficiency
Drilling Diameter:	105-300mm	Rod Length:	6M
Lifting Force:	22T	Fast Lifting Speed:	24m/min
Highlight:	crawler mounted borehole drilling machine , diesel engine driven borehole drilling machine , 450m water borehole drilling machine

450m Crawler Hydraulic Rotary Drilling Rig Diesel Engine Driven DTH

Key Specifications

Attribute	Value
Type	hydraulic crawler drilling machine
Max. Drilling depth	400m
Dimension (L×W×H)	6m × 2m × 2.5m
Power Type	89
Usage	Water Well
Drilling diameter	105-300mm
Rod length	6M
Lifting force	22T
Fast lifting speed	24m/min

Product Overview

The pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata. This hydraulic drilling machine can be used with air compressor, and can be equipped with mud pump and foam pump as needed. It requires different drilling tools such as drill rods, hammers, and rock drill bits.

Technical Parameters

Parameter	Specification
Model	ST400
Drilling Diameter	105-300mm
Drilling Depth	400m
One-time Advance Length	3000/6000mm
Walking Speed	6km/h
Climbing Ability	25°
Min. Ground Clearance	300mm
Working Air Pressure	1.7-3.5Mpa
Air Consumption	17-35m³/min
Main Power	100KW/6 Cylinder
Rotation	45-75rpm
Rotary Torque	9000-10000N.m
Total Weight	10T

Applications & Features

This multifunctional drilling rig can be used with air compressor, mud pump, or dry hydraulic drilling method. Suitable for various applications including:

Industrial and agricultural water projects
Test wells and exploration boreholes
Geothermal heating installations
Engineering foundation reinforcement
Drilling in loose gravel and rock formations

Features high drilling efficiency, low failure rate, economic durability, and excellent cost performance.

Maintenance Guidelines

Regularly check lubricating oil condition in the wind motor
Inspect water/gas pipelines and all bolt connections
When working in water, use large-diameter drill head to keep drill pipe 1-2m above water surface
Avoid reverse rotation during operation to prevent drill pipe loss
For short stops, maintain minimal air pressure to prevent sediment ingress
For long stops, thoroughly inspect impactor and reducer before restarting

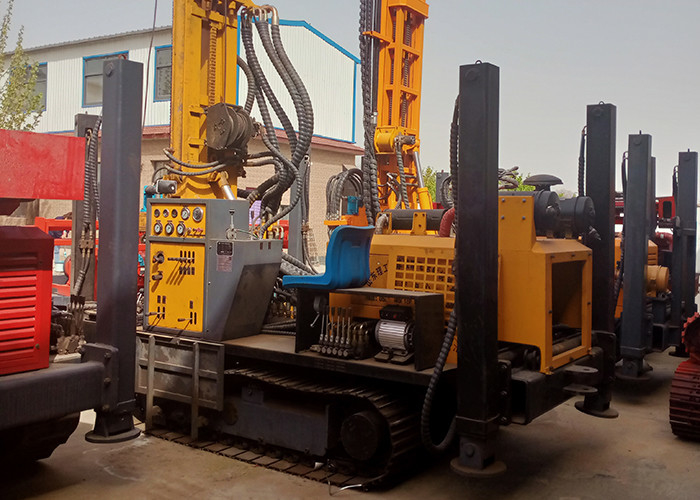

Product Gallery
