200 Meters High Drilling Speed Deep Underground Water Well Pneumatic Drilling Rig

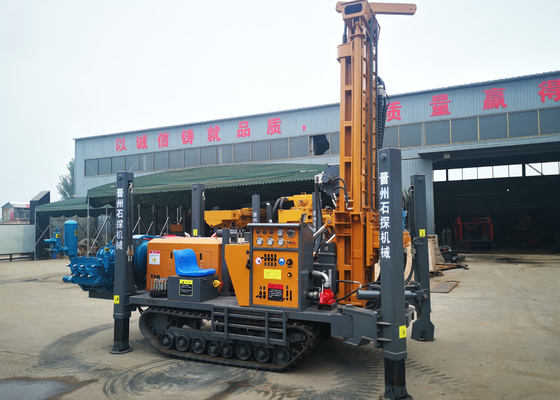

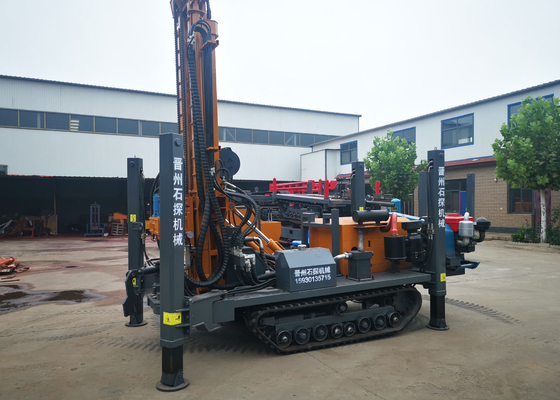

Large Image : 200 Meters High Drilling Speed Deep Underground Water Well Pneumatic Drilling Rig

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	200 Meters High Drilling Speed Deep Underground Water Well Pneumatic Drilling Rig	Model Number:	Crawler-mounted Drilling Rig
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	Color:	Yellow,Red And Blue
Highlight:	200 meters crawler mounted drill rig , high speed crawler mounted drill rig , deep underground water well pneumatic rig

200 Meters High Drilling Speed Deep Underground Water Well Pneumatic Drilling Rig

Product Specifications

Attribute	Value
Model Number	Crawler-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
Color	Yellow, Red and Blue

ST 200 Pneumatic Drilling Rig Introduction

The ST 200 drilling rig is designed for 200 meters drilling depth, ideal for water wells, irrigation wells, ground source heating pump wells, and other borehole applications. This rig excels in mountain and rock formation projects and can operate in various geological layers.

Technical Specifications

Model	Shitan ST 200
Condition	New
Drilling Depth	200 Meters
Power	Diesel
Origin	China
Brand Name	Shitan
Usage	Water Well Drilling
Dimension (LWH)	6400MM2250MM2700MM
Weight	5800KG
Certification	ISO9000
Warranty	1 YEAR
Marketing Type	Large Pneumatic
Hole Diameter	90-200mm
Depth	25M
Rotary Speed	0-90rpm
DTH	K40
Drilling Rods	762m+763m
Air Consumption	13-20m3/min
Travelling Speed	0-2.5km/h

Key Features

Lightweight, efficient, and versatile drilling equipment
Ideal for wells, irrigation systems, geothermal applications, and air holes
Excels in mountain and rock formation water engineering
Handles different geological formations with drilling diameter up to 245mm
Advanced hydraulic technology with high torque hydraulic motor rotation
Branded multi-cylinder engine with two-stage air filtration system
Unique pump design for easier maintenance and reduced costs
Centralized hydraulic control console for simplified operation

Rainy Season Drilling Considerations

After completing a well, pumping tests should be conducted to verify results. A large drawdown pumping test should maintain stable water levels for at least eight hours while measuring flow rates. Construction sites must ensure proper drainage, making rainy seasons less ideal for drilling operations. Excavation slopes should be determined based on soil properties, typically at a 1:1.5 ratio, with adequate distance between spoil slopes and excavation openings. For wells with shaft wall water inflow, proper inlet hole and filter layer arrangements are critical to prevent blockages during construction.

Water Well Drilling Best Practices

Conduct preliminary drilling to sample and create a structural diagram (histogram)
Design well pipes and filters based on geological structure with minimum 300mm drilling diameter
Ensure proper backfilling (1.8-2.0 m3) with siliceous sandy pebble filter material (20-40mm particle size)
Maintain well pipe verticality without tilting
Use 8mm thick polyethylene pipes with 18-20mm drilled holes (≥25% drilling rate)
Secure filter screens (25 mesh) with proper overlapping and fastening
