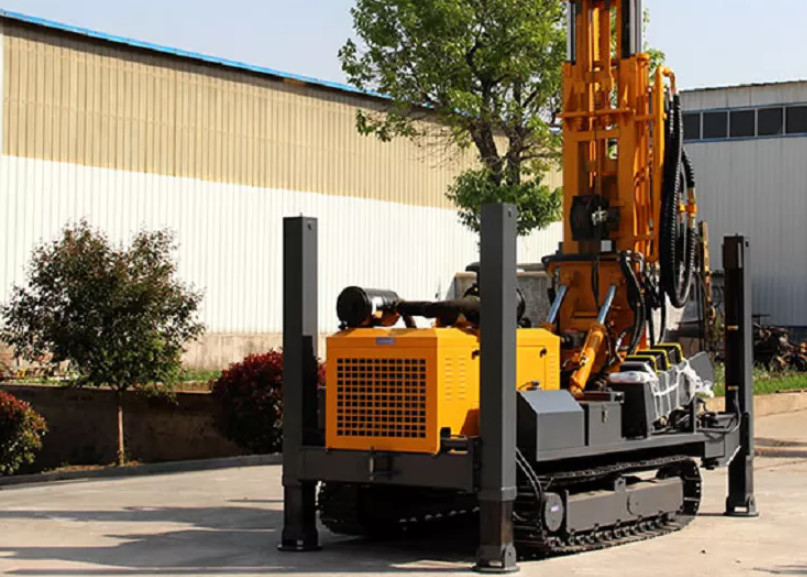

Geothermal Pneumatic Drilling Rig 180 Meters Depths For Rocky Layers

Large Image : Geothermal Pneumatic Drilling Rig 180 Meters Depths For Rocky Layers

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T,Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	Geothermal 180 Meters Depths Hard Stone Large Pneumatic Drilling Rig ST 180	Color:	Red Yellow
Feature:	High Drilling Efficiency	Usage:	Water Well,exploration,soil Testing
Application:	Water Well Drilling	Power Type:	Diesel Engine
Drilling Depth:	180 Meters	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Condition:	New	Drilling Depths:	180 Meters
Highlight:	geothermal pneumatic drilling rig , 180 meters depths pneumatic drilling rig , geothermal pneumatic rig

Geothermal Pneumatic Drilling Rig 180 Meters Depths For Rocky Layers

Product Specifications

Attribute	Value
Product Name	Geothermal 180 Meters Depths Hard Stone Large Pneumatic Drilling Rig ST 180
Color	Red Yellow
Feature	High Drilling Efficiency
Usage	Water Well, exploration, soil testing
Application	Water Well drilling
Power Type	Diesel Engine
Drilling depth	180 meters
Warranty	1 Year
Voltage	220V/380V
Length of drill pipe	3m
Condition	New

Product Introduction

The ST 180 is a new, highly-effective, energy-saving and multifunctional hydraulic drill specialized in drilling wells, monitoring wells, geothermal air-conditioning holes, and grouting holes for hydropower cofferdams. The drill rig is equipped with hydraulic motor rotation with high power, propulsion and lifting of cylinder, and down-hole impacter with high blast pressure.

Technical Specifications

Specification	Value
Drilling Depth	180 Meters
Chassis	Rubber track
Drilling diameter	130-254 mm
Drilling Rig model	ST 180
One-time advance length	3.6 m
Walking Speed	2.5 km/h
Gradeability	30°
Engine brand	Yunnei
Main motor power	42kw
Working pressure	1.45-2.5 mpa
Air consumption	17-31 m³/min
Drill pipe diameter	76/89 mm
Drill pipe length	1.5/2.0/3.0 m
Lifting force	12 t
Rotating speed	40-65 rpm
Rotary torque	3500-3800 N.m
Dimensions	350017002250 mm
Machine weight	4.5 t

Key Advantages

The engine uses Qianchai 55Kw turbocharged diesel engine
Walking devices: walking motor with gear box, long working life
The hydraulic pump: parallel gearbox design (patent) separate pump, providing adequate power distribution
The power head device: gearbox casting, double motor to provide power, large torque, durability
Professional digging machine rubber chassis, durable, large bearing capacity
The lifting force: patented design compound arm, small size, long stroke, double cylinder upgrade
Lifting arms of each rig are installed with limiters for safety
Hydraulic oil tubes are wrapped with protective jacket for longer service time

Main Applications

It is mainly used for drilling in hilly, mountains and other rocky areas. Features include:

High power diesel engine with centralized operating handles
Equipped with high hydraulic outrigger for loading and unloading
Hydraulic feeding system with large torque and fast footage
Steel crawler chassis for complex operation sites

Installation Notes

Important Installation Guidelines:

When entering the construction site, the drilling equipment shall be properly fixed with sufficient safety space around.
Construction shall be carried out in strict accordance with the position, direction, angle and depth specifications.
Check drilling equipment and drill pipes before installation to ensure no blockages or damage.
When loading/unloading drill bits, prevent damage to cemented carbide parts.
Install drill pipes sequentially, verifying each installation.
When drilling with clean water, ensure proper water supply before starting.
Measure distances accurately during drilling, verifying depth regularly.
Monitor gearbox, bushing and vertical shaft gear for overheating or abnormal sounds.

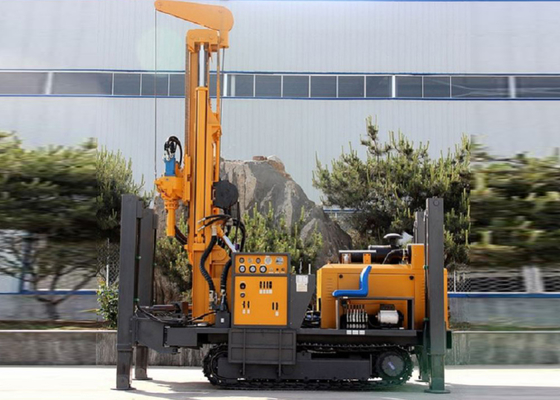

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
