180 Meter Depth Water Well Drilling Rig Machine Portable Diesel Engine

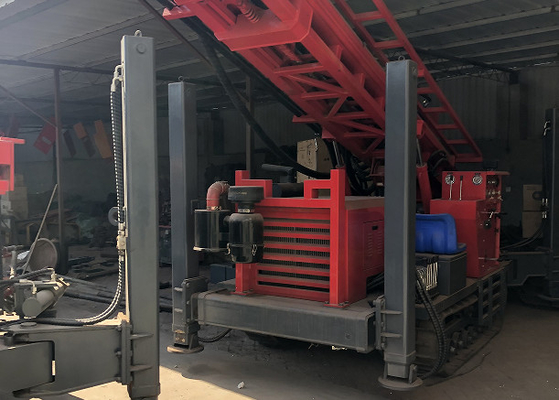

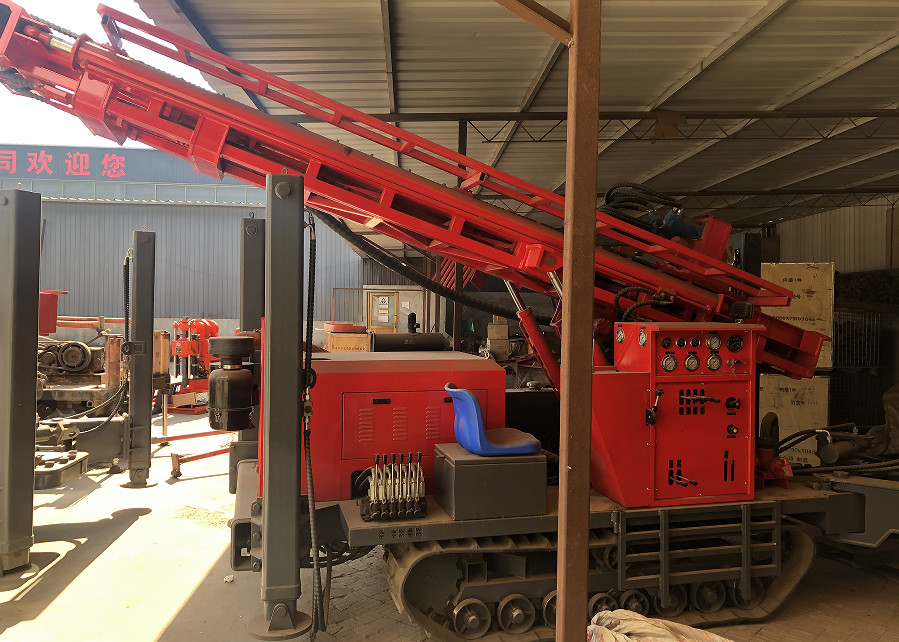

Large Image : 180 Meter Depth Water Well Drilling Rig Machine Portable Diesel Engine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 180 Large Water Well Drilling Rig,High Drilling Speed Pneumatic Crawler Mounted Drill Rig Machine	Color:	Red Yellow
Feature:	High Drilling Efficiency	Usage:	Water Well,exploration,soil Testing
Application:	Water Well Drilling	Power Type:	Diesel Engine
Drilling Depth:	180 Meters	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Highlight:	180m water well drilling rig machine , diesel water well drilling rig machine , 180 meter depth pneumatic rig

ST 180 Large Water Well Drilling Rig

High Drilling Speed Pneumatic Crawler Mounted Drill Rig Machine

Product Specifications

Attribute	Value
Color	Red Yellow
Feature	High Drilling Efficiency
Usage	Water Well, Exploration, Soil Testing
Application	Water Well Drilling
Power Type	Diesel Engine
Drilling Depth	180 meters
Warranty	1 Year
Voltage	220V/380V
Length of Drill Pipe	3m

Product Overview

The ST 180 series water well drilling rig is a lightweight, efficient, and multi-functional drilling equipment designed for industrial and civil drilling applications, including geothermal drilling. Its compact structure, fast footage, flexible movement, and wide application area make it particularly suitable for water extraction in mountainous and rocky terrains.

This versatile machine can be applied to various formations including water well engineering, geothermal wells, and anchor pile holes. It features hydraulic control, automatic drill pipe loading/unloading, crawler-type chassis, high horsepower diesel engine, four-corner hydraulic balance, and superior terrain adaptability.

Technical Specifications

Parameter	Value
Model	ST 180
Drill Mast	3m
Chassis	Rubber track
Drilling Diameter	130-254mm
Drilling Depth	180m
One-time Advance Length	3.6m
Walking Speed	2.5km/h
Gradeability	30°
Engine Brand	Yunnei
Main Motor Power	42kw
Working Pressure	1.45-2.5mpa
Air Consumption	17-31m³/min
Drill Pipe Diameter	76/89mm
Drill Pipe Length	1.5/2.0/3.0m
Lifting Force	12t
Rotating Speed	40-65rpm
Rotary Torque	3500-3800N.m
Dimensions	3500×1700×2250mm
Machine Weight	4.5t

Key Features

Powerful Engine: Equipped with a 55Kw turbocharged diesel engine for reliable performance
Durable Walking System: Gearbox-equipped walking motor ensures long working life
Efficient Hydraulic System: Parallel gearbox design with separate pump provides optimal power distribution
Robust Power Head: Cast gearbox with double motor delivers large torque and durability
Stable Chassis: Professional digging machine rubber chassis with wide chain plates for minimal road damage
Enhanced Lifting Capacity: Patented compound arm design with double cylinder upgrade
Safety Features: Limiter installed on lifting arms to protect cylinders during operation
Protected Components: Hydraulic oil tubes wrapped with protective jackets for extended service life

Operation Guidelines

Casing Installation: Before placing the well pipe, create a well-shaped device using four steel pipes with steel wire rope wound around two pipes (twice for speed, three times for stability). Ensure the rope is free from knots or damage. The rope must continuously bear the weight of each well pipe during installation.

Drill Pipe Replacement: Use the locking handle with cushion fork to secure one end. Insert a three-meter drill pipe into the hole using the puller, then remove the puller and close the closing box before pulling down the operating handle of the drilling rig.
