St 200 Pneumatic Water Well Drilling Deep Hole Blasting Rocky Area Equipment

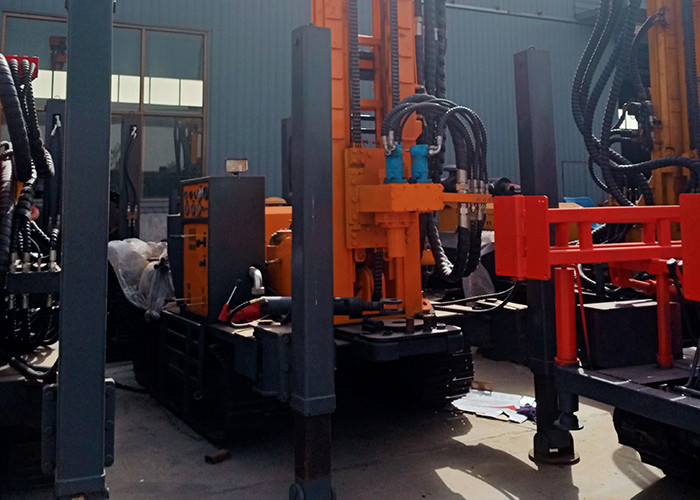

Large Image : St 200 Pneumatic Water Well Drilling Deep Hole Blasting Rocky Area Equipment

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 200 Deep Hole Blasting In Rocky Area For Water Well Pneumatic Drilling Rig Equipment	Model Number:	Truck-mounted Drilling Rig.crawler Mounted Drilling Rig
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	Color:	Blue ,yellow,red
Highlight:	200m pneumatic water well drilling , rocky area pneumatic water well drilling , deep hole blasting pneumatic rig

ST 200 Pneumatic Water Well Drilling Deep Hole Blasting Rocky Area Equipment

Product Specifications

Attribute	Value
Product Name	ST 200 Deep Hole Blasting In Rocky Area For Water Well Pneumatic Drilling Rig Equipment
Model Number	Truck-mounted drilling rig, crawler mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
Color	Blue, yellow, red

Product Overview

The ST 200 large pneumatic drilling rig features expanded pitch and lifting-arm hydraulic cylinder design, making it ideal for water intake in mountainous and rocky strata. This pneumatic water well drilling machine operates with an air compressor and can be equipped with additional mud pump and foam pump components.

Technical Parameters

Parameter	Value
Model	ST 200
Type	Water Well Drilling Rig
Power Type	Diesel
Dimensions (L×W×H)	6400MM × 2250MM × 2700MM
Weight	5800KG
Drilling Diameter	90-152mm
Depth	25M
Rotary Speed	0-90rpm
DTH	K40
Drilling Rods	76×2m + 76×3m
Air Consumption	13-20m3/min
Travelling Speed	0-2.5km/h

Key Features

Compatible with both air compressor and mud pump for different stratums
Equipped with DTH Hammer tools for hard layers

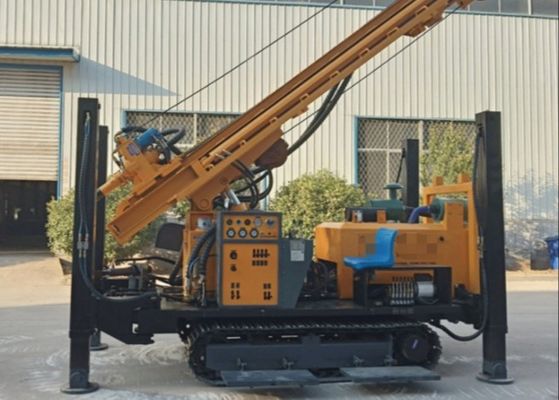

Crawler mounted base with four hydraulic high standing legs for stability on rugged terrain
Full hydraulic and top drive technology for efficient operation
Integrated diesel engine with compact design and water heating capability

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the factory with our own patents, capable of designing and manufacturing products.

What is your delivery time?

Standard delivery is 7-10 days for in-stock items, or 15-20 days for custom orders depending on quantity.

What is your payment method?

30% deposit via T/T with 70% balance payment before delivery.

What drilling depths are available?

Our water well drilling rigs cover depths from 100m to 600m.

How long does your air compressor last?

Typical lifespan exceeds 10 years with proper maintenance.

Drilling Site Selection Guidelines

When selecting drilling locations, avoid suburban or rural areas with inadequate sewage systems to prevent water contamination. Areas near farmland using pesticides and fertilizers require special consideration - deeper wells and anti-seepage treatments using hollow cement columns may be necessary.

Geological conditions vary significantly, with shallow strata showing layered structures and potential for fold fractures or basement uplift. Avoid rocky sections as underground conditions are complex and unpredictable at specific locations.
