St 260 Meters Pneumatic Drilling Rig Industrial Underground Water Borehole

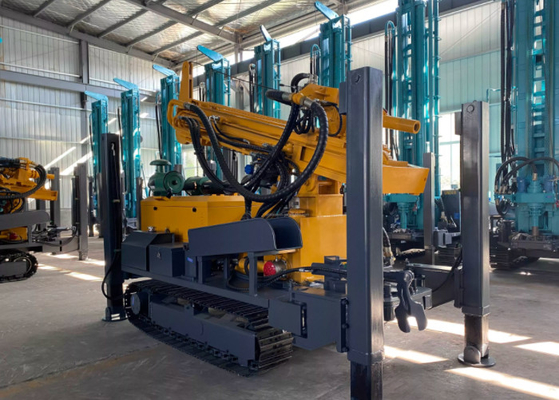

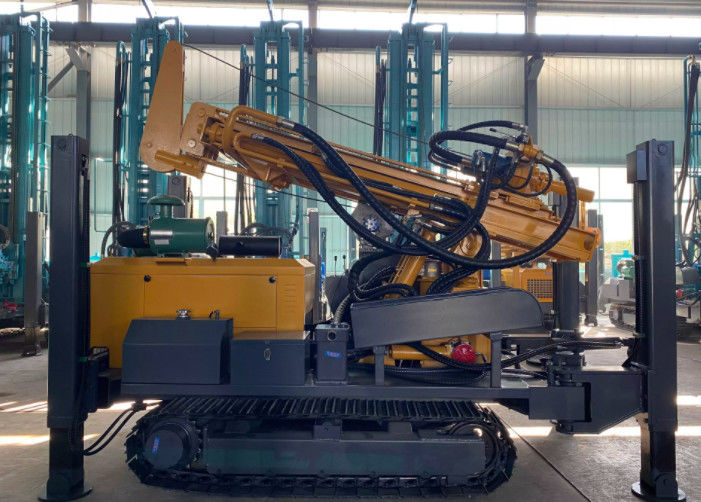

Large Image : St 260 Meters Pneumatic Drilling Rig Industrial Underground Water Borehole

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST 260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	25000-30000 USD
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Drilling Rig ST 260	Drilling Diameter:	105-260mm
After-sales Service Provided:	Water Well Drilling Rig	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	70KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	260 meters pneumatic drilling rig , water borehole pneumatic drilling rig , 260 meters pneumatic rig

ST 260 Meters Pneumatic Drilling Rig Industrial Underground Water Borehole

Product Specifications

Attribute	Value
Product Name	Pneumatic Drilling Rig ST 260
Drilling diameter	105-260mm
After-sales service	Water Well Drilling Rig
Warranty	1 Year
Power type	Diesel
Color	Yellow
Weight	6T
Rotary Head Stroke	3.4m-6.0m
Rated Power	55-132KW

Product Overview

The ST 260 Pneumatic Drilling Rig is designed for industrial underground water borehole applications, capable of working on various formations with drilling diameters up to 245mm. This robust machine is ideal for drilling wells, irrigation systems, geothermal wells, and air holes, particularly in mountainous and rocky terrain.

Technical Specifications

Hole Diameter	φ105-260mm
Drilling Depth	260 meters
Working pressure	1.7-3.0MPa
Air consumption	17-35m³/min
Diesel Engine	Yuchai 85Kw/2200rpm
Weight	9000kgs
Dimension	5900x2000x2850mm

Key Features

Equipped with 75KW Yiqi brand turbocharged engine for powerful performance
Patented design composite boom with double cylinder lift system
Professional excavator chassis with wide chain plate for durability
Parallel gearbox design with separate oil pump for efficient power distribution
Dust-reducing device for cleaner operation in tunnel construction
Hydraulic hose protection with soft management sets for extended lifespan
Full hydraulic control system for walking, turning, propulsion, and lifting

Applications

The ST 260 Pneumatic Drilling Rig is ideal for various industrial and civil drilling applications including:

Water well drilling
Geothermal drilling
Irrigation systems
Rock and mountain water engineering
Tunnel construction

Low Temperature Operation Guidelines

Important considerations when operating in cold environments:

Select flat, unobstructed work sites as ground becomes harder in cold temperatures
Ensure all supports are firm and regularly inspect for potential hazards
Maintain proper fire prevention equipment despite cold conditions
Operator warmth and safety must be prioritized
Account for temperature impacts on construction processes

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
