Bore Rig Machine 75mm Diameter 200m Depth GK 200

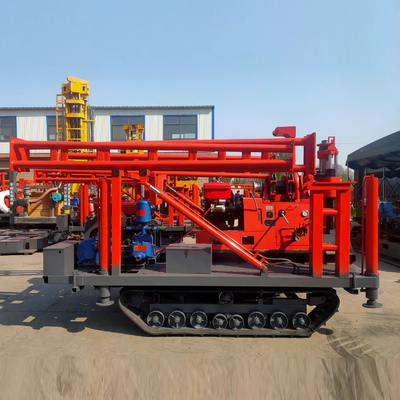

Large Image : Bore Rig Machine 75mm Diameter 200m Depth GK 200

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	GK-200

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export transportation package
Delivery Time:	Within 7-12 days
Payment Terms:	, T/T, Western Union
Supply Ability:	2000Set/Year

Contact Now

Detailed Product Description

Production Name:	200m Depth Crawler Mounted Drill Rig	Model:	GK-200
Voltage::	220v	Weight::	600kg
Dimension(LWH):	17308601360	Application:	Coring Machine
Usage:	Geological Core Drilling And Physical Engineering	Color:	Customised
OEM:	Acceptable	Warranty:	12 Months From The Date Of Delivery
Highlight:	coring investigation crawler mounted drill rig , 75mm diameter crawler mounted drill rig , crawler mounted coring drill rig

200m Depth Crawler Mounted Drill Rig - Model GK-200

Product Overview

A hydraulic feeding drill rig with powerful performance, featuring 2T lifting force and high transmission torque. This lightweight shallow hole rig is ideal for census exploration, geophysical surveys, construction site investigations, and small well drilling applications.

Key Specifications

Attribute	Value
Production Name	200m Depth Crawler Mounted Drill Rig
Model	GK-200
Voltage	220V
Weight	600kg
Dimensions (L×W×H)	1730×860×1360 mm
Application	Coring machine
Usage	Geological core drilling and physical engineering
Color	Customizable
OEM	Available
Warranty	12 months from delivery date

Technical Parameters

Parameter	Value
Drilling diameter (mm)	75, 91, 110, 130, 150, 300
Drilling depth (m)	200, 150, 100, 70, 50, 30
Drill pipe diameter (mm)	42, 50
Drilling angle (°)	90~75
Equipment size (L×B×H)	1730 × 860 × 1360 mm
Rig weight (except engine)	700 kg
Spindle speed (four gear) (r/min)	115, 230, 505, 1010
Spindle maximum feed pressure (KN)	15
Spindle maximum lifting force (KN)	25
Spindle maximum output torque (KN•m)	1.5
Winch maximum lifting force (single rope)	20 KN
Diesel engine rated power (KW)	16.2
Motor rated power (KW)	11

Key Features

High-performance drilling rods: 53×59 mm rods provide exceptional rigidity and torque transmission
Patented taper clutch: Delivers strong transmission torque with easy operation and maintenance-free design
Reinforced winch system: Large module planetary gear with supporting frame enhances hoisting and braking capacity
Stable spindle assembly: Four bearing groups ensure rigidity for challenging geological conditions
Compact design: 160L/min mud pump maintains mobility while reducing operational costs

Applications

Construction drilling for prospection, geotechnical investigation, and infrastructure projects
Core mining exploration and mineral prospecting
Small diameter water well drilling operations
Geothermal pipe installation for heat pump systems
Foundation piling and small-diameter hole drilling

Maintenance Solution for Bearing Seat Wear

For hydraulic drill bearing seat wear repair, we recommend polymer composite materials instead of traditional surfacing methods. This approach eliminates thermal distortion risks, allows unlimited repair thickness, and ensures perfect part contact. The material's superior wear resistance and vibration absorption properties significantly extend component lifespan while minimizing equipment downtime.

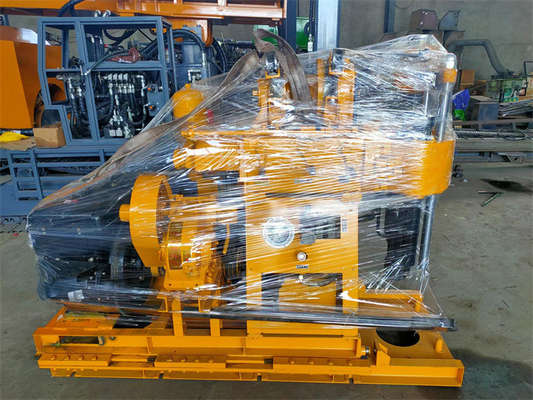

Product Images
