Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Drilling Rig: | Crawler Mounted Drill Rig XY-1A |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well Drilling Rig,geological Exploration | Voltage: | 380V |
| Power(W): | 15KW | Weight: | 1200KGS |
| Other Name: | Drill Rig | Drill Rod Diameter: | 42, 50mm |
| Condition: | New | After-sales Service Provided: | Video Technical Support |
| High Light: | 150 meters exploration drill rig,xy-1a exploration drill rig,crawler mounted exploration drill rig |
||

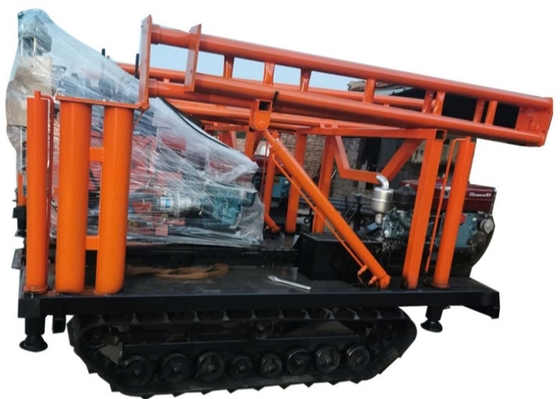

150 Meters Soil Testing Exploration Crawler Mounted Drill Rig XY-1A
Crawler Mounted Drill Rig XY-1A Introduction
XY-1A drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees,earth temperature central air-conditioner,etc
Crawler Mounted Drill Rig XY-1A Parameters
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
Crawler Mounted Drill Rig XY-1A Features
1. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength. 2. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal kelly which can be replaced without shutdown, high efficiency, safe and reliable. 3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole. 4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
Our service of our drilling rigs
We believe that only good quality can bring long term business, thus quality is our life. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome your inquiry!
Precautions for drilling machine working at low temperature
1. In the low temperature environment, the land will become hard, so when we choose the site, we need to have some requirements. The site needs to be flat and the road needs to be unblocked. This must be ensured.
2. The drilling machine mainly uses triangular support, especially in the case of low temperature, we should ensure that the support of the drilling machine is firm and reliable. Our staff need to regularly check and deal with hidden dangers in time once they are found. We must not be careless
3. Although we work at low temperature, we can not ignore the problem of fire prevention. The configuration of fire-fighting equipment must be reasonable and meet the fire-fighting requirements.
4. Low temperature, low temperature, what is the most important? Of course, our friends should pay attention to their warmth when working. Only when they are warm can we better put ourselves into work.
5. The temperature is low, which will definitely have certain impact on the construction. We must pay attention to warmth and safety
