Civil Exploration Drill Rig Equipment Investigation Samples

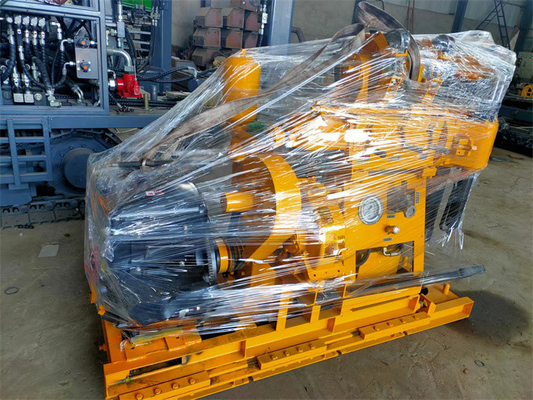

Large Image : Civil Exploration Drill Rig Equipment Investigation Samples

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets /month

Contact Now

Detailed Product Description

Product Name:	Civil Exploration Portable ST 150 Crawler Mounted Drill Rig	Power Type:	Diesel / 13.3kw
Model Number:	XY-1A	Drill Depth:	150m
Usage:	Water Well	Color:	Yellow,Yellow Or As Your Rquest
Application:	Geological Exploration	Drilling Angle:	90 ~75°
Drilling Diameter:	Customized	Dimensions:	1100600500mm, 6006502330mm,
Warranty:	12 Months	After-sales Service Provided:	Video Technical Support
Highlight:	civil exploration hydraulic crawler drill machine , 150m hydraulic crawler drill machine , crawler mounted portable borehole drilling machine

Civil Exploration Portable ST 150 Crawler Mounted Drill Rig

Product Specifications

Attribute	Value
Product Name	Civil Exploration Portable ST 150 Crawler Mounted Drill Rig
Power Type	Diesel / 13.3kw
Model Number	XY-1A
Drill depth	150m
Usage	Water Well
Color	Yellow, Yellow or as your request
Application	Geological Exploration
Drilling angle	90° ~75°
Drilling Diameter	Customized
Dimensions	1100600500mm, 6006502330mm
Warranty	12 months
After-sales service	Video technical support

Product Overview

The XY-1A Crawler Mounted Drilling Rig is a versatile machine widely used for drilling family wells, industrial wells, geological sampling surveys, and SPT services. The drilling diameter can be customized from 50-200mm or larger according to client requirements.

Technical Parameters

Parameter	Unit	Value
Drilling hole diameter	mm	150
Drilling depth	m	150
Drill pipe diameter	mm	42
Borehole inclination	°	90°～75°
Rig dimension (L×B×H)	mm	1640×1030×1440
Drill weight (except engine)	kg	500
Spindle speed (three block)	r/min	142,285,570
Spindle travel	mm	450
Max moving speed	m/min	3
Vertical max feed force	KN	15
Vertical max lift	KN	25
Hoisting capacity (single speed rope)	KN	10
Drum speed	r/min	55,110,220
Drum circumferential velocity	m/s	0.42,0.84,1.68
Drum diameter	mm	145
Wire rope diameter	mm	9.3
Rope weight	m	27
Diameter of the brake	mm	230
Brake band width	mm	50

Key Features

When drilling final holes of 75mm and 46mm diameter, rated depths are 100m and 180m respectively (maximum depth not to exceed 110% of drilled depth)
Hydraulic feeding device increases drilling efficiency and reduces labor intensity
Equipped with upper spherical jaw holding mechanism and hexagonal drive drilling rod for safe, efficient operation without shutdown
Hole bottom pressure gauge monitors internal pressure conditions
Compact, lightweight design with high detachability for easy transportation in plains or mountain areas

Soil Sampling Guidelines

For coring tube installation: Buckle the lifter into the groove of the variable diameter joint, move the winch handle to take the pad fork, install the core tube, and lower the drilling tool into the borehole at uniform speed.

Soil samples can be taken year-round, but consistency in sampling time is recommended. Late summer or early fall is ideal for most crops, allowing time for pH adjustment before planting.

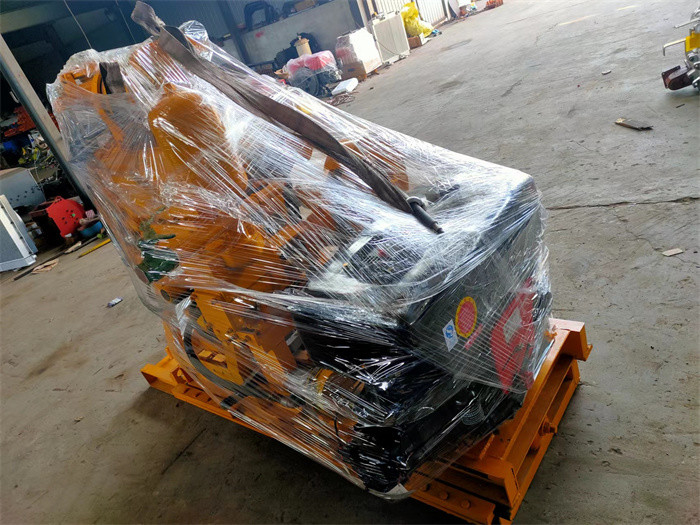

Product Images
