12 Months Warranty Electric Drill Rig 50 Meters Exploration

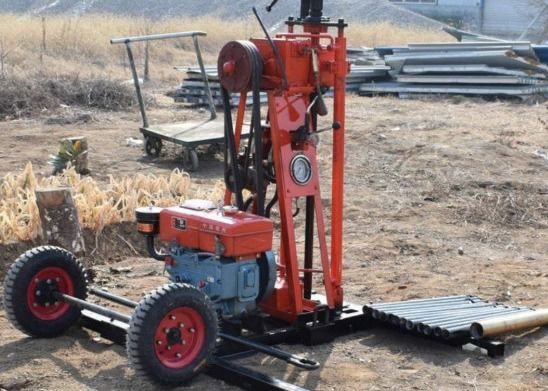

Large Image : 12 Months Warranty Electric Drill Rig 50 Meters Exploration

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	ST 50 Engineering Drilling Rig	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	50m	Dimension(LWH):	1180×680×1600mm
Drill Pipe Diameter:	42mm	Condition:	New
Weight:	200KG	Hole Size Diameter:	73-108mm
Warranty:	1 Year	Color:	Red Yellow,Yellow Green
Highlight:	50 meters depth engineering drilling rig , diesel power type engineering drilling rig , light portable engineering drilling rig

12 Months Warranty Electric Drill Rig 50 Meters Exploration

Product Specifications

Attribute	Value
Type	ST 50 Engineering Drilling Rig
Power Type	Diesel
Weight	480kg
Usage	Water well, railways, core drilling
Drilling depth	50m
Dimension (L×W×H)	1180×680×1600mm
Drill pipe diameter	42mm
Condition	New
Hole size diameter	73-108mm
Warranty	1 Year
Color	Red Yellow, Yellow green

Product Description

12 months Warranty 50 Meters Depth Light Portable Engineering Drilling Rig

ST 50 Engineering Drilling Rig

ST50 series hydraulic drilling rig is a lightweight drilling rig, widely used in general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells, and earth central air conditioning wells.

Technical Parameters

Parameter	Value
Type	ST50 drilling rig
Drilling depth (m)	Max. 50 meter
Hole size diameter	73-108mm
Drill pipe diameter	42mm
Vertical spindle speed	70-650
Reverse rotation speed	50-130
Power	5.7KW
Outsize	1180×680×1600mm
Weight (including Gasoline engine)	208kg

Key Advantages

Fed by hydraulic cylinder for higher drilling efficiency and labor savings
Equipped with national patented technology-taper clutch for strong torque transmission, easy maintenance and free maintenance
Vertical spindles fixed by four groups of bearings to ensure sufficient rigidity for gravel layers and complex geological conditions

Applications

SPT working
Diamond Core drilling
Soil sampling with auger drilling (SPT)
Micro piling
Water well drilling by carbide and rotary drilling

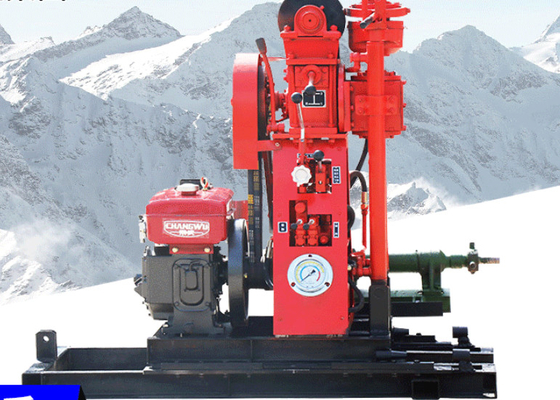

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
