| Brand Name: | Shitan | Product Name: | XY-2 Engineering Drilling Rig Machine |
|---|---|---|---|
| Condition: | New | Type: | Rotary Drilling Rig |
| Voltage: | 220V | Model: | XY-2 |
| Warranty: | 1 Year | Drilling Diameter: | Customized |
| Drilling Depth: | 400 Meters | Application: | Water Well Drilling ,exploration ,soil Testing ,core Drilling |
| OEM: | Acceptable | Material: | Steel |
| High Light: | four hundred meters engineering drilling rig,mining blasting engineering drilling rig,400m depth blast hole drilling machine |
||

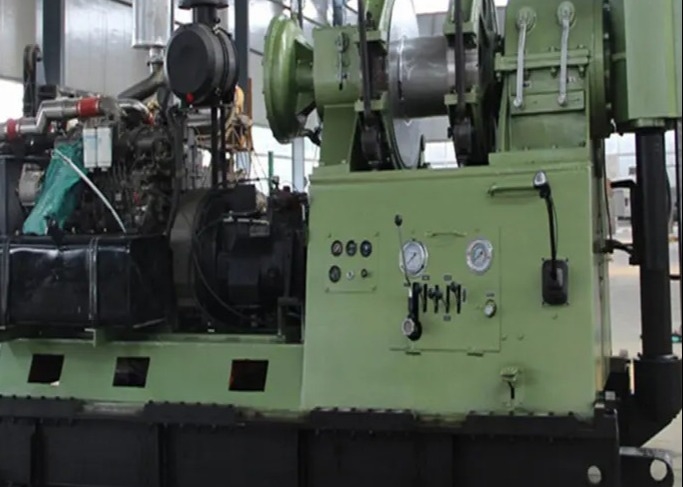

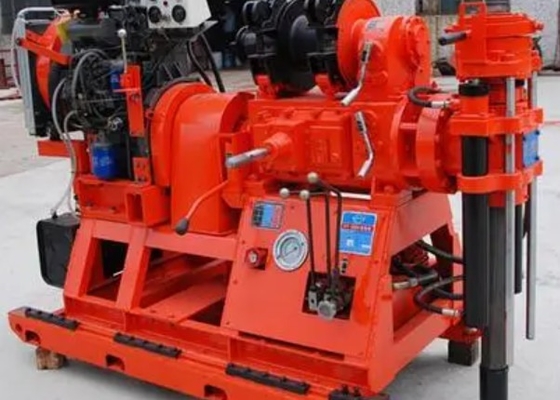

Four Hundred Meters Depth XY-2 Mining Blasting Engineering Drilling Rig
XY-2 Engineering Drilling Rig Machine Introduction:
The XY-2 core drilling rig with a vertical spindle is ideal for geological survey and exploration, road and high-rise building foundation exploration, water well drilling and other applications. It comes in multiple types including trailer mounted, crawler mounted and truck mounted types. With extreme flexibility, it is the most popular compact water well drilling rig in current market.
XY-2 Engineering Drilling Rig Machine Technical Details:
|
Drill |
Swivel Head |
||
|
Drilling depth |
Max.300~400m |
Spindle speed |
60 105 165 228 235 405 638 880 r/min |
|
Hole diameter |
Max.600m |
Spindle stroke |
550kmm |
|
Drill rod diameter |
42mm |
Spindle pull-down |
Max.50KN |
|
Angle range |
0°~360° |
Spindle lifting capacity |
Max. 37KN |
|
Oil pump |
Water pump |
||
|
Model |
YBC-20/125 |
Model |
Gear oil pump |
|
Rated pressure |
8Mpa |
Working pressure |
Max. 10Mpa |
|
Flow speed |
20ml/r |
|
|
|
Rated speed |
150r/min |
|
|
|
Hoist |
Power(diesel) |
||
|
Max. lifting capacity |
212kgs |
Model(diesel engine |
4102&4100 |
|
Hoisting drum revolution |
20.39.85.170r/m |
Rated power |
18.5KW |
|
Drum diameter |
140mm |
Rated speed |
1800 r/min |
|
WEIGHT |
AROUND 980kgs |
||
|
SIZE |
2330x1050x1620mm |
||
XY-2 Engineering Drilling Rig Advantages:
1. Diesel engine and electric motor as power.(convenient for places of insufficient of electricity)
2. Integrative Drilling Tower:
Tower is supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower. The operation is extremely convenient, saving time and labor effort,creating maximum benefit for the user.
3. Crawler mobile base :
The chassis used crawler type achieve rapid turnarounds, very convenient for movement.
4. Long stroke hydraulic supporting leg can be used for transportation, loading and unloading of the drill automatically without the help of the lifting equipment. The hydraulic leg can rapidly make the drill level in the coordination with the universal level instrument.
5. electric-start diesel engine:
It greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.
Shitan Machinery Service Support:
Company has its own R & D team, can undertake OEM design, modification service.We are served our clients from over 12 countries with more than 26 mining projects.With our professional and customized drilling solutions, durable and reliable machinery performance, 24/7 stand-by service and technical support, we have earned our reputation worldwide. We send our warmest welcome to all our business partners around the world to come and visit us at any time of convenience.
What is an exploration?
Exploration drilling is a procedure in which several test holes are drilled for the purpose of evaluating the contents of the ground in a particular area. It is conducted to find out whether or not materials of value are present, and to assess the quality of those materials. There are a number of industries which use exploration drilling in their work, sometimes with their own drilling crews,
,
