Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth

Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth
Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth

Large Image :  Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth

Product Details:
Place of Origin: China
Brand Name: Shitan
Certification: ISO
Model Number: XY-2b
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: XY-2b Geological Drilling Rig Machine Condition: New
Type: Rotary Drilling Rig Voltage: 220V
Model: XY-2b Warranty: 1 Year
Brand Name: Shitan Drilling Diameter: Customized
Drilling Depth: 500 Meters Application: Water Well Drilling ,exploration ,soil Testing ,core Drilling
OEM: Acceptable Material: Steel
High Light:

500M Depth Geological Drilling Machine

,

Rotary Geological Drilling Equipment

,

50 Meters Geological Drilling Equipment

500 Meters Drilling Depth XY -2B Gold Mining Geological Drilling Rig Machine Equipment





XY-2B Geological Drilling Rig Machine Introduction:



The XY-2B core drilling rig with a vertical spindle is ideal for geological survey and exploration, road and high-rise building foundation exploration, water well drilling and other applications. It comes in multiple types including trailer mounted, crawler mounted and truck mounted types. With extreme flexibility, it is the most popular compact water well drilling rig in current market.



Technical Details:



Drill

Swivel Head

Drilling depth



Max.400~500m

Spindle speed



60 105 165 228 235 405 638 880 r/min

Hole diameter



Max.600m

Spindle stroke

550kmm

Drill rod diameter

42mm

Spindle pull-down

Max.50KN

Angle range

0°~360°

Spindle lifting capacity

Max. 37KN

Oil pump

Water pump

Model

YBC-20/125

Model

Gear oil pump

Rated  pressure

8Mpa

Working pressure

Max. 10Mpa

Flow speed

20ml/r





Rated speed

150r/min





Hoist

Power(diesel)

Max. lifting capacity

212kgs

Model(diesel engine

4102&4100

Hoisting drum revolution

20.39.85.170r/m

Rated power

18.5KW

Drum diameter

140mm

Rated speed

1800 r/min

WEIGHT

AROUND 980kgs

SIZE

2330x1050x1620mm



XY-2B Geological Drilling Rig Machine Advantages:

1. Diesel engine and electric motor as power.(convenient for places of insufficient of electricity)
2. Integrative Drilling Tower:
Tower is supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower. The operation is extremely convenient, saving time and labor effort,creating maximum benefit for the user.
3. Crawler mobile base :
The chassis used crawler type achieve rapid turnarounds, very convenient for movement.

4. Long stroke hydraulic supporting leg can be used for transportation, loading and unloading of the drill automatically without the help of the lifting equipment. The hydraulic leg can rapidly make the drill level in the coordination with the universal level instrument.
5. electric-start diesel engine:
It greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.



How do I know where my water table is?



The most reliable method of obtaining the depth to the water table at any given time is to measure the water level in a shallow well with a tape. If no wells are available, surface geophysical methods can sometimes be used, depending on surface accessibility for placing electric or acoustic probes



What is an exploration?



Exploration drilling is a procedure in which several test holes are drilled for the purpose of evaluating the contents of the ground in a particular area. It is conducted to find out whether or not materials of value are present, and to assess the quality of those materials. There are a number of industries which use exploration drilling in their work, sometimes with their own drilling crews

Soil investigation is to carry out physical testing on-site to understand the ground conditions for geotechnical design. Site works usually consist of the Cone Penetration Test, Vane Shear Test, Standard Penetration Test, Installation of Water Standpipe, Instrumentation's, etc.

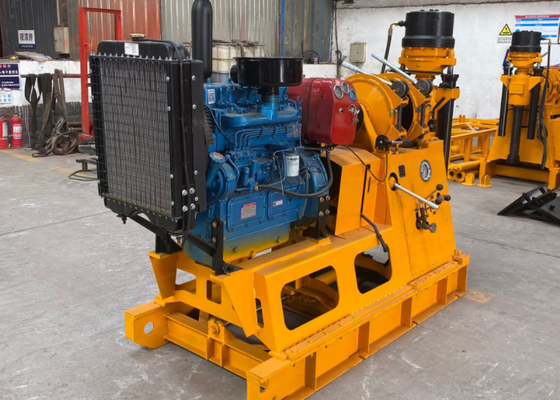

,Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth 0

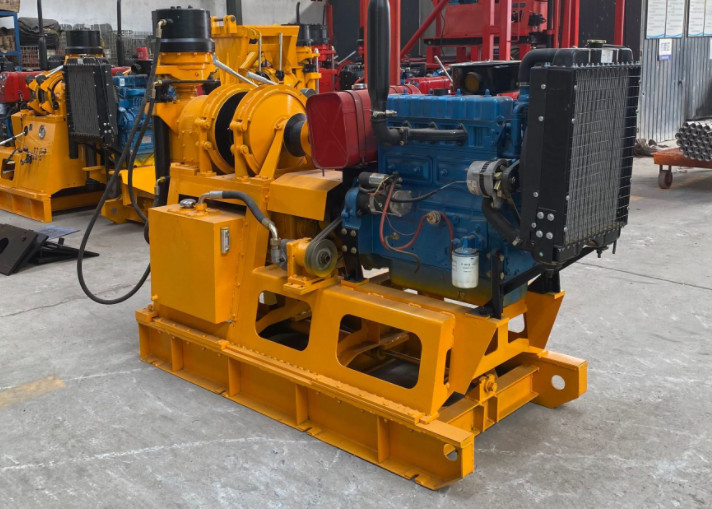

Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth 1Gold Mining Geological Drilling Rig Machine 500 Meters Drilling Depth 2
