Shallow Less Depth Tractor Borewell Machine 100 Meters Drilling Depth

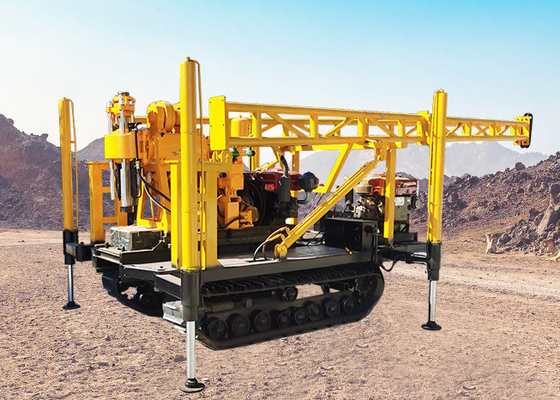

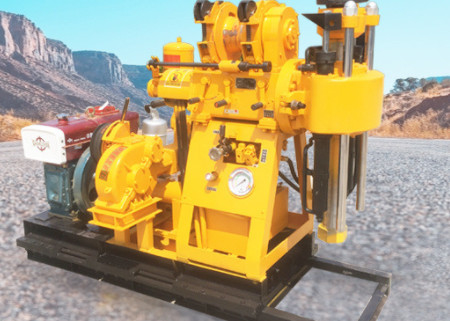

Large Image : Shallow Less Depth Tractor Borewell Machine 100 Meters Drilling Depth

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 sets /month

Contact Now

Detailed Product Description

Product Name:	XY-1A Water Well Drilling Rig	Power Type:	Diesel / 13.3kw
Model Number:	XY-1A	Drill Depth:	150m
Usage:	Water Well	Color:	Yellow,Yellow Or As Your Rquest
Application:	Geological Exploration	Drilling Angle:	90 ~75°
Drilling Diameter:	Customized	Dimensions:	1100600500mm, 6006502330mm,
Warranty:	12 Months	After-sales Service Provided:	Video Technical Support
Highlight:	150m Depth Water Well Drilling Rig , Portable Borehole Drilling Machine 150m , 13.3kw Borehole Drilling Machine

XY-1A Water Well Drilling Rig - 150 Meters Depth

Product Specifications

Attribute	Value
Product Name	XY-1A Water Well Drilling Rig
Power Type	Diesel / 13.3kw
Model Number	XY-1A
Drill Depth	150m
Usage	Water Well
Color	Yellow or as requested
Application	Geological Exploration
Drilling Angle	90° ~75°
Drilling Diameter	Customized
Dimensions	1100600500mm, 6006502330mm
Warranty	12 months
After-sales Service	Video technical support

Product Overview

The XY-1A drilling rig is designed for geological investigation, foundation exploration, concrete structure drilling, river levees, and earth temperature central air-conditioner installations. This versatile rig is ideal for drilling family wells, industrial wells, and geological sampling with SPT services. Drilling diameter can be customized from 50-200mm or larger based on client requirements.

Technical Specifications

Parameter	Unit	Value
Drilling hole diameter	mm	150
Drilling depth	m	150
Drill pipe diameter	mm	42
Borehole inclination	°	90°～75°
Rig dimension (L×B×H)	mm	1640×1030×1440
Drill weight (except engine)	kg	500
Gyroscope
Spindle speed (three block)	r/min	142,285,570
Spindle travel	mm	450
Max moving speed	m/min	3
Vertical max feed force	KN	15
Vertical max lift	KN	25
Windlass
Hoisting capacity (single speed rope)	KN	10
Drum speed	r/min	55,110,220
Drum circumferential velocity	m/s	0.42,0.84,1.68
Drum diameter	mm	145
Wire rope diameter	mm	9.3
Rope weight	m	27
The diameter of the brake	mm	230
Brake band width	mm	50
Water Pump
Pump type	Horizontal single cylinder double acting
Max displacement	L/min	95(77)
Max allowable pressure	Mpa	1.2
Working pressure	Mpa	1.2
Cylinder diameter	mm	80
Oil Pump
Pump type	Gear pump
Power	KW	16.2
Rated pressure	Mpa	12.5
Motor type	YBC-12/125
Displacement	L/r	12
Rated speed	r/min	2000

Key Features

Hydraulic feeding device enhances drilling efficiency and reduces labor intensity
Upper spherical jaw holding mechanism with hexagonal kelly allows replacement without shutdown
Hole bottom pressure gauge monitors and controls internal hole pressure
Compact, lightweight design with high detachability for easy transportation
Ideal for operations in plains and various geological conditions

Site Investigation Applications

The XY-1A rig performs soil explorations to obtain subsurface information for construction projects. It determines natural soil deposit profiles, collects samples, and evaluates engineering properties of soils.

Drilling Process Considerations

Bit selection critically impacts drilling efficiency and quality. Key operational aspects include:

Timely replacement of central drilling tools after completing drilling structures
Thorough hole bottom cleaning before tool changes
Continuous monitoring of casing follow-up and hole conditions
Proper handling of residual rock slag that may affect bit retraction
Controlled lifting speeds to prevent damage to drilling tools
