200m Construction Drilling Machine For Soil Testing In South Africa

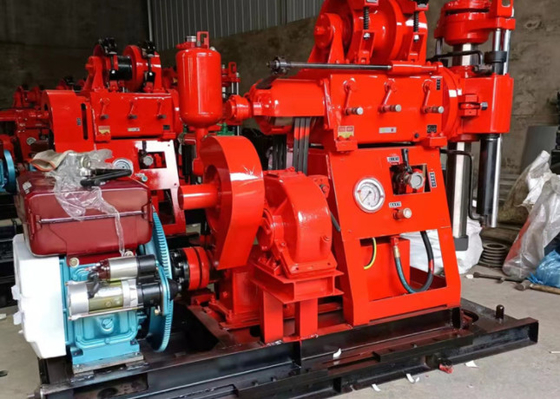

Large Image : 200m Construction Drilling Machine For Soil Testing In South Africa

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO9001
Model Number:	GK 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	GK 200 Core Drill Rig Diesel Engine Engineering Exploration For Collecting Samples	Driling Depth:	200 Meters
Drilling Diameter:	295mm	Application:	SPT Drilling,Exploration ,Water Well Drilling
OEM:	Acceptable	Color:	Yellow,blue,red
After Sale Service:	Video Support	Warranty:	12 Months
Driven Type:	Diesel Engine	Voltage:	220/110V
Highlight:	200m Core Drill Rig , Collecting Samples Core Drill Rig , Collecting Samples Exploration Drill Rig

GK 200 Core Drill Rig Diesel Engine Engineering Exploration Rig

Product Overview

The GK 200 Core Drill Rig is a powerful diesel-engine drilling machine capable of reaching depths up to 200 meters. Designed for soil testing, exploration, and water well drilling, this rig features hydraulic feeding with large power output and high transmission torque.

Key Specifications

Attribute	Value
Product Name	GK 200 Core Drill Rig Diesel Engine Engineering Exploration For Collecting Samples
Drilling Depth	200 meters
Drilling Diameter	295mm
Application	SPT Drilling, Exploration, Water Well Drilling
OEM	Acceptable
Color Options	Yellow, Blue, Red
After Sale Service	Video Support
Warranty	12 months
Driven Type	Diesel Engine
Voltage	220/110V

Technical Parameters

Parameter	Value
Borehole diameter	75, 91, 110, 130, 150, 300mm
Drilling depth	200, 150, 100, 70, 50, 30m
Drill pipe diameter	42, 50, 60mm
Angle range	90°-75°
Size (LWH)	14336971273mm
Weight (without power unit)	525kg
Spindle speed (4-speed)	71, 142, 310, 620r/min
Spindle stroke	450mm
Max feeding force of spindle	15KN
Max lifting force of spindle	25KN
Max output torque of spindle	1.25KN.M

Product Advantages

Multiple drill bit options available (diamond, alloy, steel roller) for different geological structures
Hydraulic feeding mechanism improves drilling efficiency and reduces labor intensity
Compact structure with small volume and light weight for easy transportation
Large Kelly and double guide pipe design increases stability during operation
Suitable for both plains and mountain areas

Applications

The GK 200 Core Drill Rig is ideal for general exploration and investigation of solid mineral deposits, engineering geotectonic surveys, and concrete structure inspection holes. Its versatile design makes it suitable for various drilling applications in different terrains.

Soil Sampling Procedure

Divide the field into homogeneous units based on visual observation
Remove surface litter at sampling spots
Drive auger to plough depth of 15cm and draw soil sample
Collect 10-15 samples from each unit
Alternative method: Make 'V' shaped cut to 15cm depth using spade if auger unavailable
Remove thick slices of soil from exposed face of cut

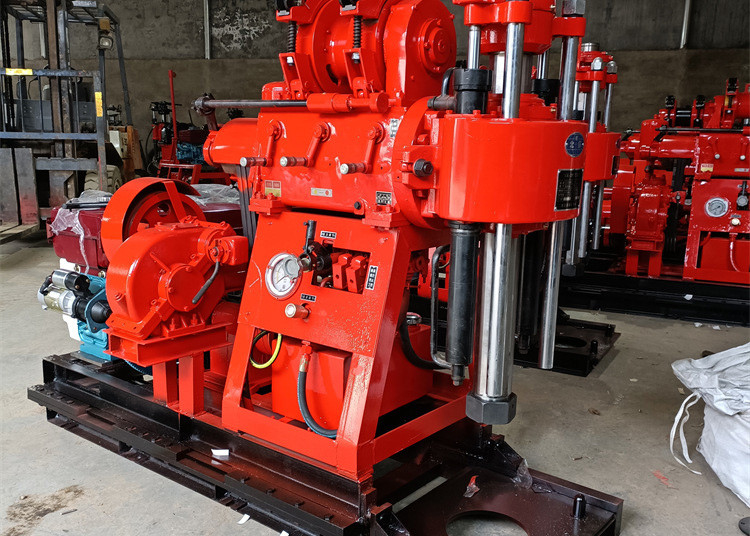

Product Images
