Diesel Powered Foundation Drill Rigs Rock Blasting DTH

Diesel Powered Foundation Drill Rigs Rock Blasting DTH
Diesel Powered Foundation Drill Rigs Rock Blasting DTH
video play

Large Image :  Diesel Powered Foundation Drill Rigs Rock Blasting DTH

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 180
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 units a month
Contact Now
Detailed Product Description
Product Name: ST 180 Pneumatic Water Well Drilling Rig Power Type: Diesel / 13.3kw
Brand Name: Shitan Drill Depth: 180 Meters
Color: Yellow,Red Or As Your Rquest Application: Water Well Drilling
Drilling Angle: 90 ~75° Drilling Diameter: Customized
Dimensions: 1100*600*500mm, 600*650*2330mm, After-sales Service Provided: Video Technical Support,
Warranty: 24 Months OEM: Wheels Or Crawler Mounted
Highlight:

180M Water Well Drilling Rig

,

Diesel Powered Water Well Drilling Rig

,

Diesel Powered Water Well Drilling machine

ST 180 Pneumatic Water Well Drilling Rig
Product Specifications
Attribute Value
Power Type Diesel / 13.3kw
Brand Name Shitan
Drill Depth 180 meters
Color Options Yellow, Red or custom
Application Water Well Drilling
Drilling Angle 90° ~75°
Drilling Diameter Customized
Warranty 24 months
Mounting Options Wheels or crawler mounted
Technical Parameters
Place of Origin China
Weight 4500KG
Dimensions 4600x1550x2350mm
Drilling Diameter Range 140-254mm
Max Drilling Depth 180m
Feed Stroke 3.3m
Supporting Drilling Rod 76*2000mm, 89*2000mm
Air Consumption 17-31m³/min
Product Description
The ST 180 is a versatile water and air drilling rig primarily designed for drilling water wells, agricultural irrigation wells, and geothermal air conditioning holes. It excels in water intake projects in mountainous areas and rock formations.
Key Advantages
  • Equipped with Yuchai-powered four-cylinder Guosan engine for minimal environmental impact
  • Dual-motor rotation increases turning torque up to 8500N.m for enhanced performance
  • Features Kaishan LGCY/KSCY series portable diesel screw air compressors for stable power
  • Direct-driven rotor design ensures lower speed and higher efficiency
  • Provides stable power for high-speed, stable rig operation
Maintenance Guidelines
  • Regularly check bolt tightness on water/gas pipelines and accessories
  • Monitor wind motor lubrication condition
  • Use large-diameter drill head when working in water to prevent debris entry
  • Avoid reverse rotation during operation to prevent drill pipe loss
  • Apply minimal air pressure during short breaks to prevent sediment intrusion
  • For long-term storage, lift percussion device 1-2m from hole bottom
Frequently Asked Questions
What is the main function of your hydraulic water well drilling rig?
Our rigs come in various models suitable for different hole diameters and depths, making them ideal for diverse drilling applications.
What are your payment terms?
30% deposit via T/T, with 70% balance paid before delivery. We provide product photos before final payment.
What is your delivery time?
Typically 7-10 working days after receiving deposit.
What is your warranty policy?
1-year warranty on main machine with free replacement of broken parts. Includes installation and operation videos.
Do you provide wear parts for existing clients?
Yes, we maintain client records and prioritize spare parts supply for existing customers.
Product Images

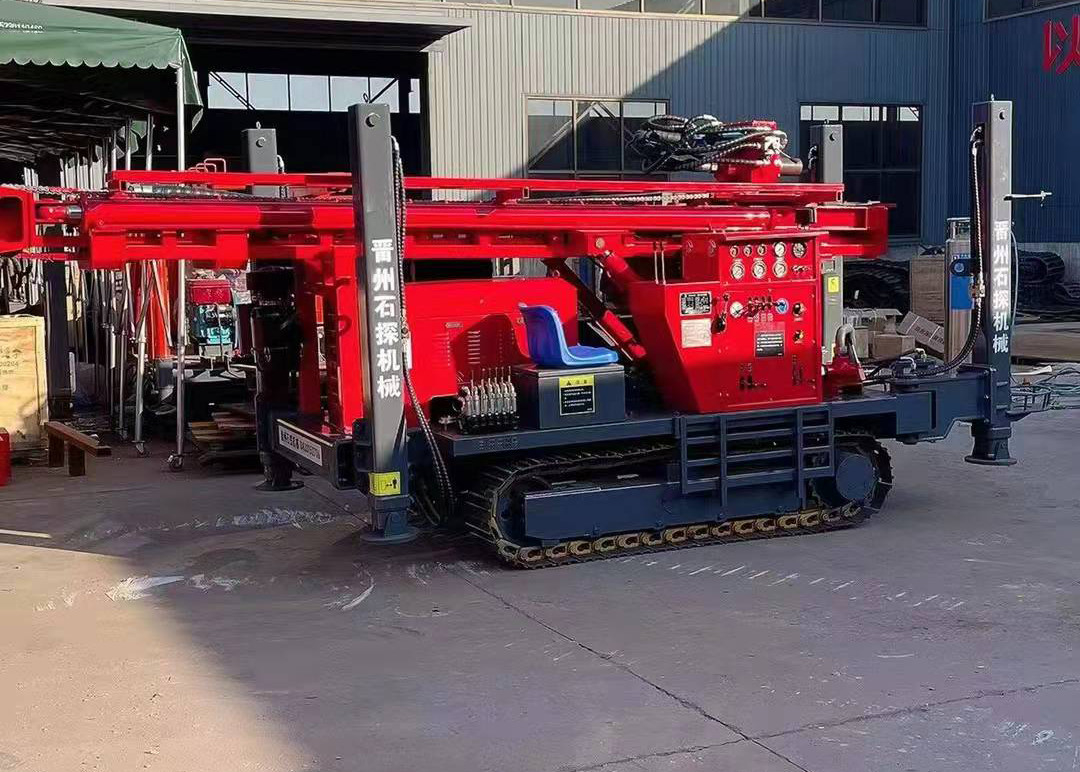

Diesel Powered Foundation Drill Rigs Rock Blasting DTH 0
Diesel Powered Foundation Drill Rigs Rock Blasting DTH 1
Diesel Powered Foundation Drill Rigs Rock Blasting DTH 2
Diesel Powered Foundation Drill Rigs Rock Blasting DTH 3
Diesel Powered Foundation Drill Rigs Rock Blasting DTH 4
Diesel Powered Foundation Drill Rigs Rock Blasting DTH 5
