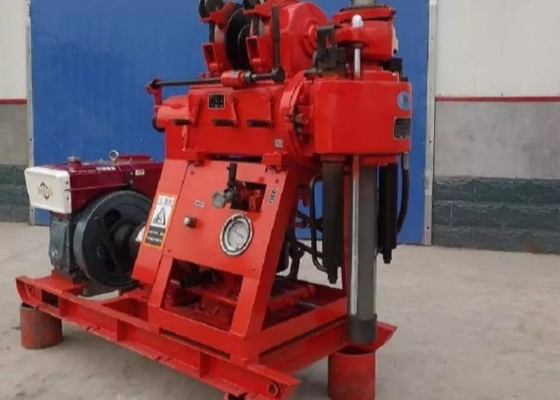

Engineering Survey Diamond Drilling Equipment With 100 Meters Depth

Large Image : Engineering Survey Diamond Drilling Equipment With 100 Meters Depth

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	XY-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Neogotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Engineering Survey Coring Exploration Drill Rig 100 Meters	Drilling Depth:	100 Meters
Type:	Core Drilling Rig	Drilling Hole Diameter:	100 Mm
Power Type:	Diesel	Voltage:	Diesel Engine Driven
Warranty:	12 Months	Color:	Yellow,Red And Blue
After Sale Service:	Video Support	OEM:	Acceptable
Highlight:	Exploration Drill Rig 100 Meters , Exploration Drill Rig With Diesel Engine , engineering drilling rig 100 Meters

Engineering Survey Diamond Drilling Equipment With 100 Meters Depth

Product Specifications

Product Name	Engineering Survey Coring Exploration Drill Rig 100 Meters
Drilling Depth	100 meters
Type	Core Drilling Rig
Drilling Hole diameter	100 mm
Power Type	Diesel
Voltage	Diesel Engine Driven
Warranty	12 Months
Color	Yellow, Red and Blue
After sale service	Video Support
OEM	Acceptable

Product Overview

The Engineering Survey Coring Exploration Drill Rig with 100 meters depth capability is powered by a diesel engine, making it ideal for various drilling applications.

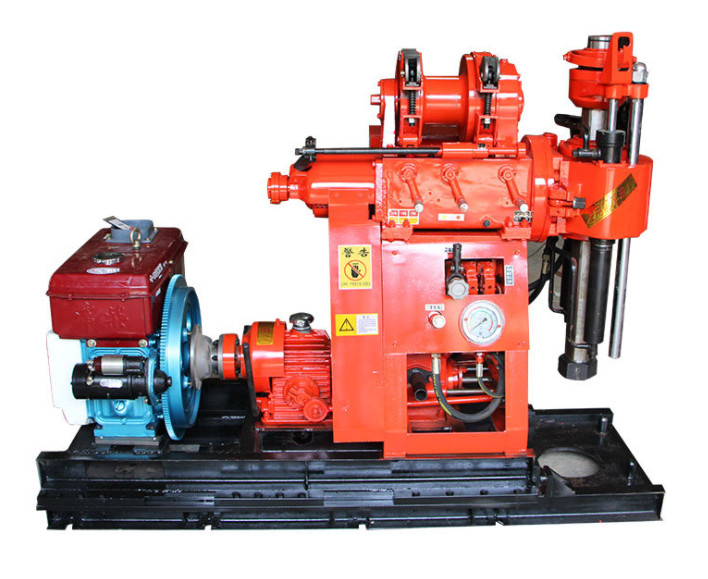

XY-1 Drilling Rig Description

This portable drilling rig is suitable for reconnaissance, geophysical exploration, road and building exploration, blasting holes, and other drilling engineering applications. It offers flexibility with alloy, steel grit, and steel drop bits options to accommodate different strata conditions.

Technical Parameters

Drilling depth	100m
Max. open hole caliber	220mm
End hole caliber	75mm
Drill pipe caliber	50mm
Drilling angle	90°~75°
Drill weight	560Kgs
Spindle Specifications
Spindle speed	142,285,570r/min
Spindle stroke	450mm
Hoist Specifications
Max. lifting capacity	1600Kgs
Single line lifting speed	0.41,0.82,1.64m/s
Reel caliber	140mm
Tightrope caliber	13mm
Tightrope size	27mm
Mud Pump Specifications
Type	Horizontal single-urn double action
Flow Diesel engine/Electric motor	95/97L/min
Max. pressure	1.2Mpa
Work pressure	0.7Mpa
Water inlet diameter	30mm
Water outlet diameter	20mm
Triangle conveyer belt	B1575mm

Key Advantages

Hydraulic automatic feeding mechanism improves drilling efficiency and reduces labor intensity
Ball clip holding mechanism or hydraulic chuck allows for rod changes without stopping operation
Hole bottom pressure gauge provides real-time monitoring of hole conditions
Compact design with concentrated handle controls for easy operation in various terrains
Lightweight construction (560kg) with strong decomposition for easy transportation

Applications

Drilling for high-rise buildings, highways, railways, bridges, and harbor works
Dam and tunnel construction projects
Small-diameter foundation piling drilling
Solid mineral exploration
Anchoring engineering for battered slopes
Geothermal pipe installation for heat pump systems

Well Drilling Methods Overview

Modern well construction typically involves five main methods: digging, driving, drilling, and jetting (flushing). Each method has specific applications based on geological conditions and depth requirements.
