| Model Number: | BW-160 | Product Name: | BW 160 High Precision Drilling Mud Pump |
|---|---|---|---|
| Application: | For Flushing Fluid | Usage: | Water Well,Exploration |
| Fuel: | Diesel | Power: | Hydraulic |
| Feature: | Critical Cleaning / Residue Free | Pressure: | High Pressure |
| After Sale Service: | Video Support | Place Of Origin: | Hebei,China |
| High Light: | Hydraulic Drill Rig Mud Pump,Triplex Plunger Drill Rig Mud Pump,Hydraulic Portable Mud Pump |
||

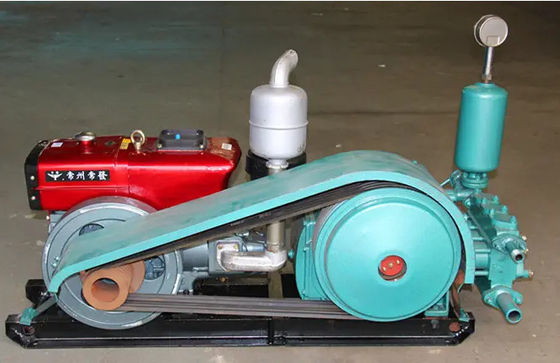

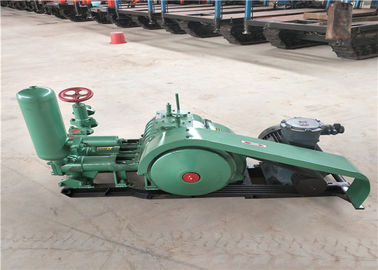

BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump For Engineering And Borehole Drilling
BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump
BW 160 Mud Pump Description:
BW-160 mud pump is a portable mud pump. The pump is a horizontal three-cylinder reciprocating single-acting piston pump with four flows and four pressures. The flow and pressure vary widely. The pump has the characteristics of small volume, light weight, long service life, simple operation, flexibility and reliability, and many general and standard parts, which are light and flexible, and easy to move. It can be used for geological exploration and engineering exploration in railway, water, metallurgy, construction, geology and other industries with hole depth less than 1000m
BW 160 High Precision Drilling Mud Pump Product Parameter:
| Type | Horizontal type single-cylinder Double-action pump |
| Cylinder Diameter | 95 mm |
| Stroke | 85 mm |
| Reciprocate Times | 165 times/ minute |
| Displacement | 160 L/min |
| Pressure | 1.3 MPa |
| Volume Effiency | 80% |
| Input Speed | 951 rotations/min |
| Transmisiion shaft speed | D180/Z5.88kw |
| Input pipe diameter | 50mm |
| Output pipe diameter | 40mm |
| Mass (including the engine) | 200 kg |
| Dimensions | 1110*725*965 mm |
Product Advantages
BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump is a horizontal single-cylinder double-acting reciprocating piston pump, the pump head is equipped with four 40mm steel ball valve, thereby increasing the pressure. It is mainly used to provide flushing solution in blasting hole in geophysical prospecting. It can also be used to supply flushing liquid into well in bedrock drilling of engineering geological drilling rig. The pump has the characteristics of small volume, light weight and durability, and is more suitable for geological exploration.
BW Series Mud Pump Working Attentions
1. Before starting, the suction pipe, bottom valve and pump body should be filled with water, and the upper end of the pressure gauge buffer should be filled with oil.
2. Before starting, make the piston reciprocate twice, and start with no load when there is no obstruction. After starting, the load shall be increased gradually after the operation is normal.
3. During operation, the sand content of mud should be tested frequently. The sand content of mud shall not exceed 10%.
6. For mud pump with multiple speeds, several speeds shall be operated separately in each shift, and the operation time shall not be less than 30min
4. Do not change speed during operation; When it is necessary to change speed, stop the pump for shifting.
5. During operation, when there is abnormal noise, abnormal water volume and pressure, or obvious temperature rise, the pump shall be stopped for inspection.
6. Under normal conditions, the pump shall be stopped at no load. When the pump is stopped for a long time, all drain holes should be opened, the cylinder head should be loosened, the bottom valve drain rod should be lifted, and all the mud and sand in the pump body and pipeline should be drained.
7. In case of long-term shutdown, clean the mud and oil dirt of each part, drain the lubricating oil in the crankcase, and take anti-rust and anti-corrosion measures.
