BW 250 Water Well Drilling Mud Pump Diesel Powered
Product Specifications
Product Name:
BW 250 Water Well Hole Drilling Mud Pump, Reciprocating Piston Pump
Application:
Water well drilling, exploration
Material:
Stainless Steel
Place of origin:
Hebei, China
After sale service:
Video Support
Product Overview

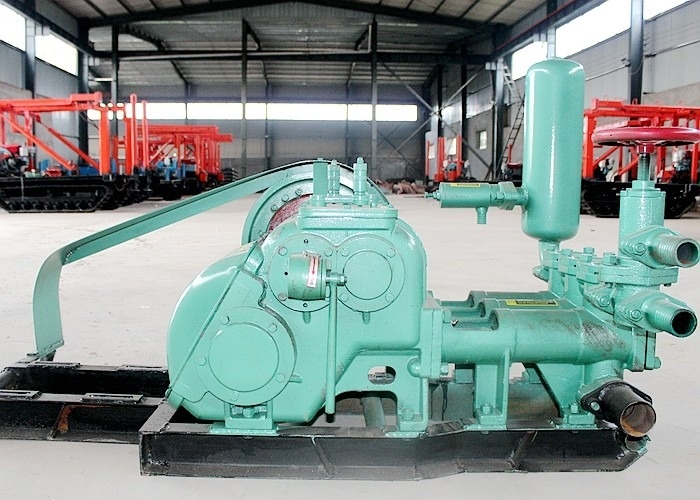

The BW250 diesel-powered piston pump features two cylinders with different diameters and four gear shifts. With adjustable output and drilling depth, it is suitable for grouting cement slurry or pairing with 1500m drilling machines. Designed for flushing fluid drilling, it works effectively with both mud and clear water.
Technical Parameters
| Model |
BW150 |
BW160 |
BW250 |
BW320 |
| Max. Flow rate |
150L/Min |
160L/Min |
250L/Min |
320L/Min |
| Max. pressure |
7Mpa |
10Mpa |
6Mpa |
8Mpa |
| Power |
7.5KW |
11KW |
15KW |
30KW |
| Inlet pipe diameter |
51mm |
51mm |
76mm |
76mm |
| Outlet pipe diameter |
32mm |
32mm |
51mm |
51mm |
| Weight |
480kg |
560kg |
760kg |
1000kg |
Key Features
- Equipped with drilling rigs for mud-based hole drilling operations
- Pumps slurry to provide wall coating, lubricate drilling tools, and remove rock debris
- Ideal for geological core drilling and prospecting up to 1500 meters
- Diesel-powered for reliable operation in remote locations
- Stainless steel construction for durability and corrosion resistance
Operation Guidelines
- Fill suction pipe, bottom valve, and pump body with water before starting
- Perform two piston reciprocations before starting with no load
- Regularly test mud sand content (should not exceed 10%)
- Operate at different speeds for at least 30 minutes per shift
- Never change speed during operation - stop pump for shifting
- Stop immediately for any abnormal noise, pressure changes, or temperature rise
- Follow proper shutdown procedures including draining all mud and sand
- Clean thoroughly and apply anti-rust measures for long-term storage
Frequently Asked Questions
Can I request customize service?
Yes, we can customize voltage, material, color, nameplate, and meet other special requests.
What is the advantage of your factory?
We provide accurate market sharing, reliable investment suggestions, proper machine selection, quick problem solving, and dependable after-sales service to minimize purchasing risks.
What service do you supply after order?
Your order receives full tracking including production monitoring, quality control, logistics coordination, and customs documentation preparation for a complete one-stop service.
How to solve the after-sales problem?
Send video or pictures of any issues. We provide solutions and take full responsibility for problems caused by our products, aiming for long-term customer satisfaction.
Product Images
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
