Triplex BW 160 Exploration Drilling Mud Pump With Diesel Engine

Large Image : Triplex BW 160 Exploration Drilling Mud Pump With Diesel Engine

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	BW 160

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000000 Sets/month

Contact Now

Detailed Product Description

Product Name:	BW 160 Drilling Mud Pump	Structure:	Water Well Mud Pump
Model Number:	BW-160	Usage:	Water Well,Exploration
Fuel:	Diesel	Power:	Hydraulic
Feature:	Critical Cleaning / Residue Free	Pressure:	High Pressure
Warranty:	12 Months	Place Of Origin:	Hebei,China
Highlight:	Exploration Triplex Mud Pump , Exploration Drilling Mud Pump , Diesel Engine Drilling Mud Pump

Triplex BW 160 Exploration Drilling Mud Pump With Diesel Engine

Product Specifications

Attribute	Value
Product Name	BW 160 Drilling Mud Pump
Structure	Water Well Mud Pump
Model Number	BW-160
Usage	Water Well, Exploration
Fuel	Diesel
Power	Hydraulic
Feature	Critical Cleaning / Residue Free
Pressure	High Pressure
Warranty	12 months
Place of origin	Hebei, China

Product Overview

The Triplex BW 160 is a reciprocating piston/plunger pump designed to circulate drilling fluid under high pressure (up to 7,500 psi/52,000 kPa) down the drill string and back up the annulus. As an essential component in oil well drilling equipment, this mud pump offers reliable performance for demanding exploration applications.

Technical Parameters

Type	Horizontal BW 160 Mud Pump
Piston stroke	70mm
Inside diameter cylinder	70mm
Rated pressure (Mpa)	2.5 / 4 / 6.5 / 10
Reciprocating piston number	200 / 132 / 83 / 55
Rated Flow	160 / 107 / 67 / 44 L/min
Volumetric efficiency	95%
Overall efficiency	75%
Power	11Kw
Triangle belt type specifications, number	B2050*4
Suction tube diameter	51mm
Discharge pipe diameter	32mm

Key Features

Portable horizontal three-cylinder reciprocating single-acting piston pump
Four adjustable flows and pressures for versatile operation
Compact design with small volume and light weight
Long service life with simple operation and reliable performance
Uses standard parts for easy maintenance and replacement
Ideal for geological and engineering exploration in various industries
Suitable for hole depths less than 1000m in railway, water, metallurgy, construction, and geology applications

Operation Guidelines

Pre-Operation Checklist

Fill suction pipe, bottom valve and pump body with water before starting
Fill the upper end of pressure gauge buffer with oil
Reciprocate piston twice before starting
Begin operation with no load and gradually increase after normal operation

During Operation

Frequently test mud sand content (must not exceed 10%)
Operate at several speeds during each shift (minimum 30 minutes per speed)
Never change speeds during operation - stop pump before shifting
Stop immediately if abnormal noise, water pressure, or temperature occurs

Shutdown Procedures

Stop pump at no load under normal conditions
For long-term shutdown: open all drain holes, loosen cylinder head, lift bottom valve drain rod
Completely drain all mud and sand from pump body and pipelines
Clean all parts of mud and oil dirt, drain crankcase lubricating oil
Apply anti-rust and anti-corrosion measures for storage

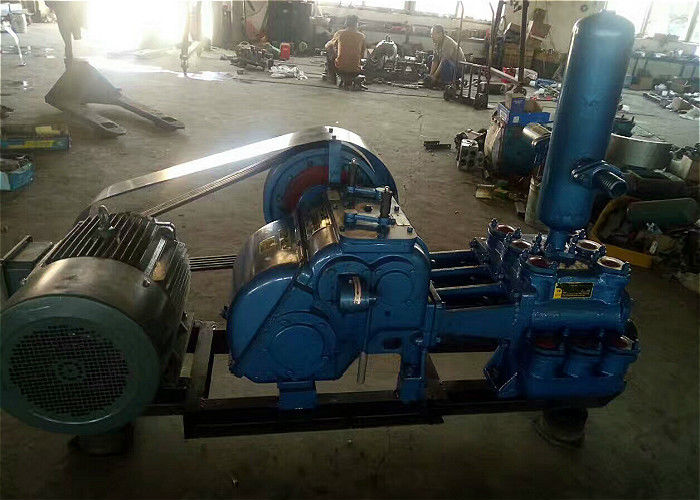

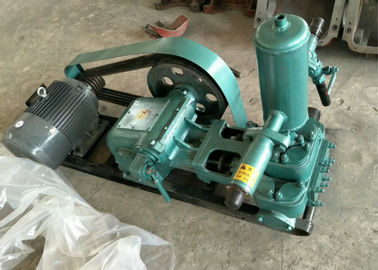

Product Images
