Hydraulic BW 160 Mud Pump Large Power For Water Borehole Drilling

Large Image : Hydraulic BW 160 Mud Pump Large Power For Water Borehole Drilling

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	BW 160

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000000 Sets/month

Contact Now

Detailed Product Description

Product Name:	BW 160 Mud Pump For Borehole Drilling	Structure:	Water Well Mud Pump
Model Number:	BW-160	Warranty:	12 Months
Fuel:	Diesel	Power:	Hydraulic
Feature:	Critical Cleaning / Residue Free	Pressure:	High Pressure
Application:	For Flushing Fluid	Place Of Origin:	Hebei,China
Highlight:	Hydraulic Water Well Mud Pump , Water Borehole Drilling Mud Pump , Borehole Hydraulic Mud Pump

BW 160 Mud Pump - High Power Hydraulic Pump for Water Borehole Drilling

Product Attributes

Attribute	Value
Product Name	BW 160 Mud Pump For Borehole Drilling
Structure	Water Well Mud Pump
Model Number	BW-160
Warranty	12 months
Fuel	Diesel
Power	Hydraulic
Feature	Critical Cleaning / Residue Free
Pressure	High Pressure
Application	For Flushing Fluid
Place of origin	Hebei, China

Product Description

The BW-160 is a horizontal triplex grout pump with exceptional stability and high pressure capability. Designed for water borehole drilling applications, this mud pump features eight gear shifts for precise flow adjustment, large output capacity, and simple operation.

Technical Specifications

Parameter	Value
Type	Horizontal type single-cylinder Double-action pump
Cylinder Diameter	95 mm
Stroke	85 mm
Reciprocate Times	165 times/minute
Displacement	160 L/min
Pressure	1.3 MPa
Volume Efficiency	80%
Input Speed	951 rotations/min
Transmission Shaft Speed	D180/Z5.88kw
Input Pipe Diameter	50mm
Output Pipe Diameter	40mm
Mass (including engine)	200 kg
Dimensions	1110 × 725 × 965 mm

Key Features

Portable design with compact dimensions and lightweight construction
Four adjustable flows and four pressure settings for versatile operation
High-quality pump components with minimal wearing parts for extended service life
Simple operation with flexible and reliable performance
Standardized parts for easy maintenance and replacement
Suitable for geological and engineering exploration in various industries
Effective for borehole depths up to 1000 meters

Operation Guidelines

Before starting, fill suction pipe, bottom valve and pump body with water
Perform two piston reciprocations before starting with no load
Test mud sand content frequently (should not exceed 10%)
For multi-speed pumps, operate each speed separately for at least 30 minutes
Never change speed during operation - stop pump for shifting
Stop immediately if abnormal noise, pressure changes, or temperature rise occurs
For long-term storage, clean all components and apply anti-corrosion measures

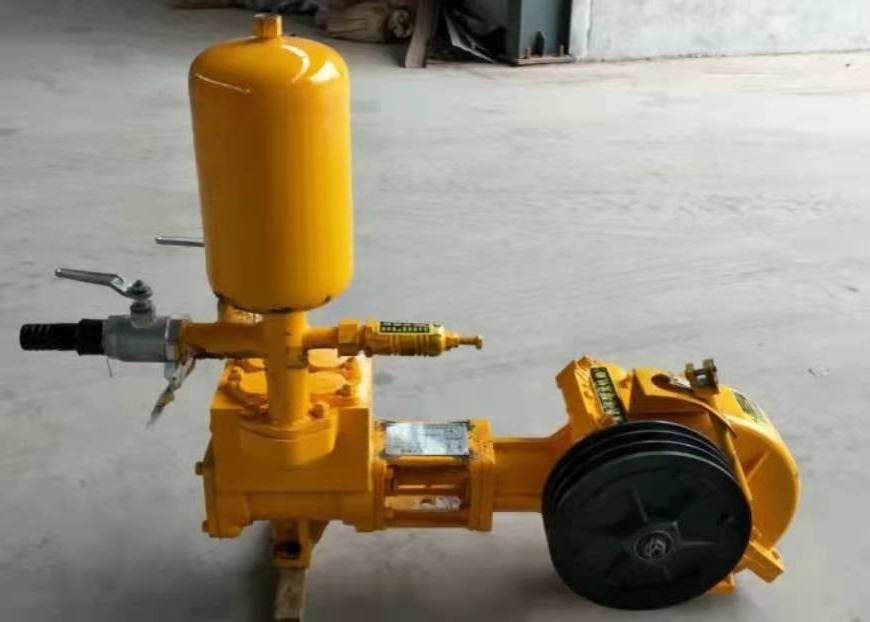

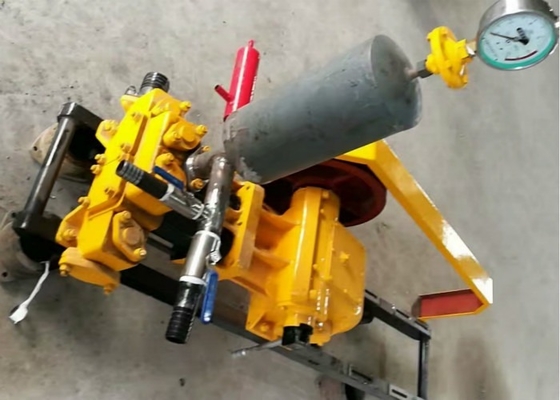

Product Images
