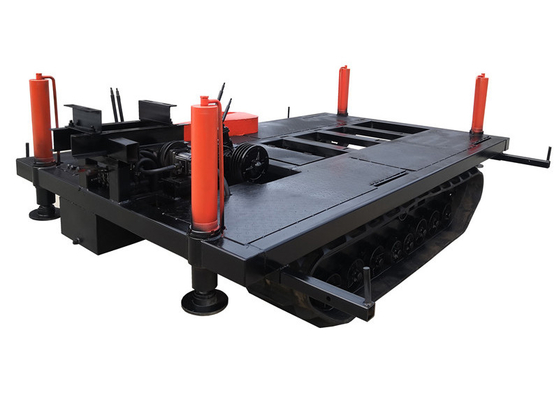

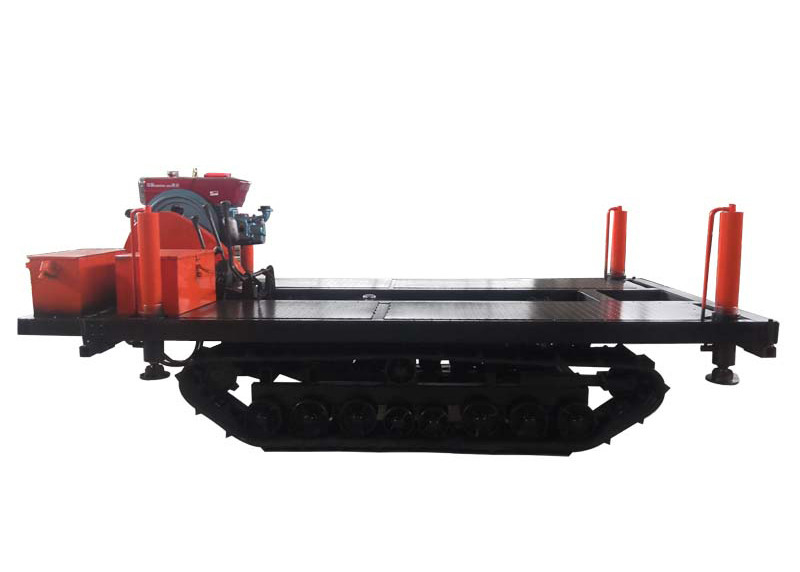

1.5MT Rubber Crawler Track Undercarriage With Automatic Borewell Machine

This Crawler Undercarriage is specially designed for small equipment, featuring a low-speed, high-torque motor for greater driving force. The crawler track and chain plate are fixed with screws for easy maintenance, and it includes a mechanical brake system to prevent slipping on ramps. The crossbeam flange connection allows for easy disassembly and assembly.

The crawler chassis assembly is ideal for special applications including drilling rigs, military vehicles, and construction equipment. The rubber track system offers ground protection, low noise, minimal vibration, and comfortable operation. Suitable for high-speed applications requiring frequent transfers, it provides reliable all-road performance with complete machine status monitoring.

Average service life is approximately 2000 hours, varying with operating conditions. Harsh environments like rocky terrain may reduce lifespan by half, while favorable conditions can double it. Regular inspection of track, chassis, and oil levels is essential for optimal performance.

• Avoid sharp turns on concrete or hard surfaces to prevent track wear and twisting
• Cross ridges at low speed, perpendicular to the ridge, using a springboard for heights over 10cm
• Minimize prolonged operation and sharp turns on gravel roads to reduce track wear
• Avoid working in muddy fields to prevent track slippage and debris accumulation
• Immediately stop and remove any foreign objects caught between track and underframe
• Thoroughly clean tracks after exposure to beach environments or chemical-treated fields
