BW 250 Drilling Mud Pump for 300 Meters Water Well Drilling
Product Specifications
| Attribute |
Value |
| Product Name |
BW 250 Drilling Mud Pump |
| Model |
BW 250 |
| Brand |
Shitan |
| Structure |
Piston Pump |
| Application |
Water well drilling, exploration |
| Weight |
300-500kg |
| Fuel |
Diesel |
| Material |
Stainless Steel |
| OEM |
Acceptable |
| Place of origin |
Hebei, China |
| After sale service |
Video Support |
| Warranty |
12 month |
Product Overview
The BW250 mud pump is a horizontal double cylinder ratio double acting reciprocating piston pump, primarily used for supplying flushing liquid (mud or water) into boreholes during core drilling operations. Designed to accommodate both alloy and steel grain drilling, it features two diameter cylinder liners (φ80mm for alloy/steel grain drilling) to meet various drilling requirements.
Technical Parameters
| Parameter |
Value |
| Model |
BW250 |
| Type |
Horizontal three cylinder ratio single acting reciprocating piston pump |
| Stroke |
100 mm |
| Cylinder diameter |
80 mm | 65 mm |
| Pump speed |
200 | 116 | 72 | 42 rpm |
| Flow rate |
250 | 145 | 90 | 42 l/min |
| Pressure |
2.5 | 4.5 | 6 | 7 Mpa |
| Power |
15 Kw |
| Dimensions |
11560 × 995 × 650 mm |
| Weight |
650 kg |
Key Advantages
- Designed for geological core drilling and prospecting up to 1500 meters depth
- Pumps slurry to coat borehole walls, lubricate drilling tools, and remove debris
- Handles high-viscosity fluids and media with hard suspended particles
- Flow rate proportional to speed with no eddy current formation
- Insensitive to medium viscosity, capable of transporting high-viscosity media
Frequently Asked Questions
Can I request customize service?
Yes, we can customize voltage, material, color, nameplate, and meet other special requirements.
What is the advantage of your factory?
We provide accurate market analysis, reliable investment suggestions, proper machine selection, quick problem solving, and dependable after-sales service to minimize purchasing risks.
What service do you supply after order?
Your order receives full tracking including production monitoring, quality control, logistics coordination, and customs documentation preparation for a complete one-stop service.
How to solve after-sales problems?
Send video or pictures explaining the issue. We provide solutions and take full responsibility for problems caused by us, aiming for long-term customer satisfaction.

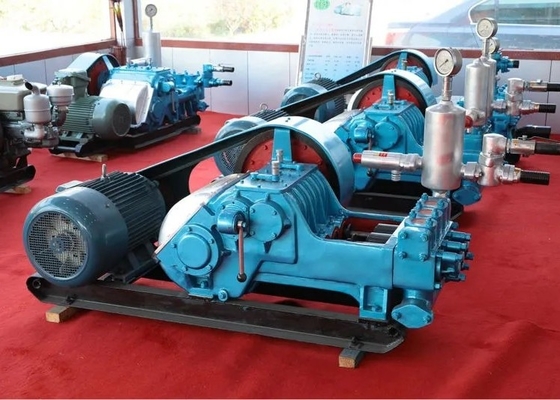

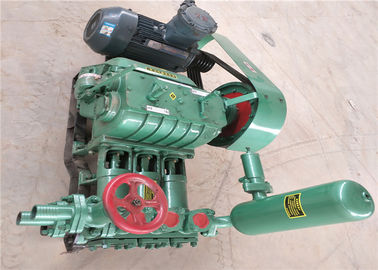

Product Images
