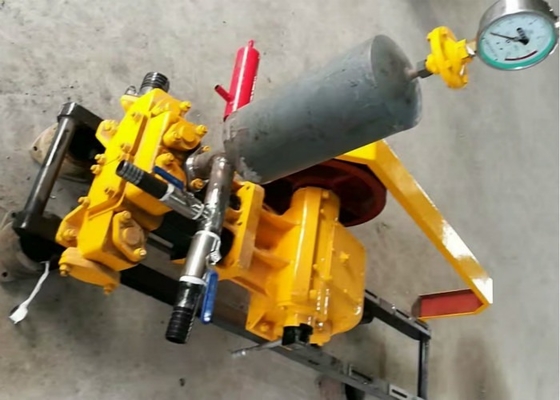

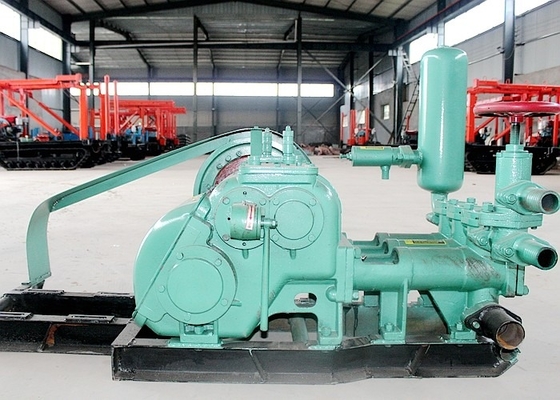

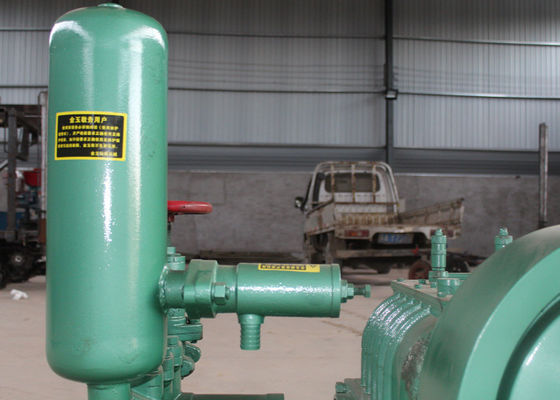

Water Borehole Exploration Coring BW 160 Mud Pump With Diesel Engine

The BW-160 mud pump is a horizontal triplex grout pump with high stability and pressure. Featuring eight gear shifts to adjust flow, it offers large output capacity with simple operation. High-quality pump components ensure less wear, long service life, and low construction costs.

• Portable design with small volume and light weight
• Four flows and four pressures with wide variation range
• Long service life with simple operation
• Flexible and reliable with many standard parts
• Ideal for geological and engineering exploration in various industries
• Suitable for hole depths less than 1000m

• Fill suction pipe, bottom valve and pump body with water before starting
• Reciprocate piston twice before starting; begin with no load
• Test mud sand content frequently (should not exceed 10%)
• For multiple speed pumps, operate each speed separately for ≥30 minutes
• Never change speed during operation - stop pump first
• Stop immediately for any abnormal noise, pressure changes, or temperature rise
• For long-term storage, drain all mud/sand and apply anti-rust measures
