OEM Steel Crawler Track Undercarriage For New Drilling Rig Different Loading Capacities

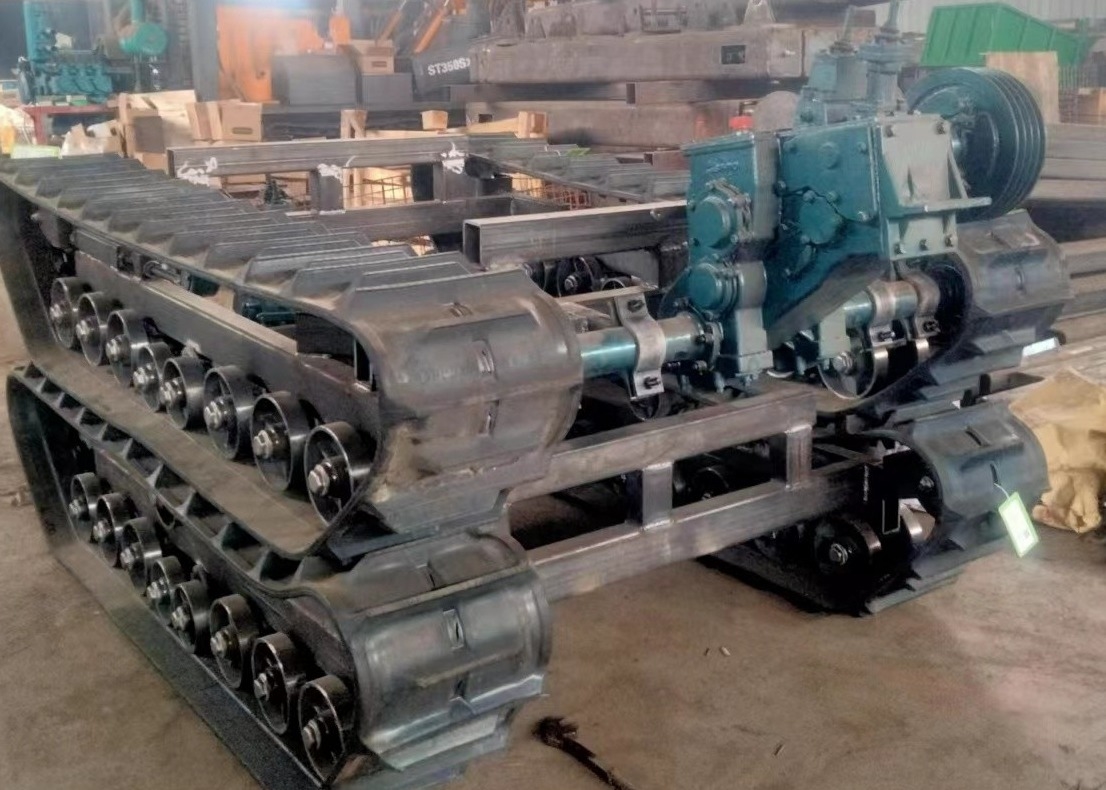

Large Image : OEM Steel Crawler Track Undercarriage For New Drilling Rig Different Loading Capacities

Product Details:

Place of Origin:	Jinzhou ,China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	Shitan T1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	5 days after advance payment
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets/month

Contact Now

Detailed Product Description

Product Name:	OEM Different Loading Capacity Crawler Chassis Track Undercarriage	Loading Capacity:	Customized
Raw Material:	Alloy Steel	OEM:	Acceptable
Power:	Diesel Engine	Brand Name:	Shitan
Warranty:	12 Month	After Sale Service:	Video Support
Application:	Drilling Rigs	Speed:	Customized
Highlight:	Different Loading Crawler Track Undercarriage , Different Loading steel track undercarriage , OEM steel Crawler track

OEM Steel Crawler Track Undercarriage For New Drilling Rig

Custom undercarriage solutions for drilling rigs with different loading capacities, built for durability and performance in demanding conditions.

Product Specifications

Attribute	Value
Product Name	OEM Different Loading Capacity Crawler Chassis Track Undercarriage
Loading Capacity	Customized
Raw Material	Alloy Steel
OEM	Acceptable
Power	Diesel Engine
Brand Name	Shitan
Warranty	12 month
After sale service	Video Support
Application	Drilling Rigs
Speed	Customized

Product Overview

Our crawler undercarriage systems are engineered for various machinery types including engineering equipment, skid steer loaders, agricultural machinery, and garden machinery. The system includes matched spare parts such as track rollers, top rollers, sprockets, idlers, and rubber tracks.

Key Features

Specially designed for small equipment with low speed, high torque motors
Enhanced driving force with screw-fixed track plates for easy maintenance
Equipped with mechanical brake system to prevent rampway slippage
Crossbeam flange connection for simplified disassembly and assembly

Technical Specifications

Type: 1.5T	Bucket size: 15001100500 mm
Size: 240011001400mm	Crawler material: Rubber material
Track ground length: 1500mm	Loading & unloading method: Hydraulic dump
Motor size: 186	Gear type: drawbar
Gear: +3 forward gear +1 reverse gear	Height from bucket bottom to ground: 500 mm
Steering method: Clutch brake steering	Start method: Electric start
Standing slope angle: 35 degree	Crawler width: 720mm

Track System Design

Our metal rubber articulated track system features multiple rubber collars vulcanized onto metal pins and pressed into track shoe pin holes. This innovative design eliminates direct friction between components, resulting in:

Reduced operational noise
Extended service life
Elastic torsion during movement
Superior force distribution through double-pin connection

Applications

This undercarriage system is suitable for a wide range of machinery including:

Excavators and mobile crushers
Drilling rigs and mine machinery
Fire-fighting robots and underwater dredging equipment
Aerial work platforms and transport lifting equipment
Agricultural and garden machinery
Specialized field construction and exploratory machinery

Operational Guidelines

Avoid sharp turns on concrete or hard surfaces to prevent track wear
Cross ridges at low speed, using springboards for heights over 10cm
Minimize prolonged operation on gravel roads to reduce track wear
Avoid working in rotten fields to prevent mud accumulation
Immediately stop and remove any foreign objects between track and underframe
Clean tracks thoroughly after exposure to beach environments or chemicals

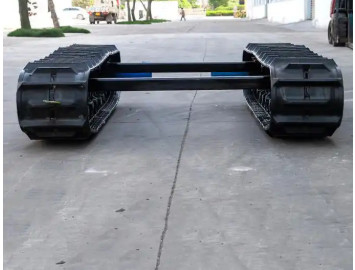

Product Images
