| Brand Name: | Shitan | Product Name: | Agricultural Industry Easy Transportation 3 MT Crawler Track Undercarriage |
|---|---|---|---|
| Loading Capacity: | Customized | Raw Material: | Alloy Steel |
| OEM: | Acceptable | Power: | Diesel Engine |
| Warranty: | 12 Month | After Sale Service: | Video Support |
| Application: | Drilling Rigs | Speed: | Customized |
| High Light: | Agricultural Industry Crawler Track Undercarriage,3MT Crawler Track Undercarriage,Agricultural Industry steel track undercarriage |
||

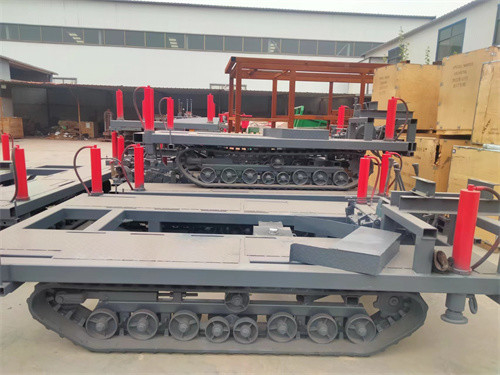

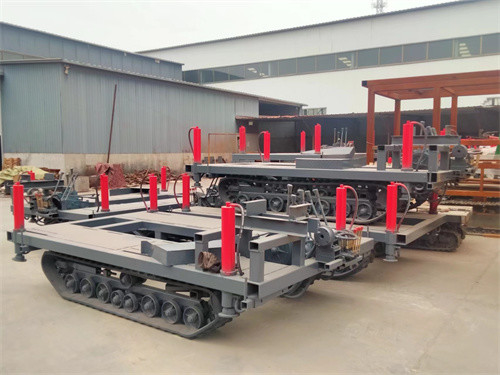

Agricultural Industry Easy Transportation 3 MT Crawler Track Undercarriage
Product Description
This kind crawler complete with steel track,track link , final drive, hydraulic motors, rollers,tension device, crossbeam;Loading capacity can be customized;We can supply both rubber track undercarriage and steel track undercarriage;We can also design and manufacture the track undercarriage walk on water
Product Tech Details
|
Type : 3 T/3.5T |
Bucket size: 2200*1700*500 mm |
|
Size: 3400 *1720*1500mm |
Crawler material: Rubber material |
|
Track ground length: 1600mm |
Loading &unloading method: Hydraulic dump |
|
Motor size: 1115 |
Gear type: drawbar |
|
Gear: +3 forward gear+1 reverse gear |
The height from the bottom of the bucket to the ground: 700 mm |
|
Steering method: Clutch brake steering |
Start method: Electric start |
|
Speed : 0-18 Kilometer per hour |
Crawler Width size: 1630 mm |
Product Advantages
1. suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
2. Integrated welded frame body, solid structure, light weight, the whole chassis is sprayed and rust-proof.
3. The power transmission components are oil-filled and waterproof, long-term reliable, and resistant to water depth of 30 meters.
4. Standard industrial rubber track, durable and easy to replace
5. High-molecular material pulleys (molecular weight greater than 5 million), high strength, strong water resistance, greatly reducing the total weight.
6. Modular design, convenient for users to upgrade and transform.
7. Power system: generator or civil power supply.
8. 2 control modes optional:
(1) Handheld remote controller+normal control box mode: No secondary development, or simply support the remote control receiver
with reserved control channel PWM signal, does not support video and voice channel.
(2) Visual control box mode: 4 wired video signals, 13 PWM steering gear control signals, expansion of underwater equipment can be
customized and developed.
Product Application
Crawler chassis assembly is mainly used for special occasions, such as military parade, tanks, armored vehicles, etc. What are its advantages: rubber track has the advantages of protecting the ground, rubber track walking system, low noise, low vibration, comfortable riding, etc. It is suitable for situations with high speed and many transfers, and achieves the all-road performance. Reliable electrical instruments and complete machine status monitoring system provide reliable assurance for the driver to operate correctly
Product Working Attentions
(1) It is forbidden to turn sharply on the concrete ground or hard road, otherwise the track core will be worn and the belt body will be twisted.
(2) When crossing the ridge, it is necessary to move forward at a low speed at right angles to the ridge. When crossing the ridge with a height of more than 10 cm, it is necessary to use a springboard, otherwise the track may fall off or be damaged.
(3) It is forbidden to walk and turn sharply for a long time on the gravel road, otherwise the track will be accelerated, worn and cracked.
(4) Do not work on rotten fields, otherwise the track will slip and make the traveling mechanism accumulate mud and tangle grass, affecting the normal operation.
(5) If stones or foreign matters enter between the track and the underframe, stop the operation immediately and remove the stones or foreign matters.
(6) After working on the beach or in the field sprinkled with chemicals, the track shall be washed in time.
