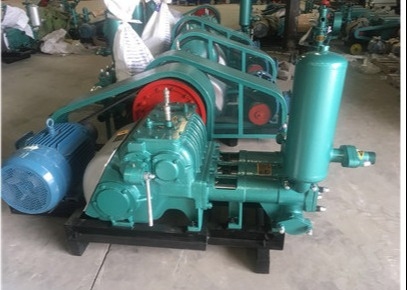

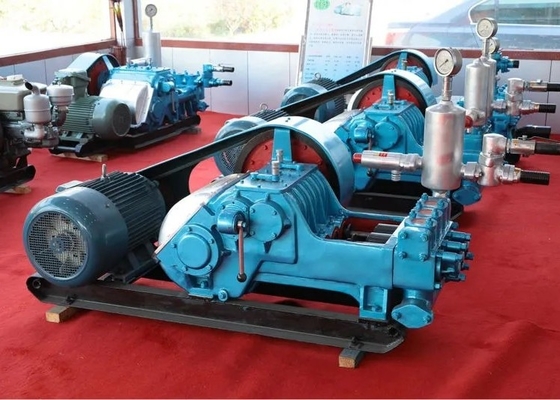

Single Acting Reciprocating Piston BW 250 Drilling Mud Pump Horizontal
Product Specifications
| Attribute | Value |
| Product Name | Piston Pump BW 250 Drilling Mud Pump |
| Model | BW 250 |
| Brand | Shitan |
| Structure | Piston Pump |
| Application | Water well drilling, exploration |
| Weight | 300-500kg |
| Fuel | Diesel |
| Material | Stainless Steel |
| OEM | Acceptable |
| Place of origin | Hebei, China |
| After sale service | Video Support |
| Warranty | 12 month |
Product Overview
The BW-250 mud pump is a horizontal three-cylinder reciprocating single-acting piston pump with two cylinder diameters and four speeds. Designed for water well drilling and exploration, this pump offers adjustable displacement and hole depth capabilities. It is compatible with 1500m drilling rigs and can also be used for cement slurry filling applications.
This energy-efficient pump delivers reliable performance with flexible operation and durable construction. During drilling operations, the mud pump circulates slurry to coat the well walls, lubricate drilling tools, and remove rock debris to the surface. Ideal for geological core drilling and prospecting operations up to 1500 meters.
Technical Parameters
| Model | BW250 |
| Type | Horizontal three cylinder ratio single acting reciprocating piston pump |
| Stroke (mm) | 100 |
| Cylinder diameter (mm) | 80 | 65 | |
| Pump speed | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 |
| Flow (l/min) | 250 | 145 | 90 | 42 | 166 | 96 | 72 | 42 |
| Pressure (Mpa) | 2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 |
| Power (Kw) | 15 |
| Shape size (mm) | 11560*995*650 |
| Weight (kg) | 650 |
Key Features
- Horizontal triplex single-acting reciprocating piston pump design
- Essential equipment for drilling operations to circulate mud water
- Removes rock debris, cools drill bits, and lubricates drilling tools
- Includes two liner sizes: 80mm for standard bore and 65mm for small bore drilling
- Multiple power options: electric motor, diesel engine, or hydraulic motor
- Optional wheel mounting available
- Efficient transport of high-viscosity fluids and media with hard particles
- Flow rate proportional to speed with minimal eddy current formation
Frequently Asked Questions
Are you a manufacturer or a trade company?
We are a professional manufacturer. We thoroughly check every production process and conduct pressure tests for each unit to ensure quality.
How can I get product information and place an order?
Simply contact us with your requirements. We will discuss the details including product specifications, quantities, and shipping destination. Final pricing will be determined through official negotiation.
