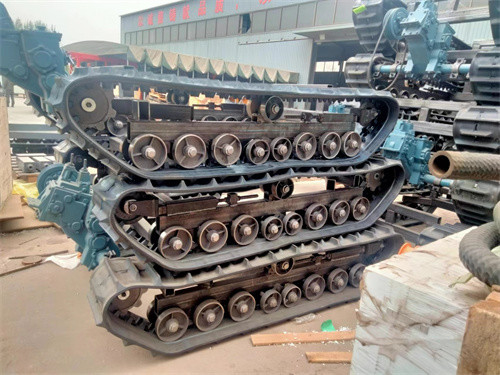

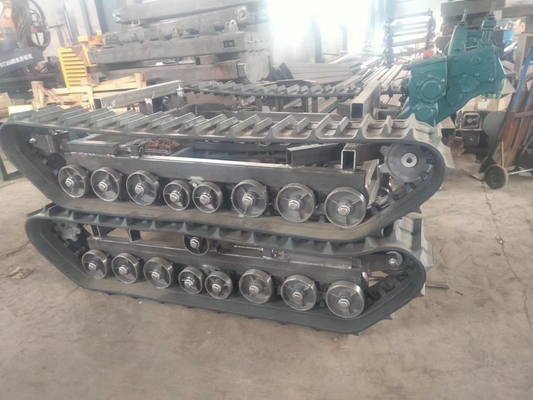

Custom Loading Crawler Track Undercarriage For Carrying Different Drilling Rigs

Customized Loading Capacity Crawler Track Undercarriage For Carrying Different Drilling Rigs

Product Description

The track frame usually adopts a door shaped section with an open bottom and forked ends to facilitate the installation of drive wheels, guide wheels, and supporting wheels. The advantage of this structure is that it can be installed with different lengths and widths of tracks without changing the frame structure according to the size requirements of the drilling rig. By replacing it with a widened crossbeam and an extended track frame, tracks of different lengths and widths can be installed. Its disadvantage is that the section of the track frame is weakened more, with poor rigidity, and cracks are prone to occur at the weakened section.

Product Specification

Product Advantages

Crawler chassis is usually used as an important structural component of equipment, responsible for assuming the operational responsibility of the equipment during application. From the specific application effects it presents in the application, it demonstrates the following obvious advantages in terms of operation:

Operational advantage 1: Good stability. Thanks to the tracked structure, the tracked chassis has excellent stability during operation due to its large contact area with the ground, ensuring a very stable operating effect.

Operational advantage 2: Fast running speed. Although compared to other chassis structures, the tracked chassis may have a lower operating speed, its specific operating performance shows that it can still achieve faster operating speed and fully meet everyone's requirements in terms of operating speed.

Operational advantage three: long-lasting operation. From the specific performance of tracked chassis in application, it can achieve long-lasting operation with its own structural and performance advantages.

In summary, the tracked chassis exhibits advantages such as good stability, fast running speed, and long-lasting operation in terms of operation. With these advantages, it will inevitably exhibit very good operating results

Product Application

Crawler chassis assembly is mainly used for special occasions, such as  parade, tanks, armored vehicles, etc. What are its advantages: rubber track has the advantages of protecting the ground, rubber track walking system, low noise, low vibration, comfortable riding, etc. It is suitable for situations with high speed and many transfers, and achieves the all-road performance. Reliable electrical instruments and complete machine status monitoring system provide reliable assurance for the driver to operate correctly

Due to the different use methods and soil conditions, the working life of rubber track also varies greatly. Generally speaking, its average life is about 2000 hours. However, when working in rock or easily worn environment, the service life will be halved; On the contrary, the working life will be doubled in a better environment. When the user checks the track and chassis, don't forget to drive again to check the oil level and cleanliness. This part is easy to be ignored, and there is usually less oil left.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
