With 300 Meters Rocky Layer Diesel Engine Power Pneumatic Borehole Drilling Rig

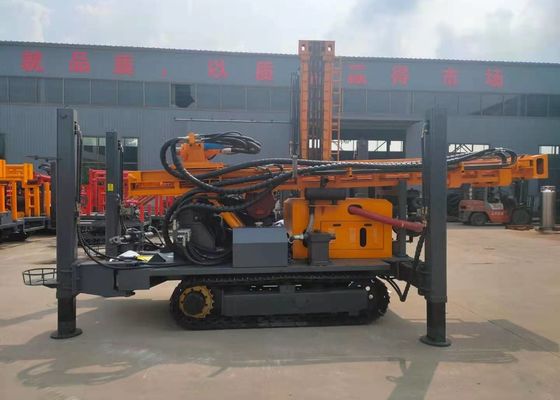

Large Image : With 300 Meters Rocky Layer Diesel Engine Power Pneumatic Borehole Drilling Rig

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST 300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 set/year

Contact Now

Detailed Product Description

Product Name:	Pnumatic Water Well Drilling Rig Machine 300 Meters Depth	Drilling Depth:	300m
Drilling Hole Diameter:	Customized	Walking Speed:	2.5km/h
Climbing Speed:	20m/min	Air Consumption:	16-55m³/min
Shaft Pressure:	4 T	Footage Efficiency:	10-35m/h
Highlight:	deep underground pneumatic borehole drilling equipment , 300meters depth pneumatic borehole drilling equipment , 300 meters depth pneumatic drill rig

300 Meters Rocky Layer Diesel Engine Power Pneumatic Borehole Drilling Rig

Key Specifications

Attribute	Value
Product Name	Pneumatic Water Well Drilling Rig Machine 300 Meters Depth
Drilling Depth	300m
Drilling Hole Diameter	Customized
Walking Speed	2.5km/h
Climbing Speed	20m/min
Air Consumption	16-55m³/min
Shaft Pressure	4 T
Footage Efficiency	10-35m/h

Product Overview

The 300 Meters Deep Waterbore Drilling Machine is an efficient and powerful mud and air pneumatic large water borehole drill rig designed for deep underground drilling operations. This high-performance rig features:

Working wind pressure: 1.25-3.5 Mpa
Drilling rod diameter: 76mm
Maximum drilling depth: 260 meters
Lifting force: 16 T
Constructed from robust materials for durability
Lightweight and easy to operate

Applications

The Shitan ST 300 Pneumatic Drilling Rig is a professional solution for:

Water well drilling
Mining operations
Deep underground construction
Geological exploration
Engineering projects

With great adaptability to different rock formations and terrains, this rig is suitable for both small and large-scale operations.

Technical Details

Brand Name: Shitan

Model Number: ST 300

Place of Origin: Jinzhou, Hebei Province

Weight: 6000kg

Dimensions: 4×1.7×2.2m

Support & Services

We provide comprehensive support for our drilling rigs:

Installation & maintenance services
Troubleshooting assistance
Parts replacement
Operator training

Packaging & Shipping

The drilling rig is securely packaged in a wooden crate lined with foam, secured with metal strapping, and clearly labeled for safe transportation to your destination.

Frequently Asked Questions

What is the Brand Name and Model Number of the Pneumatic Drilling Rig?

The Brand Name is Shitan and the Model Number is ST 300.

Where is the Place of Origin of the Pneumatic Drilling Rig?

The Place of Origin is Jinzhou, Hebei Province.

What are the main features of the Pneumatic Drilling Rig?

The Pneumatic Drilling Rig has high efficiency, strong power, and low noise.

What is the capacity of the Pneumatic Drilling Rig?

The capacity of the Pneumatic Drilling Rig is up to 300m.

How is the Pneumatic Drilling Rig powered?

The Pneumatic Drilling Rig is powered by air compressors.

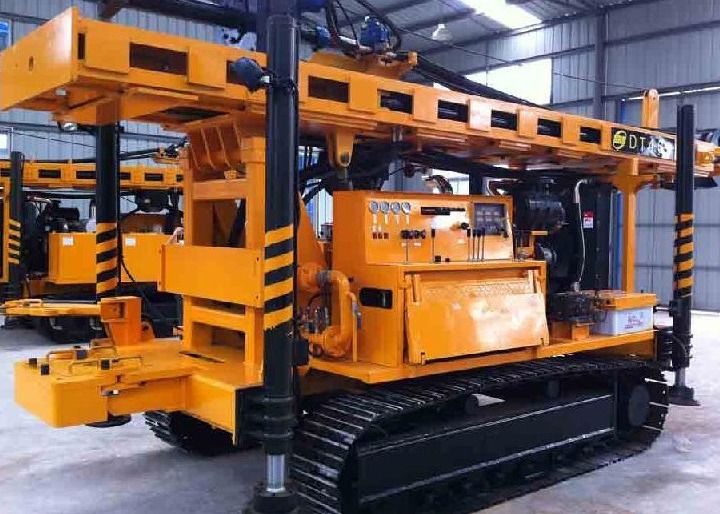

Product Images
