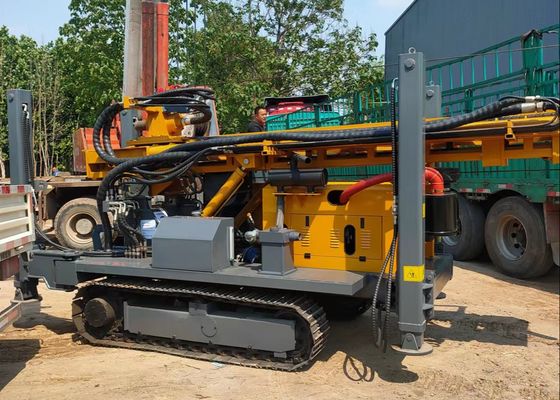

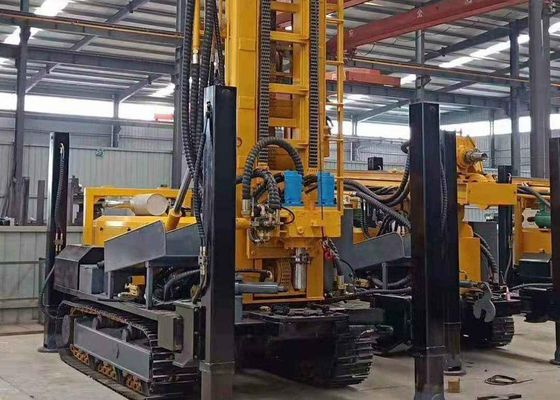

Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force

Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force
Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force
video play

Large Image :  Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force

Product Details:
Place of Origin: Jinzhou ,Hebei Province
Brand Name: Shitan
Certification: ISO
Model Number: ST 450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Customzied Quotation list
Packaging Details: 1*20 FCL
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 set/year
Contact Now
Detailed Product Description
Product Name: Pneumatic Water Well Drilling Rig Machine 450 Meters Depth 30 MT Lifting Force Key Words: 450 Meters Drilling Rig Machine ,deep Borehole Drilling
Drilling Depth: 450 Meters Drilling Hole Diameter: 105-325mm
Shaft Pressure: 6 T Weight: 10 MT
Working Wind Pressure: 1.25-3.5 Mpa Air Consumption: 16-55m³/min
Highlight:

rock pneumatic drilling rig

,

450 meters depth pneumatic drilling rig

,

450 meters depth pneumatic drill rig

Pneumatic Water Well Drilling Rig Machine - 450 Meters Depth with 30 MT Lifting Force
Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force 0 Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force 1 Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force 2 Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force 3 Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force 4 Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force 5 Water Well Rock Pneumatic Drilling Rig Machine 450 Meters Depth 30 Mt Lifting Force 6
Key Specifications
Attribute Value
Drilling Depth 450 meters
Drilling Hole Diameter 105-325mm
Shaft Pressure 6 T
Weight 10 MT
Working Wind Pressure 1.25-3.5 Mpa
Air Consumption 16-55m³/min
Walking Speed 5km/h
Product Overview
The Shitan ST-450 Pneumatic Drilling Rig is a professional-grade rock drill rig designed for both mud and air pneumatic drilling operations. With its powerful 30T lifting force and drilling depth capacity of 450 meters, this rig is ideal for large-scale water borehole drilling projects.
Key Features
  • Drilling diameters from 105mm to 325mm
  • Air consumption range of 16m³/min to 55m³/min
  • Footage efficiency of 10m/h to 35m/h
  • 3m drilling rod length for deep penetration
  • Mounted on wheeled trailer for easy site-to-site mobility
  • Climbing speed of 20m/min for efficient operation
Applications
The ST-450 is designed for demanding applications including underground mining operations, construction sites, and large-scale drilling projects. Its robust construction and pneumatic power make it suitable for blast pneumatic drilling, water borehole drilling, and other challenging drilling operations.
Manufacturer Details
Brand Name: Shitan
Model Number: ST 450
Place of Origin: Jinzhou, Hebei Province
Technical Support & Service
Our dedicated technical support team provides comprehensive service for all pneumatic drilling rigs, including maintenance, repair, and troubleshooting. We offer expert advice and assistance to ensure your rig operates at peak performance, backed by a comprehensive warranty.
Packaging & Shipping
The rig is securely packed in plywood cases with protective plastic film or bubble wrap to prevent damage during transit. Shipping options include air or sea freight, with all necessary documentation included.
Frequently Asked Questions
What is the power source for this drilling rig?
The ST-450 operates using compressed air as its power source.
What materials is the rig constructed from?
The drilling rig is built from durable metal alloys for long-lasting performance.
Is customization available for this model?
Yes, we offer customized configurations to meet specific project requirements.
