Max Lifting Capacity Rock Drilling Machine Depth 140-200 Meters

Large Image : Max Lifting Capacity Rock Drilling Machine Depth 140-200 Meters

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	XY-1,XY-1A,GK200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	exported packing
Delivery Time:	5 days after advance payment
Payment Terms:	T/T, Western Union
Supply Ability:	2000 set/year

Contact Now

Detailed Product Description

Product Name:	XY-1 A Borehole Drilling Machine	Key Words:	Borehole Drilling Machine ,Water Borehole Drilling ,Exploration Borehole Coring Drilling Machine
Max. Lifting Capacity:	15KN	Weight:	Around 600kg
OEM Design:	Wheels Mounted Or Optional	Drilling Depth:	150m
Hoisting Drum Revolution:	121、76、36（r/min)	Drilling Diameter:	150mm
Highlight:	large Lifting Capacity borehole drilling machine , Depth 140 M borehole drilling machine , Depth 140 M borehole drilling equipment

XY-1 A Borehole Drilling Machine - Max Lifting Capacity 15KN, Depth 150m

Key Specifications

Attribute	Value
Product Name	XY-1 A Borehole Drilling Machine
Max. Lifting Capacity	15KN
Weight	Around 600kg
OEM Design	Wheels Mounted Or Optional
Drilling Depth	150m
Hoisting Drum Revolution	121, 76, 36 (r/min)
Drilling Diameter	150mm

Product Overview

The XY-1 A Borehole Drilling Machine is a versatile and powerful drilling rig designed for various applications including water well drilling, geological investigation, and mining operations. With a lightweight design (approximately 600kg) and optional wheel mounting, it offers excellent mobility for different job sites.

Key Features

Powerful 15KN lifting capacity
150m maximum drilling depth
150mm drilling diameter
Multiple hoisting drum speeds (121, 76, 36 r/min)
Optional wheel-mounted design for mobility
Diesel engine powered
75-90° drilling angle range

Technical Parameters

Parameter	Value
Drilling Angle	75-90°
Power Source	Diesel Engine
Max. Lifting Capacity	15KN
Drilling Depth	150m
Hoisting Drum Revolution	121, 76, 36 (r/min)
Weight	Around 600kg

Applications

Water well drilling for residential and commercial use
Geological investigation and sampling
Mining exploration and core sampling
Hydrogeological surveys
Construction site investigation

Customization Options

The XY-1 A can be customized with wheel-mounted configurations for enhanced mobility. Manufactured by Shitan in Jinzhou, Hebei Province, this drilling rig is built with durable materials to withstand harsh drilling conditions while maintaining precision and productivity.

Support & Services

We provide comprehensive support including spare parts availability, maintenance services, and warranty coverage. Our team offers technical assistance to ensure your drilling operations continue smoothly with minimal downtime.

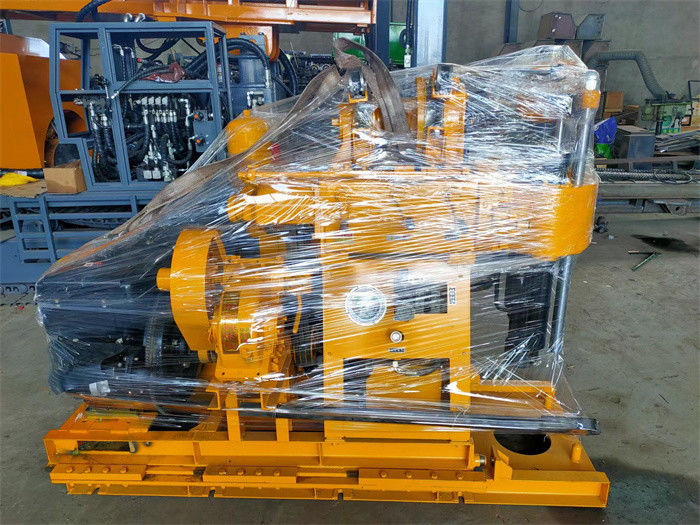

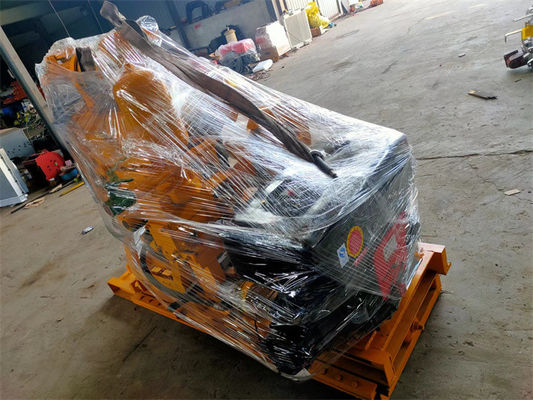

Packaging & Shipping
