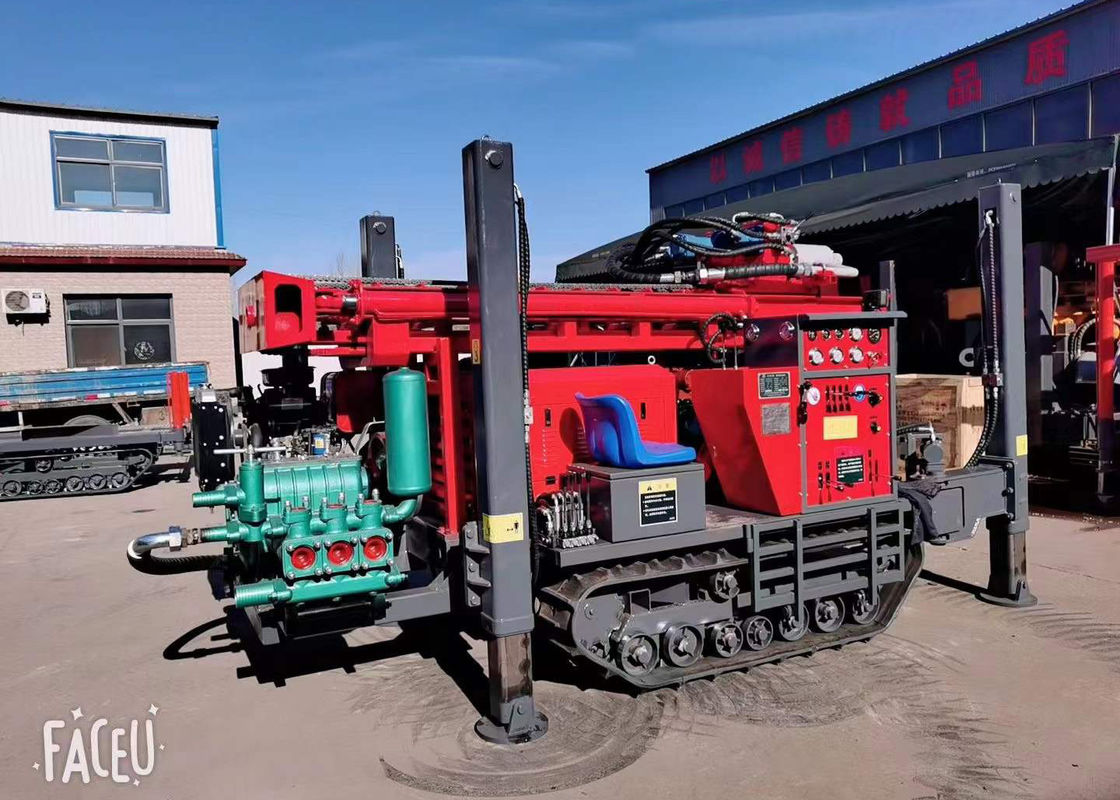

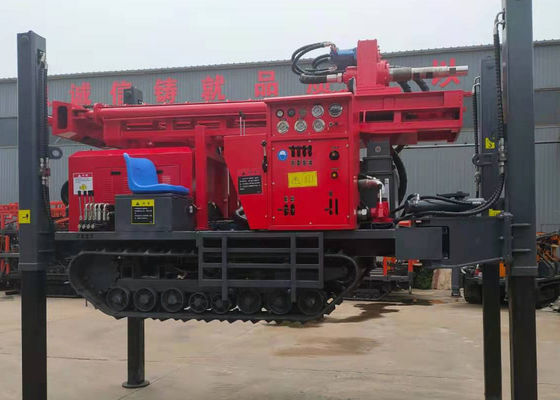

20m/Min Climbing Speed Blast Pneumatic Drilling Rig Large Equipment Depth 200m
Product Overview
The Pneumatic Drilling Rig is a powerful and efficient machine designed for underground mining and drilling operations. With a Shaft Pressure of 4 T and Lifting Force of 18 T, this machine is capable of drilling through hard rock and achieving depths of up to 300 meters. It is essential equipment for any mining or construction project requiring deep waterbore drilling.
Key Specifications
| Attribute |
Value |
| Product Name |
Pneumatic Water Well Drilling Rig Machine 200 Meters Depth |
| Drilling Rod Diameter |
76mm |
| Climbing Speed |
20m/min |
| Footage Efficiency |
10-35m/h |
| Drilling Depth |
200m |
| Lifting Force |
18 T |
| Dimension |
3.8*1.8*2.3m |
| Weight |
5500kg |
| Working Wind Pressure |
1.25-3.5 Mpa |
| Air Consumption |
16-55m³/min |
Key Features
- Underground DTH Pneumatic Drill Machine designed for mining operations
- Blast Pneumatic Large Drill Equipment with powerful drilling capabilities
- 300 Meters Deep Waterbore Drilling capacity
- High climbing speed of 20m/min for efficient operations
- Versatile drilling diameter range of 105-300mm
- Wheels mounted for easy mobility at job sites
Applications
Underground mining and tunneling
Waterbore drilling for construction
Exploration drilling for minerals
Geotechnical soil investigation
Product Details
Brand: Shitan (ST 200)
Origin: Jinzhou, Hebei Province
Minimum Order: 1 set
Delivery Time: 10-15 days after payment
Annual Capacity: 2000 sets
The Pneumatic Drilling Rig is manufactured with superior quality materials and advanced technology, making it highly efficient, durable, and reliable for various drilling conditions. Its versatility makes it suitable for remote or rugged areas where traditional drilling methods are not feasible.
Packaging & Shipping
The rig is carefully packaged in sturdy wooden boxes with protective materials to ensure safe transportation. We offer various shipping options including domestic carriers and international freight forwarders. Customers receive tracking information upon shipment.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
