Hydraulic Dth Boring Machine 150 Meters For Deep Underground Borehole

Large Image : Hydraulic Dth Boring Machine 150 Meters For Deep Underground Borehole

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST-150

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	customized quotation list
Packaging Details:	wooden box
Delivery Time:	7 days after payment
Payment Terms:	TT,Western union
Supply Ability:	1000 or 2000 set per year

Contact Now

Detailed Product Description

Product Name:	ST-150 Water Well Drilling Rig	Key Words:	,drilling Rig Machine,water Drilling Machine,150 Meters Water Well Drilling ,Water Borehole Drilling Rig,rig Drilling,
Drilling Rod:	Φ60mm	Drilling Depth:	100m
Drilling Method:	Mud Drilling	Lifting Capacity:	11 MT
Drilling Diameter:	300mm	Weight:	1.5 MT
Highlight:	Easy Operation Water Well Drilling Rig , 150m Water Well Drilling Rig , Mud Water Well Borehole Drilling Rig

ST-150 Water Well Drilling Rig

The ST-150 Hydraulic DTH Boring Machine is designed for deep underground borehole drilling up to 150 meters, offering exceptional performance in various geological conditions.

Key Specifications

Attribute	Value
Drilling Depth	100m
Drilling Diameter	300mm
Drilling Method	Mud Drilling
Drilling Rod	Φ60mm
Lifting Capacity	11 MT
Weight	1.5 MT
Power Supply	18.5 KW (380V/50HZ)

Product Overview

The ST-150 Water Well Drilling Rig combines high-quality materials with advanced hydraulic technology for durable, reliable, and efficient drilling operations. Its powerful diesel engine and optimized hydraulic system deliver maximum drilling speed with minimal energy loss.

Key Features

Hydraulic system designed for energy efficiency and smooth operation
Capable of drilling through hard rock, sand, clay, and various soil types
Advanced safety features including emergency stop switches and automatic shutdown
User-friendly control panel for easy operation monitoring
Easy maintenance with accessible components

Applications

Water Well Drilling: Ideal for drinking water, irrigation, and industrial water supply wells
Groundwater Extraction: Efficiently penetrates tough ground conditions for groundwater access
Agricultural Use: Perfect for irrigation wells to support crop health and growth

Product Details

Brand: Shitan
Model: ST-150
Origin: Jinzhou, Hebei Province
Certification: ISO
Packaging: Wooden box
Delivery: 7 days after payment

Support & Services

Our comprehensive support includes 24/7 technical assistance, on-site training, regular maintenance services, and readily available spare parts to ensure optimal equipment performance throughout its lifespan.

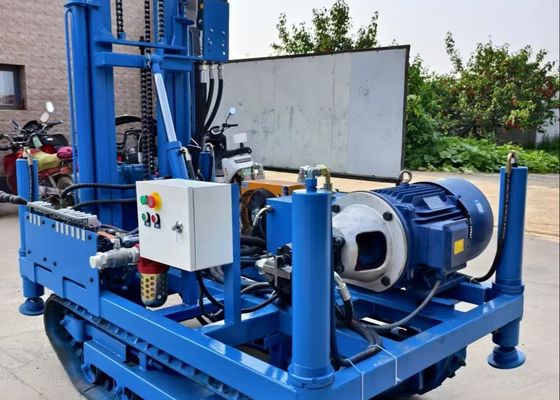

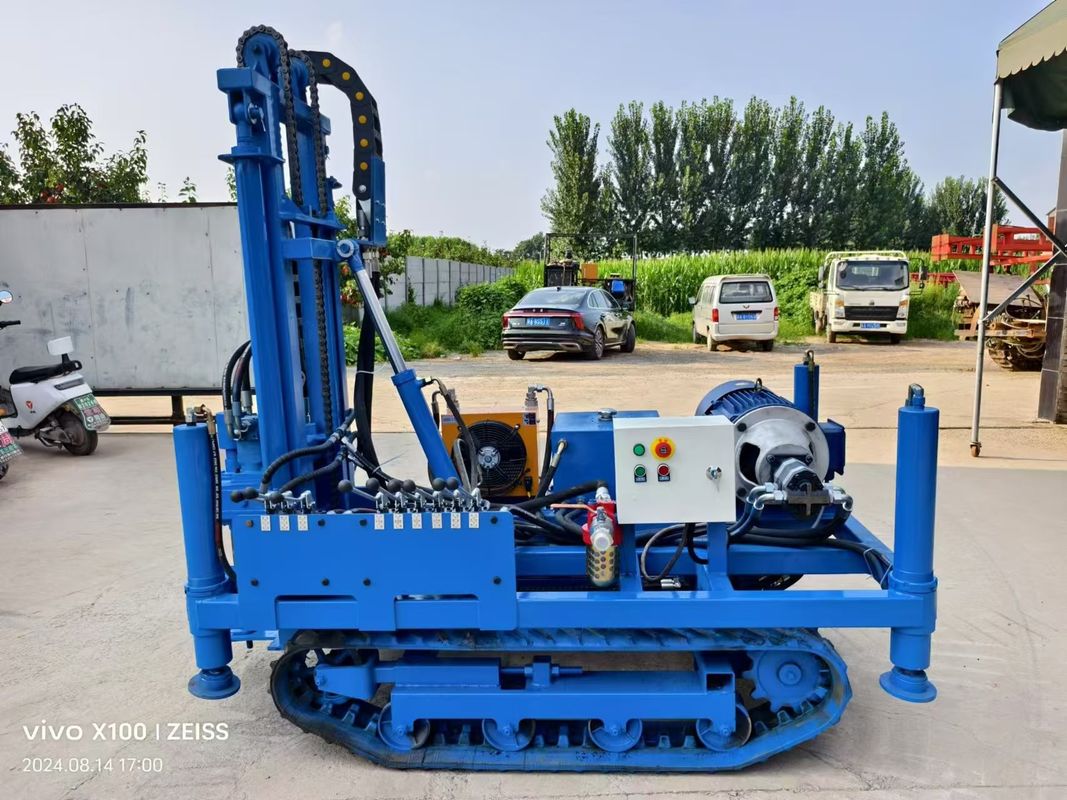

Product Images
