Product Description:

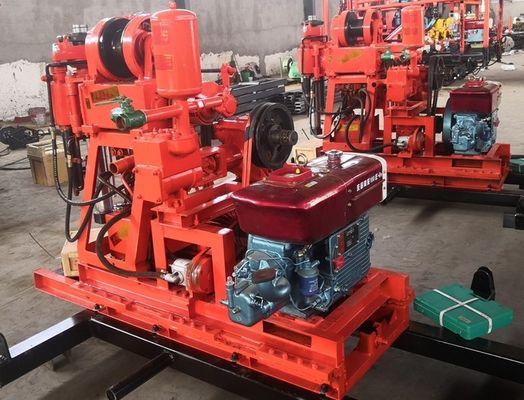

XY-1A drilling rig is a high-speed and lightweight drilling rig with hydraulic feed, mainly used for drilling holes in solid mineral deposits, engineering geological exploration, and inspection holes for various concrete structures. Diamond, alloy, and steel drill bits can be selected for drilling according to different geological formations.
Our Diamond Soil Exploration Drill Rig is equipped with a powerful 18hp diesel engine, ensuring maximum performance and efficiency. This engine is highly reliable, providing consistent power to the machine even in the most challenging conditions
Main paramete
| Product Name |
XY-1A Water Well Drilling Rig /Core Drilling Rig |
| Drilling Depth |
Max 150m |
| Drilling Hole Diameter |
Max 150mm |
| Drilling Rod Diameter |
42mm/50mm |
| Power |
diesel engine |
| Size |
1620*970*1560mm |
| Rated speed |
2000r/min |
| Rated power |
12.1kw |
Features:
- Oil pressure feeding mechanism to improve drilling efficiency
- Hexagonal active drilling rod, implementing non-stop replacement
- Vertical shaft with octagonal structure, suitable for high torque transmission
- The bottom pressure gauge indicates pressure, making it easy to grasp the situation inside the hole
- Compact structure, small volume, light weight, strong decomposability, easy to relocate, suitable for work in plains or mountainous areas.
- Suitable for engineering geological survey of industrial and civil construction, railway,hydropower, transportation, bridge,dam foundation and other buildings.
- Customized to your specific needs. We offer a range of options, including different drilling depths and power supply options.

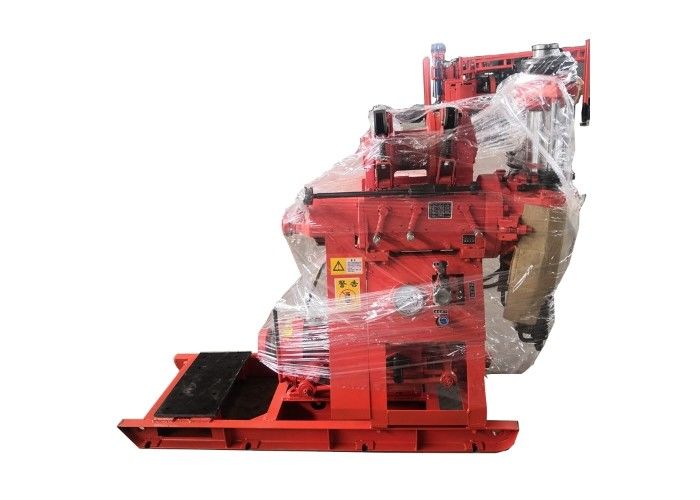

Packing and Shipping:
Product Packaging:
- Soil Test Drilling Machine
- Instruction Manual
- Drill Bits/Drill pipe,,mud pump and others
Shipping:
- Product will be shipped within 3-7 business days after order confirmation.
- Shipping cost will be calculated based on the delivery address.
- Delivery time may vary depending on the destination.
- Tracking information will be provided once the product is shipped.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
