Deep Hydraulic Rotary Drilling Rig For Hard Rock Layer/Geological Testing

Large Image : Deep Hydraulic Rotary Drilling Rig For Hard Rock Layer/Geological Testing

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	GK-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	customized quotation list
Packaging Details:	wooden box
Delivery Time:	7 days after payment
Payment Terms:	TT,Western union
Supply Ability:	1000 or 2000 set per year

Contact Now

Detailed Product Description

Key Words:	Water Well Drilling /Borehole Drilling Rig	Drilling Diameter:	75-300mm
Drilling Depth:	30-200m	Drill Pipe Diameter:	60/50/42mm
Drilling Inclination Angle:	90°-75°	Vertical Shaft Speed（r/min）:	115/230/505/1010
Lifting Capacity:	15KN	Vertical Axis Stroke:	450mm
Oil Pump Model:	Gear Oil Pump	Power:	Diesel Engine /electric Motor
Power Output:	Diesel Engine 16.2kw /electric Motor11kw	Power Speed（r/min）:	Diesel Engine 2200 /electric Motor 1460
Size:	14336971273mm	Weight:	525kg
Drilling Method:	Mud Pump	Application:	Construction Works , Energy & Mining
Highlight:	truck mounted water well drilling rig , deep portable water well drilling rig , borehole water well drilling rig

Deep Hydraulic Rotary Drilling Rig For Hard Rock Layer/Geological Testing

Product Specifications

Key Words	Water Well Drilling / Borehole Drilling Rig
Drilling diameter	75-300mm
Drilling depth	30-200m
Drill pipe diameter	60/50/42mm
Drilling inclination angle	90°-75°
Vertical shaft speed (r/min)	115/230/505/1010
Lifting capacity	15KN
Vertical axis stroke	450mm
Oil pump model	Gear oil pump
Power	Diesel engine / electric motor
Power output	Diesel engine 16.2kw / electric motor 11kw
Power speed (r/min)	Diesel engine 2200 / electric motor 1460
Size	14336971273mm
Weight	525kg
Drilling method	mud pump
Application	Construction works, Energy & Mining

Product Overview

The GK200 drilling rig is a high-speed, lightweight hydraulic feed drilling rig designed for solid mineral deposit drilling, engineering geological exploration, and inspection holes for various concrete structures. It accommodates diamond, alloy, and steel drill bits to match different geological formations.

With a final hole diameter of 75mm, the rated drilling depth reaches 200m (maximum depth not exceeding 110% of each drilling depth). The rated opening diameter is 110mm, extendable to a maximum of 300mm.

Key Features

Oil pressure feeding mechanism enhances drilling efficiency
Hexagonal active drilling rod enables non-stop replacement
Octagonal vertical shaft structure for high torque transmission
Bottom pressure gauge provides real-time hole pressure monitoring
Compact, lightweight design with strong decomposability for easy relocation
Ideal for industrial/civil construction, railways, hydropower, transportation, bridges, and dam foundations
Customizable drilling depths and power supply options available

Technical Support & Services

Our comprehensive support package includes:

Expert installation, maintenance, and repair services for all rig components
Operator training covering setup, drilling, maintenance, and troubleshooting
Detailed technical documentation including specifications and operating procedures
24/7 technical support for prompt issue resolution

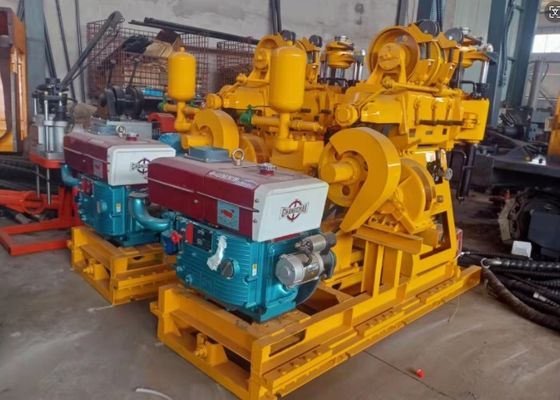

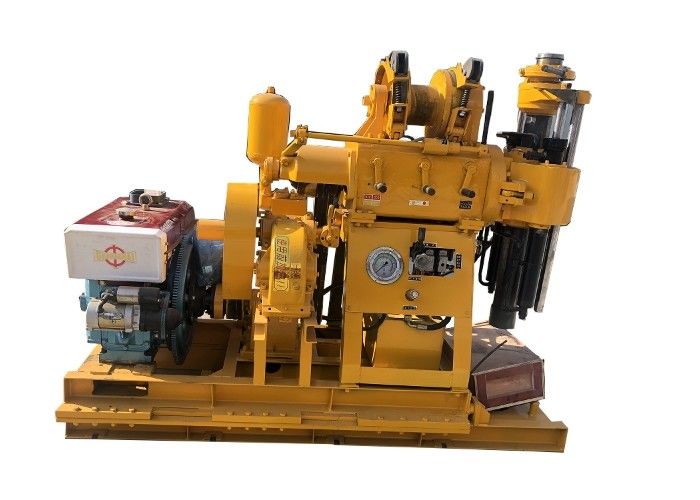

Product Images
