Product Description:

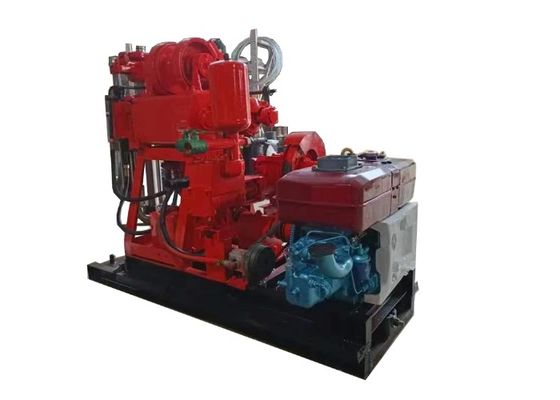

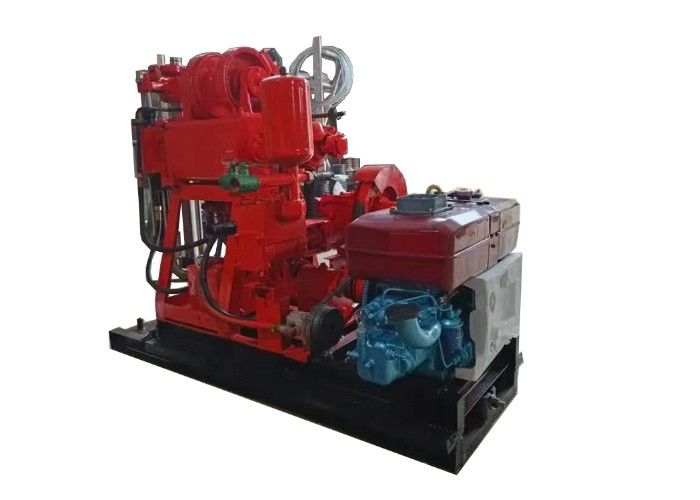

The GK200 drilling rig is a high-speed and lightweight drilling rig with hydraulic feed, mainly used for drilling holes in solid mineral deposits, engineering geological exploration, and inspection holes for various concrete structures. Diamond, alloy, and steel drill bits can be selected for drilling according to different geological formations.
When the final hole diameter is 75mm, the rated drilling depth is 200m, and the maximum depth shall not exceed 110% of each drilling depth. The rated opening diameter is 110mm, and the maximum allowable opening diameter is 300mm.
Main parameter:
| Product Name |
GK-200 Water Well Drilling /Borehole Drilling Rig |
| Drilling Diameter |
75-300mm |
| Drilling depth |
200-30m |
| Drilling method |
mud pump |
| Power |
Diesel engine /electric motor |
| Size |
1433*697*1273mm |
| Weight |
525kg |
| Origin |
China |
Features:
- Oil pressure feeding mechanism to improve drilling efficiency
- Hexagonal active drilling rod, implementing non-stop replacement
- Vertical shaft with octagonal structure, suitable for high torque transmission
- The bottom pressure gauge indicates pressure, making it easy to grasp the situation inside the hole
- Compact structure, small volume, light weight, strong decomposability, easy to relocate, suitable for work in plains or mountainous areas.
- Suitable for engineering geological survey of industrial and civil construction, railway,hydropower, transportation, bridge,dam foundation and other buildings.
- Customized to your specific needs. We offer a range of options, including different drilling depths and power supply options.
Support and Services:
Our Water Well Drilling Rig product comes with comprehensive technical support and services, including:
- Installation and assembly guidance
- Operator training and certification
- Maintenance and repair services
- Remote monitoring and diagnostics
- Spare parts and accessories
We are committed to ensuring the reliable and efficient operation of our drilling rig product, and our technical experts are always available to provide assistance and support to our customers.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
