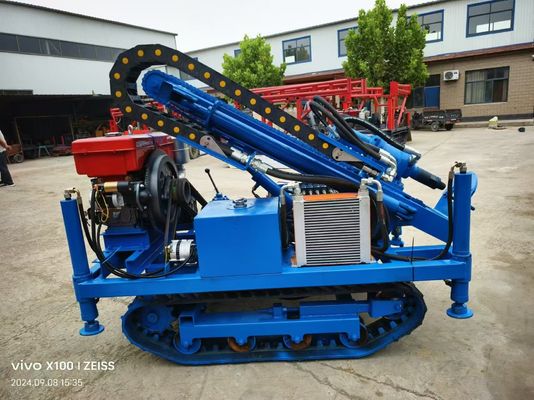

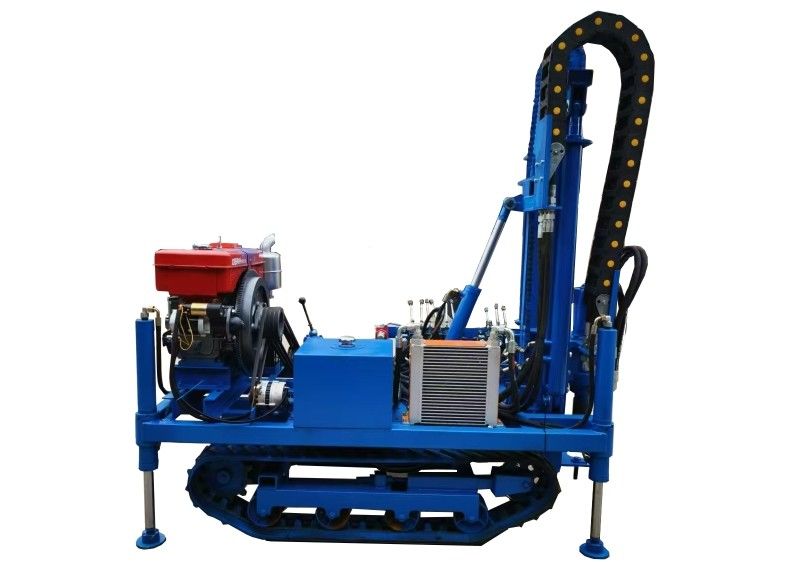

300mm Diameter DTH Drilling Rig For Photovoltaic Pile

Large Image : 300mm Diameter DTH Drilling Rig For Photovoltaic Pile

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST150

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	7 days after payment
Payment Terms:	TT,Western Union
Supply Ability:	1000 Sets Monthly

Contact Now

Detailed Product Description

Drill Pipe Diameter:	60mm	Motor Power:	28HP
Weight:	1.5T	Warranty:	12 Months
Rotating Torque:	3000	Color:	Blue
Product Name:	ST 150 Engineering Drilling Rig Machine	Material:	Steel
Highlight:	Powerful Engineering Drilling Rig , 28HP Engineering Drilling Rig , Engineering Drilling Rig Machine

300mm Diameter DTH Drilling Rig For Photovoltaic Pile

Product Specifications

Attribute	Value
Drill Pipe Diameter	60mm
Motor Power	28HP
Weight	1.5T
Warranty	12 Months
Rotating Torque	3000
Color	Blue
Product Name	ST 150 Engineering Drilling Rig Machine
Material	Steel

Product Overview

The ST150 down hole drilling rig features an advanced hydraulic system mechanism for faster drilling operations and improved work efficiency. Designed to adapt to various geological environments and complex working conditions, it handles different soil and rock types to meet diverse engineering requirements. Ideal for construction, mining, roads, water conservancy, and photovoltaic pile projects.

Key Features

High rotating torque of 3000 ensures efficient drilling in tough terrain, penetrating hard rocks and soil with ease
Maximum lifting force of 11T for handling heavy drilling equipment and materials, enhancing versatility
Powered by a robust 28HP motor that delivers reliable performance for demanding drilling operations

Technical Parameters

Parameter	Value
Product Name	ST 150 Engineering Drilling Rig Machine
Rotation Speed	80r/min
Motor Power	28HP
Weight	1.5T
Maximum Lifting Force	11T
Material	Steel
Rotating Torque	3000
One Push Length	1500mm

Support and Services

24/7 technical support via phone and email
On-site technical assistance and troubleshooting
Regular maintenance and repair services
Remote monitoring and diagnostic services
Training for operators and maintenance personnel
Customized service agreements available

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
