180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine

Large Image : 180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Model Number:	ST-180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	customized quotation list
Packaging Details:	wooden box
Delivery Time:	10 -15 days after payment
Payment Terms:	TT,western union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Walking Speed:	2.5km/h	Product Name:	Pnumatic Water Well Drilling Rig Machine
Drilling Depth:	180m	Lifting Force:	16 T
Engine:	Xidong 55 KW	Footage Efficiency:	10-35m/h
Working Wind Pressure:	1.25-3.5 Mpa	Drilling Diameter:	105-305mm
Highlight:	180m Pneumatic Water Well Drilling Rig , 55KW Pneumatic Water Well Drilling Rig , Heavy pneumatic crawler drill

180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel Engine

Key Features

Drilling Depth: 180 meters
Drilling Diameter Range: 105-305mm
Powerful Xidong 55 KW Diesel Engine
Lifting Capacity: 16 Tons
Footage Efficiency: 10-35m/h
Compact and Mobile Design (3.4×1.8×2.3m)
Multiple Drilling Methods: Top drive hydraulic rotation, DTH impactor, or Mud drilling
Rubber Crawler Mounted for Enhanced Mobility

Technical Specifications

Parameter	Value
Drilling Hole Diameter	105-305mm
Drill Pipe Length	3m
Drill Pipe Diameter	76mm
Shaft Pressure	4T
Lifting Speed	20m/min
Fast Forward Speed	40m/min
Maximum Turning Torque	5900
Maximum Rotation Speed	85/170r/min
Air Consumption	16-55m³/min
Working Wind Pressure	1.25-3.5 Mpa
Overall Dimensions	3.4×1.8×2.3m
Weight	4.5T
Walking Speed	2.5km/h

Product Overview

The ST 180 water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment designed for industrial and civil applications. Its compact structure and mobile design make it particularly suitable for water intake projects in mountainous and rocky terrains.

This versatile rig is ideal for various applications including water well drilling, geothermal drilling, and industrial drilling projects, offering fast advancing capability and wide application range.

Support & Services

Our pneumatic drilling rig comes with comprehensive technical support and service package to ensure optimal performance:

On-site installation and commissioning support
Ongoing maintenance and repair services
Operator training programs
24/7 technical support and troubleshooting
Complete range of spare parts and accessories
Fast and reliable delivery of components
Customization options available

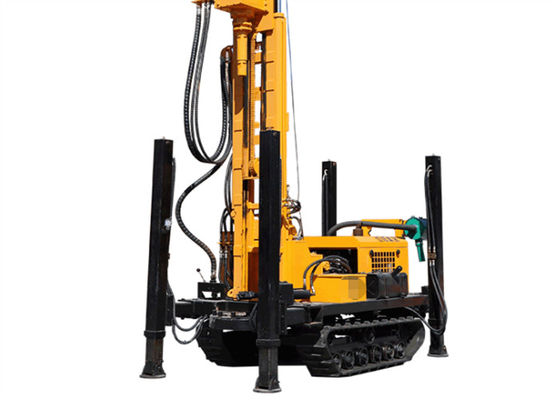

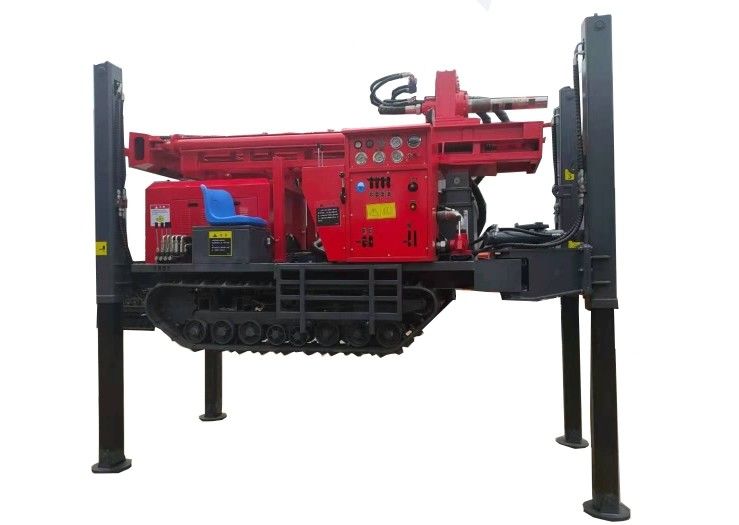

Product Images
