Pneumatic Crawler Water Well Drilling Rig With Hydraulic Tower

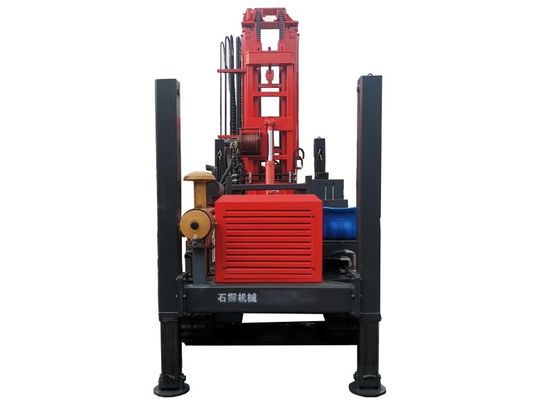

Large Image : Pneumatic Crawler Water Well Drilling Rig With Hydraulic Tower

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Model Number:	ST-180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	customized quotation list
Packaging Details:	wooden box
Delivery Time:	10 -15 days after payment
Payment Terms:	TT,western union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Drilling Rod Length:	3m	Drilling Depth:	180m
Drilling Diameter:	105-305mm	Walking Speed:	2.5km/h
Working Wind Pressure:	1.25-3.5 Mpa	Overall Dimension:	3.41.82.3m
Climbing Speed:	20m/min	Footage Efficiency:	10-35m/h
Engine:	Xidong 55 KW	Drill Pipe Diameter:	76mm
Highlight:	Pneumatic Crawler Water Well Drilling Rig , Crawler Water Well Drilling Rig , Hydraulic Tower Pneumatic Drilling Rig

Pneumatic Crawler Water Well Drilling Rig With Hydraulic Tower

Key Specifications

Drilling Depth 180m

Drilling Diameter 105-305mm

Drill Pipe Length 3m

Engine Power Xidong 55 KW

Walking Speed 2.5km/h

Working Wind Pressure 1.25-3.5 Mpa

Overall Dimensions 3.4*1.8*2.3m

Weight 4.5T

Product Overview

The ST 180 water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment designed for industrial and civil drilling applications, including geothermal drilling. Its compact structure, fast advancing capability, and mobility make it suitable for various terrains, particularly mountainous and rocky strata for water intake projects.

Technical Parameters

Shaft Pressure 4T

Lifting Force 16T

Lifting Speed 20m/min

Fast Forward Speed 40m/min

Maximum Turning Torque 5900

Maximum Rotation Speed 85/170r/min

Air Consumption 16-55m³/min

Drilling Method Top drive hydraulic rotation and propulsion, DTH impactor or Mud drilling

Support & Services

We provide comprehensive technical support and services to ensure optimal performance of your pneumatic drilling rig. Our experienced technicians offer assistance with installation, operation, and maintenance, along with operator training. Services include regular maintenance inspections, repairs, part replacements, and efficiency upgrades to maximize productivity.

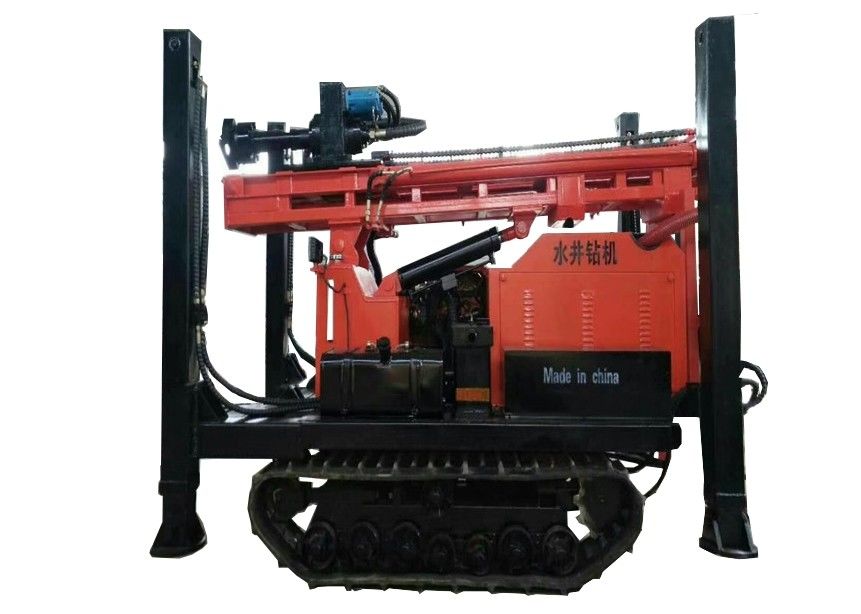

Product Gallery
