6.5M Hydraulic Crawler Pneumatic Drill Rig Machine With Air Compressor

6.5M Hydraulic Crawler Pneumatic Drill Rig Machine With Air Compressor

Key Specifications

Drilling Depth	260m
Drilling Hole Diameter	105-305mm
Working Wind Pressure	1.25-3.5Mpa
Gas Consumption	16-55m³/min
Drill Pipe Length	3m
Drill Pipe Diameter	76mm
Axial Pressure	4T
Lifting Force	18T
Lifting Speed	20m/min
Fast Forward Speed	40m/min
Maximum Rotation Speed	85/170r/min
Engine	Diesel engine 73KW
Overall Dimension	4m×1.8m×2.3m
Weight	6T

Product Overview

The ST 260 water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment designed for industrial and civil applications. Its compact structure, fast advancing capability, and mobility make it ideal for various drilling projects including geothermal drilling and water extraction in mountainous and rocky terrains.

Technical Highlights

• Maximum drilling depth: 260 meters
• Drilling diameter range: 105-305mm
• Powerful Xidong 73KW diesel engine
• Efficient footage rate: 10-35m/h
• Robust construction with 4T axial pressure capacity
• Mobile design with 2.5km/h walking speed

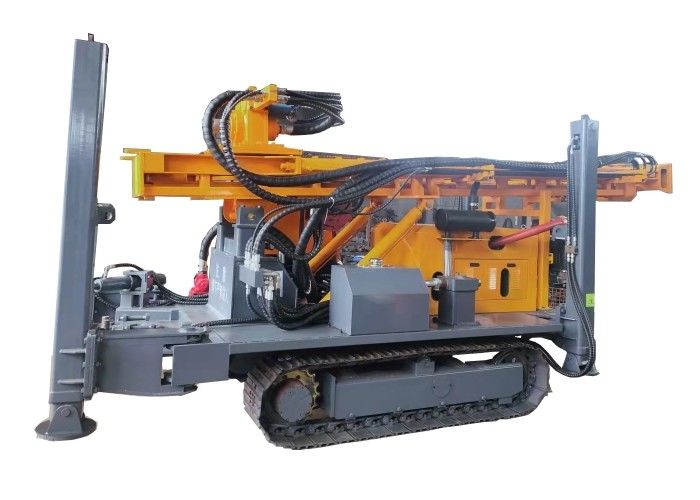

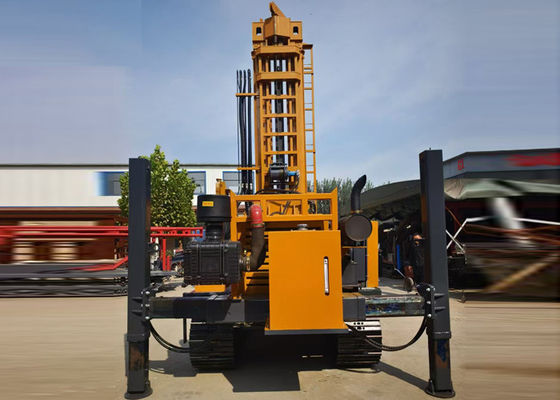

Product Images

Support & Services

Our pneumatic drilling rig comes with comprehensive support to ensure optimal performance:

• Expert technical assistance and troubleshooting
• Maintenance and repair services
• Operator training and safety resources
• Customization options for specific project needs
• Availability of genuine spare parts and accessories
