Large Torque Pneumatic Borehole Drilling Machine Truck/Track Walking

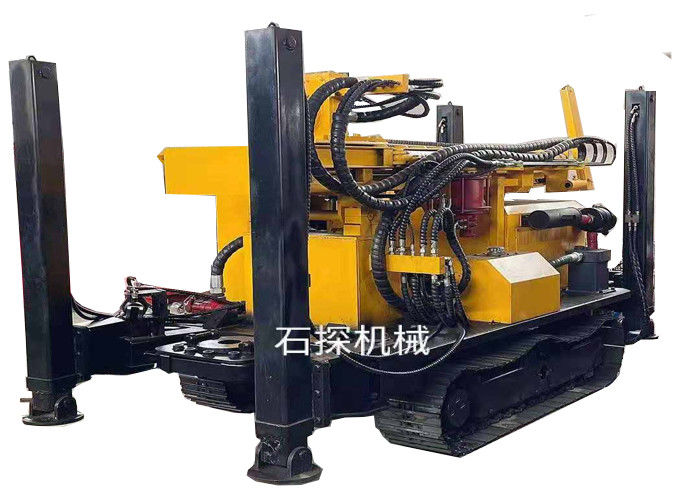

Large Image : Large Torque Pneumatic Borehole Drilling Machine Truck/Track Walking

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST260

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	customized quotation list
Packaging Details:	wooden box
Delivery Time:	7 days after payment
Payment Terms:	TT,Western union
Supply Ability:	1000 or 2000 set per year

Contact Now

Detailed Product Description

Drilling Depth:	260m	Lifting Force Of Small Auxiliary Winch:	1.2T
Climbing Degree:	30	Engine:	Xidong 73KW
Walking Speed:	2.5km/h	Application:	Water Conservancy, Agriculture, Construction And Other Scenes
Maximum Rotation Speed:	85/170r/min	Footage Efficiency:	10-35m/h
Highlight:	Pneumatic Water Well Drilling Rig , Steel Track Water Well Drilling Rig , Large Torque water well drilling equipment

Large Torque Pneumatic Borehole Drilling Machine Truck/Track Walking

Key Specifications

Attribute	Value
Drilling Depth	260m
Lifting force of small auxiliary winch	1.2T
Climbing degree	30
Engine	Xidong 73KW
Walking speed	2.5km/h
Application	Water Conservancy, Agriculture, Construction And Other Scenes
Maximum rotation speed	85/170r/min
Footage efficiency	10-35m/h

Product Overview

The ST 260 water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, primarily designed for industrial and civil drilling applications including geothermal drilling. Its compact structure, fast advancing capability, and excellent mobility make it particularly suitable for water intake projects in mountainous and rocky terrains.

Key Features

Drilling depth: 260m
Drilling diameter range: 105-305mm
Powerful XIDONG 73Kw engine
Competitive pricing structure
Customization options available
Comprehensive video instructions and installation support
Professional after-sales service team

Technical Parameters

Parameter	Value
Product Name	ST260 Water Well Drilling Rig
Maximum Turning Torque	6900
Fast Forward Speed	40m/min
Lifting Speed	20m/min

Applications

This advanced drilling machine combines powerful performance with cutting-edge technology for efficient operations across multiple industries. Its versatile design makes it ideal for:
