Product Description:

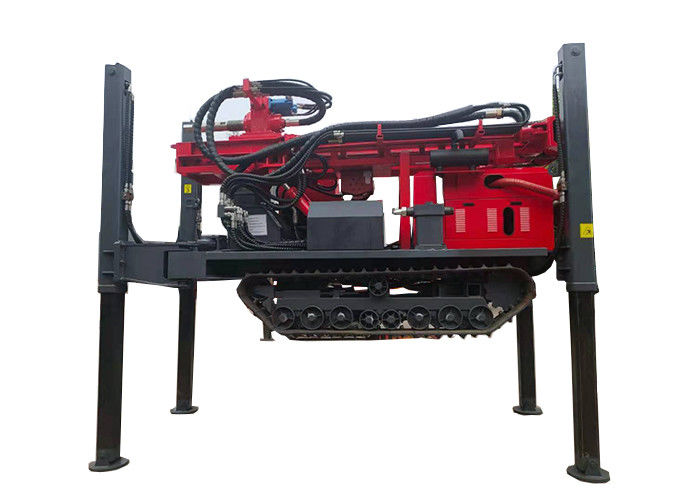

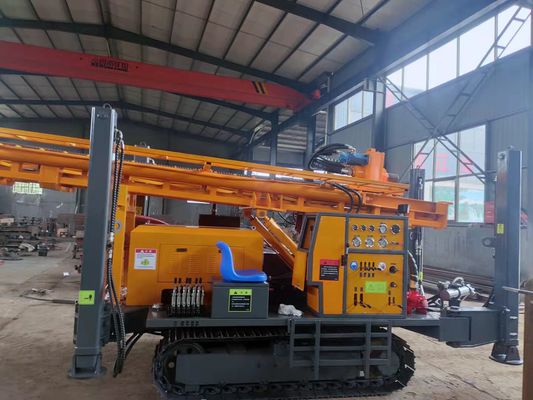

ST 260 water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and
civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc..
It is especially suitable for water intake in mountainous and rocky strata.
Features:
- Drilling depth: 260m
- Drilling diameter: 105-305mm
- Engine Power: XIDONG73Kw
- Competive Price
- Support customization
- Video Instrcution and Installation
- Professtional After-Sales Team
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
ST260 Drilling Rig |
| Drilling Diameter |
105-300mm |
| Lifting Force |
18T |
| Application |
Water Conservancy, Agriculture, Construction And Other Scenes |
| Lifting Force of Small Auxiliary Winch |
1.2T |
| Drilling Rod |
Φ76mm |
| Footage Efficiency |
10-35m/h |
| Walking Speed |
2.5km/h |
| Engine |
Xidong 73KW |
| Drilling Depth |
260m |
| Overall Dimension |
4m×1.8m×2.3m |
| Product Type |
Groundwater Drilling Rig |
Applications:
The water well drilling machine It is equipped with advanced technology and a powerful engine, ensuring efficient and speedy drilling operations.,it is suitable for various application occasions and scenarios, making it a versatile drilling rig equipment. The drilling machine can be used for drilling water wells, geothermal wells, and other geological exploration projects. It is also suitable for drilling in construction sites, mining areas, and agricultural areas.
In conclusion, the Shitan ST260 crawler mounted water well drilling rig is a high-quality and reliable drilling machine suitable for various drilling scenarios. With its versatile applications and scenarios, it is an essential drilling rig equipment for various industries.
Support and Services:
The Water Well Drilling Rig product technical support and services include:
- Installation and setup assistance
- Equipment maintenance and repair services
- Operator training and support
- Remote monitoring and diagnostic services
- Technical support and troubleshooting
- Parts replacement and supply services
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
