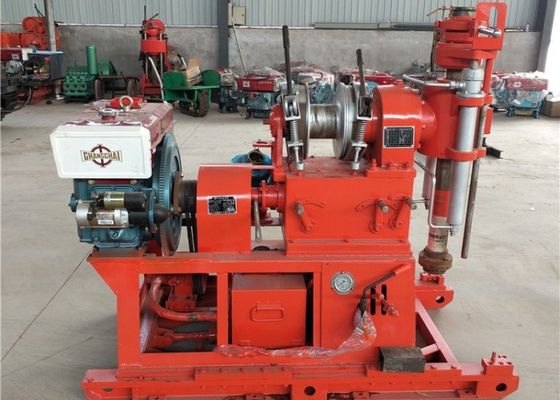

GY200 Engineering Drilling Rig For Mining Sampling Collection in Rocky Layer
Product Description:
This drilling rig is suitable for drilling holes in solid mineral deposits, engineering geological surveys, and various concrete structure inspection holes.The speed range is wide and equipped with a high-speed gear, and diamond, hard alloy, and steel particle drill bits can be selected for drilling according to different geological conditions.
Product Parameter:
| Basic Parameter |
| Drilling depth |
60m |
225m |
295m |
| Drilling diameter |
300mm |
76mm |
46mm |
| Drill pipe diameter |
50 |
|
42 |
| Spindle turnable angle |
0°~ 360° |
| Weight without engine |
750 kg |
| Dimension (length * width * height) |
1820 * 980 * 1400 mm |
| Rotary Table |
| Rotate speed |
900, 475, 388, 205, 157, 68 r/min |
| Maximum torque |
2000 N*m |
| Feeding travel |
400 mm |
| Maximum cylinder feeding force |
29 KN |
| Maximum cylinder lifting force |
39 KN |
| Lifter |
| Lifting capacity |
30 KN |
| Bobbin line speed, 2nd layer |
0.27, 0.64, 0.83, 1.58, 1.64 m/s |
| Bobbin diameter |
135 mm |
| Rope diameter |
12.5 mm |
| Rope capacity |
30 m |
| Oil pump |
| Displacement |
20 Ml/R |
| Rated speed |
2500 r/min |
| Rated pressure |
20 MPa |
| Maximum pressure |
25 MPa |
| Power |
| Rated power |
14 KW (Y160-4 electric), 14.7 KW (ZS-1115 diesel) |
| Rated speed |
1460 r/min (Y160-4 electric), 2200 r/min (ZS-1115 diesel) |
| Weight |
144 kg (Y160-4 electric), 190 kg (ZS-1110 diesel) |
| Frame |
| Type |
Sliding type with base frame |
| Movable travel of drill |
400 mm |
| Distance between drill and hole-opening |
270 mm |
Product Characteristics:
1. Equipped with an automatic hydraulic feeding mechanism, it improves drilling efficiency and reduces manual labor for workers;
2. Using a ball card clamping mechanism instead of a chuck, it can implement non-stop rod tilting, which is easy to operate, safe and reliable;

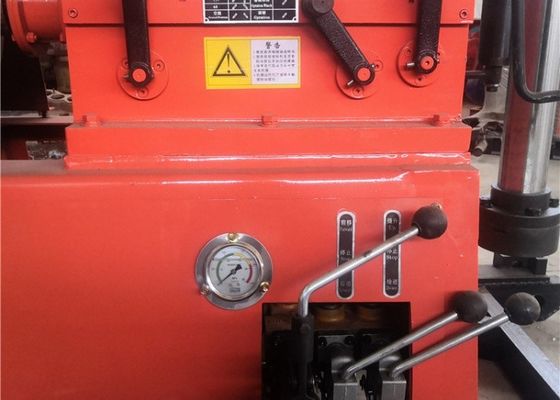

3. Equipped with a bottom pressure gauge to indicate pressure, making it easy to grasp the situation inside the hole;
4. Centralized operation of the handle is convenient;
5. Compact structure, the drilling rig, water pump, and diesel engine are all installed on a single track chassis, occupying a small construction site area;
6. Lightweight, highly decomposable, easy to relocate, suitable for work in plains or mountainous areas
Pre operation inspection:
Before using GY-200 drilling rig, it is necessary to check whether all components are intact, including drill rods, drill bits, transmission devices, etc., to ensure that there is no damage or looseness. At the same time, check whether the lubricating oil and coolant are sufficient to ensure that the equipment is in good condition
