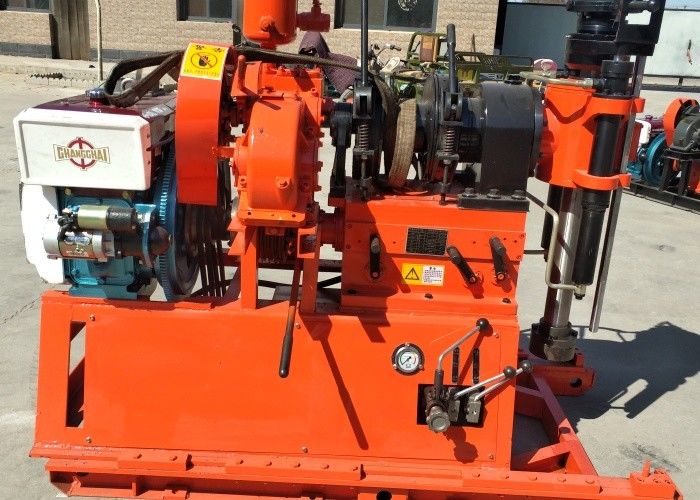

300 Meters Depth Capacity GY 200 Portable Hydraulic Engineering Drilling Rig
Product Description:
GY 200 drilling rig is for engineering geological surveys, and various concrete structure inspection holes.The speed range is wide and equipped with a high-speed gear, and diamond, hard alloy, and steel particle drill bits can be selected for drilling according to different geological conditions.
With 300 meters drilling depth and 300mm hole diameter ,fast drilling speed .
The GY-200 drilling rig is a highly versatile, cost-effective, and reliable solution for small to medium-scale drilling projects. Its compact design, ease of operation, and adaptability make it a popular choice for geological exploration, water well drilling, and other applications. Its durability and low maintenance requirements further enhance its appeal for use in remote or challenging environments.
Product Parameter:
| Basic Parameter |
| Drilling depth |
60m |
225m |
295m |
| Drilling diameter |
300mm |
76mm |
46mm |
| Drill pipe diameter |
50 |
|
42 |
| Spindle turnable angle |
0°~ 360° |
| Weight without engine |
750 kg |
| Dimension (length * width * height) |
1820 * 980 * 1400 mm |
| Rotary Table |
| Rotate speed |
900, 475, 388, 205, 157, 68 r/min |
| Maximum torque |
2000 N*m |
| Feeding travel |
400 mm |
| Maximum cylinder feeding force |
29 KN |
| Maximum cylinder lifting force |
39 KN |
| Lifter |
| Lifting capacity |
30 KN |
| Bobbin line speed, 2nd layer |
0.27, 0.64, 0.83, 1.58, 1.64 m/s |
| Bobbin diameter |
135 mm |
| Rope diameter |
12.5 mm |
| Rope capacity |
30 m |
| Oil pump |
| Displacement |
20 Ml/R |
| Rated speed |
2500 r/min |
| Rated pressure |
20 MPa |
| Maximum pressure |
25 MPa |
| Power |
| Rated power |
14 KW (Y160-4 electric), 14.7 KW (ZS-1115 diesel) |
| Rated speed |
1460 r/min (Y160-4 electric), 2200 r/min (ZS-1115 diesel) |
| Weight |
144 kg (Y160-4 electric), 190 kg (ZS-1110 diesel) |
| Frame |
| Type |
Sliding type with base frame |
| Movable travel of drill |
400 mm |
| Distance between drill and hole-opening |
270 mm |
Product Characteristics:
1. Equipped with an automatic hydraulic feeding mechanism, it improves drilling efficiency and reduces manual labor for workers;
2. Using a ball card clamping mechanism instead of a chuck, it can implement non-stop rod tilting, which is easy to operate, safe and reliable;
3. Equipped with a bottom pressure gauge to indicate pressure, making it easy to grasp the situation inside the hole;
4. Centralized operation of the handle is convenient;
5. Compact structure, the drilling rig, water pump, and diesel engine are all installed on a single track chassis, occupying a small construction site area;
6. Lightweight, highly decomposable, easy to relocate, suitable for work in plains or mountainous areas
Safety operating procedures:
During the operation process, it is necessary to strictly follow the safety operating procedures. Operators should wear necessary protective equipment, such as safety helmets, protective goggles, etc. When operating, pay attention to the surrounding environment, avoid collisions and squeezing, and ensure that the work area is free of debris interference
