150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower

150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower
150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower
video play

Large Image :  150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Product Name: ST 200 Pneumatic Drilling Rig Model Number: Crawler-mounted Drilling Rig
Machine Type: Drilling Equipment Certification: ISO
Hole Diameter: Customized Drilling Depths: 200 Meters
Condition: New Weight: 8.9 T
Warranty: 12 Months Rotation Torque: 7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption: 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min Color: Yellow,Red And Blue
Highlight:

Horsepower Pneumatic Drilling Rig

,

350mm Diameter Pneumatic Drilling Rig

ST 200 Pneumatic Drilling Rig - 200 Meters Depth Capability
Product Overview

The ST 200 Pneumatic Drilling Rig is a high-efficiency, multifunctional drilling equipment designed for deep drilling applications up to 200 meters. Powered by a pneumatic system, this rig offers exceptional drilling capabilities and adaptability, ensuring stable performance in complex geological conditions including mountain and rock formations.

Key Specifications
Attribute Value
Model Number ST 200 (crawler-mounted)
Drilling Depth 200 meters
Hole Diameter Customizable (90-200mm standard)
Rotation Torque 7500Nm, 983 N.m, 4200N.m
Air Consumption 16-30 M3/min (adjustable)
Weight 8.9 T (5800KG)
Dimensions (L×W×H) 6400×2250×2700 mm
Warranty 12 months
Certification ISO9000
Technical Features
  • Deep Drilling Capability: Designed for drilling depths up to 200 meters in various geological conditions
  • Pneumatic Power System: Energy-efficient operation with adjustable air consumption (16-30 M3/min)
  • Versatile Applications: Suitable for water wells, irrigation systems, ground source heating, and geological surveys
  • Stable Performance: High-strength chassis and support system ensures operational stability
  • Advanced Control: Automated systems reduce manual intervention and improve efficiency
  • Mobility: Crawler-mounted design with traveling speed of 0-2.5km/h for easy positioning
Operational Considerations

Rainy Conditions Operation: The ST 200 is designed for all-weather operation with proper precautions:

  • Waterproof covers for electrical components and control panels
  • Sealed critical components to prevent water ingress
  • Waterproof lubrication for moving parts
  • Reduced operational speed for enhanced control
  • Regular inspections for water damage prevention
Product Gallery

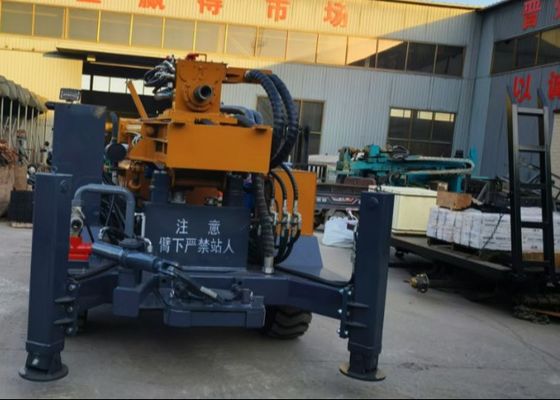

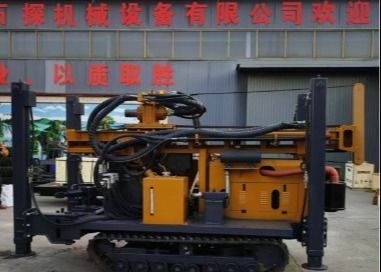

150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower 0 150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower 1 150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower 2 150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower 3 150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower 4 150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower 5 150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower 6 150-200 Meters Depth Pneumatic Drilling Rig With 350mm Diameter and Horsepower 7
