ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling

ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling
ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling
video play

Large Image :  ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Product Name: ST 180 Pneumatic Drilling Rig Model Number: Crawler-mounted Drilling Rig
Machine Type: Drilling Equipment Certification: ISO
Hole Diameter: Customized Drilling Depths: 180meters
Condition: New Weight: 8.9 T
Warranty: 12 Months Rotation Torque: 7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption: 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min Color: Yellow,Red And Blue
Highlight:

Deep Underground Pneumatic Drilling Rig

,

Industrial Pneumatic Drilling Rig

,

ST 180 Pneumatic Drilling Rig

ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling
Product Overview

The ST 180 Pneumatic Drilling Rig is a high-efficiency, crawler-mounted drilling machine designed for constructing water wells in various terrains. This ISO-certified equipment offers reliable performance with drilling depths up to 180 meters, making it ideal for both residential and commercial water well projects.

Key Specifications
Attribute Value
Model Number crawler-mounted drilling rig
Certification ISO
Hole Diameter Customized (90-180mm standard)
Drilling Depth 180 meters
Weight 8.9 T (5800KG)
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m
Air Consumption 16-30 M3/min (13-20m3/min standard)
Available Colors Yellow, Red and Blue
Technical Specifications
Model Shitan ST 180
Condition New
Power Source Diesel
Dimensions (L×W×H) 6400MM × 2250MM × 2700MM
Rotary Speed 0-90rpm
DTH K40
Drilling Rods 76×2m + 76×3m
Travelling Speed 0-2.5km/h
Product Features
  • Pneumatic Operation: No electricity required, ideal for remote locations with limited power supply
  • High Efficiency: Powerful performance in hard rock and complex geological formations
  • Deep Drilling Capability: Maximum depth of 180 meters for demanding water well projects
  • Portable Design: Compact structure for easy transportation and field installation
  • User-Friendly: Automated controls with intuitive interface reduce operator fatigue
  • Versatile Performance: Effective in various conditions including clay, sand, and rock layers
Applications
  • Water well drilling for agricultural irrigation and domestic water supply
  • Geological exploration for mineral resources and groundwater
  • Engineering surveys for construction and infrastructure projects

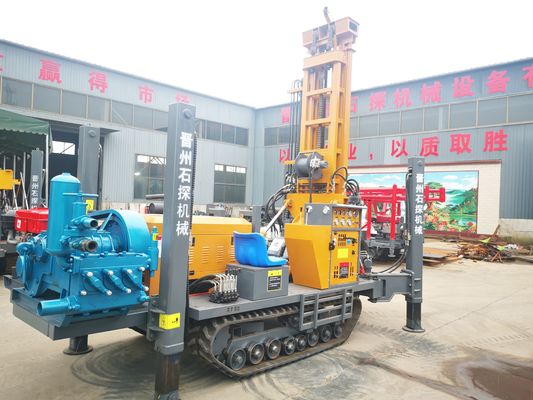

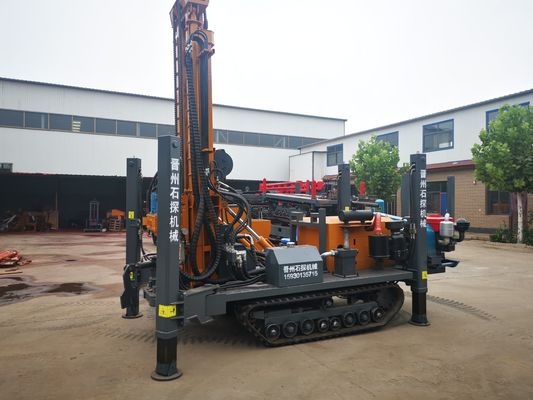

Product Images
ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling 0 ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling 1 ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling 2 ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling 3 ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling 4 ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling 5 ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling 6 ST 180 Water Borehole Pneumatic Drilling Rig For Deep Underground Industrial Drilling 7
