160 Meters Depth Pneumatic Drilling Rig ST 180 For Civil Industry Borehole

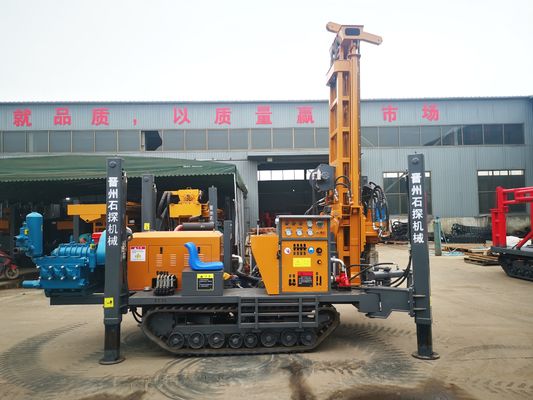

Large Image : 160 Meters Depth Pneumatic Drilling Rig ST 180 For Civil Industry Borehole

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 180 Pneumatic Drilling Rig	Model Number:	Crawler-mounted Drilling Rig
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	180meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	Color:	Yellow,Red And Blue
Highlight:	Civil Industry Pneumatic Drilling Rig , 160 Meters Depth Pneumatic Drilling Rig , Borehole Pneumatic Drilling Rig

160 Meters Depth Pneumatic Drilling Rig ST 180 For Civil Industry Borehole

Product Specifications

Attribute	Value
Product Name	ST 180 Pneumatic Drilling Rig
Model Number	crawler-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	180 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
Color	Yellow, Red and Blue

Product Description

The ST 180 Pneumatic Drilling Rig is a high-efficiency drilling machine designed for constructing water wells in various terrains. Powered by a pneumatic system, it offers reliable performance and is capable of reaching depths of up to 180 meters.

This drill is equipped with a high-power motor and features large-diameter drilling capability, making it suitable for both residential and commercial water well projects. Its robust construction ensures durability, while its user-friendly design allows for easy operation and maintenance. Ideal for areas with limited access to electricity, this pneumatic drill is a versatile and dependable solution for water well drilling needs.

Technical Specifications

Model: Shitan ST 180
Condition: New
Drilling Depth: 180 Meters
Power: Diesel
Origin: China
Brand Name: Shitan
Usage: Water Well Drilling
Dimensions (L×W×H): 6400MM × 2250MM × 2700MM
Weight: 5800KG
Certification: ISO9000
Warranty: 1 YEAR
Marketing Type: Large Pneumatic
Hole Diameter: 90-180mm
Depth: 25M
Rotary speed: 0-90rpm
DTH: K40
Drilling Rods: 76×2m + 76×3m
Air consumption: 13-20m3/min
Travelling speed: 0-2.5km/h

Working Principles

Pneumatic Drive: Compressed air drives the rotation and impact of the drill bit, enabling efficient drilling.
Drill Rod System: Multiple sections of drill rods are connected to gradually penetrate the ground to the desired depth.
Debris Removal System: Uses compressed air or mud to remove drill cuttings, keeping the borehole clean.
Control System: A control console adjusts drilling parameters, such as rotation speed and impact force, ensuring drilling efficiency and quality.

Product Applications

Water Well Drilling: Used for agricultural irrigation, domestic water supply, etc.
Geological Exploration: Applied in mineral resource and groundwater exploration.
Engineering Surveys: Used for geological investigations in construction, bridges, and other foundational projects.

Maintenance and Care

Regular Inspections: Check key components such as the pneumatic system, drill rods, and drill bits.
Lubrication: Regularly lubricate moving parts to reduce wear and tear.
Cleaning: Clean the equipment after use to prevent corrosion.

Safety Precautions

Operator Training: Operators must undergo professional training.
Protective Gear: Wear safety helmets, gloves, and other protective equipment.
Environmental Checks: Inspect the surrounding environment before operation to ensure safety.

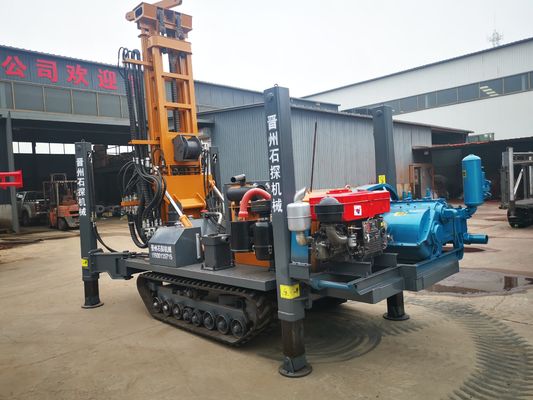

Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
