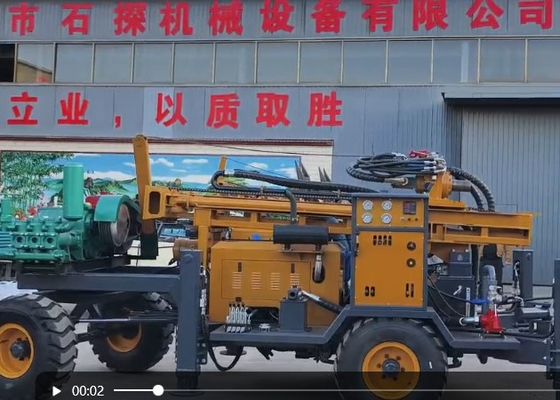

With Air Compressor Pneumatic Drilling Rig ST 200 For Rocky Layer Blasting Borehole

Large Image : With Air Compressor Pneumatic Drilling Rig ST 200 For Rocky Layer Blasting Borehole

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	ST 200 Pneumatic Drilling Rig	Model Number:	Crawler-mounted Drilling Rig
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	Color:	Yellow,Red And Blue
Highlight:	Air Compressor Pneumatic Drilling Rig , Blasting Borehole Pneumatic Drilling Rig , Rocky Layer Pneumatic Drilling Rig

ST 200 Pneumatic Drilling Rig for Rocky Layer Blasting Borehole

Key Features

Designed for deep well drilling up to 200 meters
Pneumatic drive system for powerful performance
Suitable for hydrogeological exploration and water well drilling
Excellent adaptability for complex geological conditions
ISO certified with 12-month warranty

Product Specifications

Attribute	Value
Model Number	Crawler-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized (90-300mm)
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m
Air Consumption	16-30 M3/min, 20-100m3/min
Color Options	Yellow, Red and Blue

Technical Details

Power: Diesel

Dimensions: 6400MM × 2250MM × 2700MM

Weight: 5800KG

Rotary Speed: 0-90rpm

Travelling Speed: 0-2.5km/h

Drilling Rods: 76×2m + 76×3m

Equipment Components

Pneumatic System: Provides power to drive the rotation and impact of the drill bit
Drill Rod System: Multiple sections of drill rods for gradual penetration
Drill Bit: Various types available based on geological conditions
Control System: Adjusts drilling parameters like rotation speed and impact force
Debris Removal System: Uses compressed air or mud to keep borehole clean

Safety Precautions
